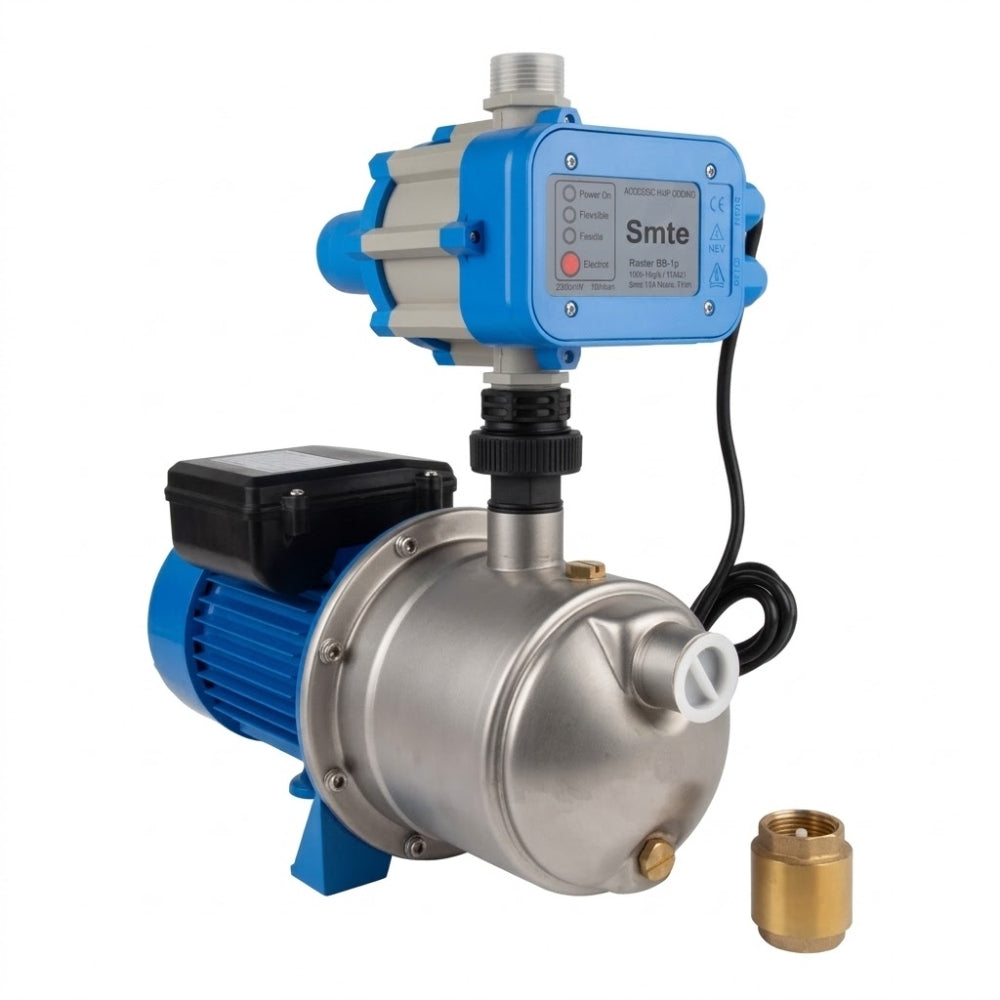

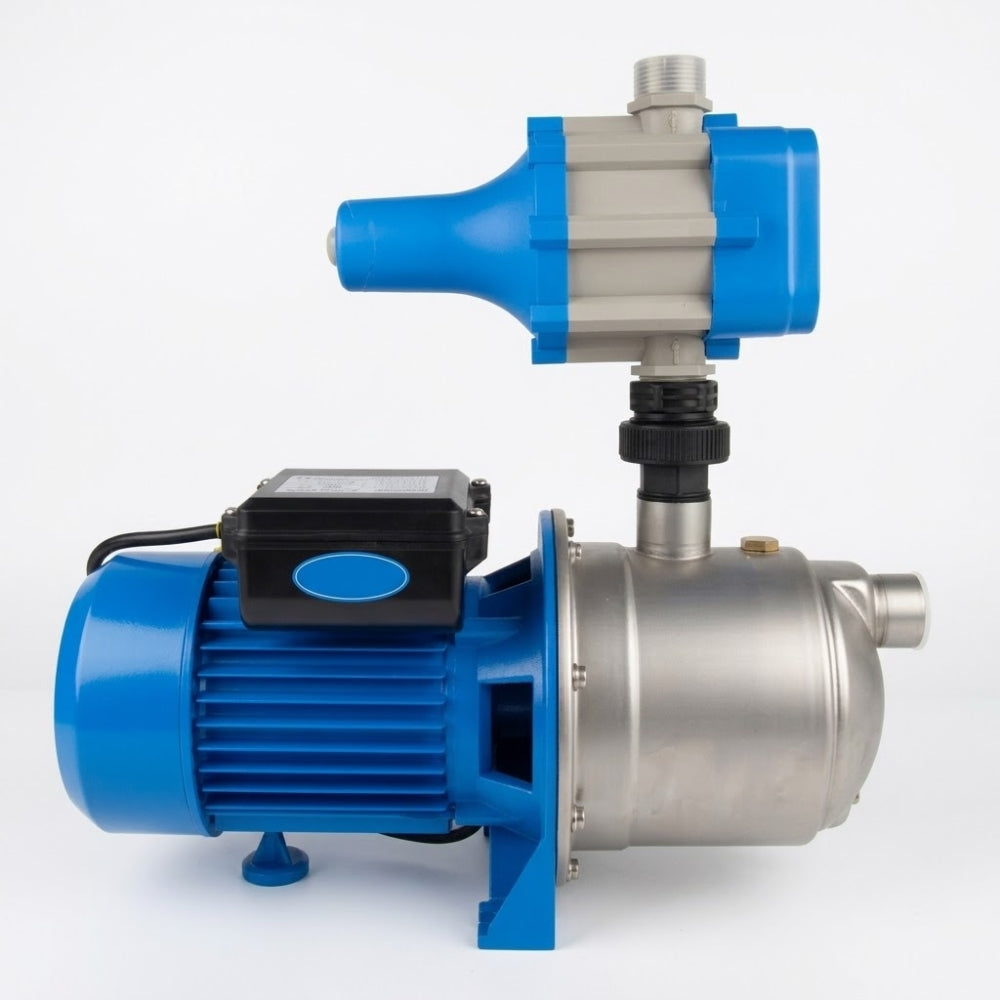

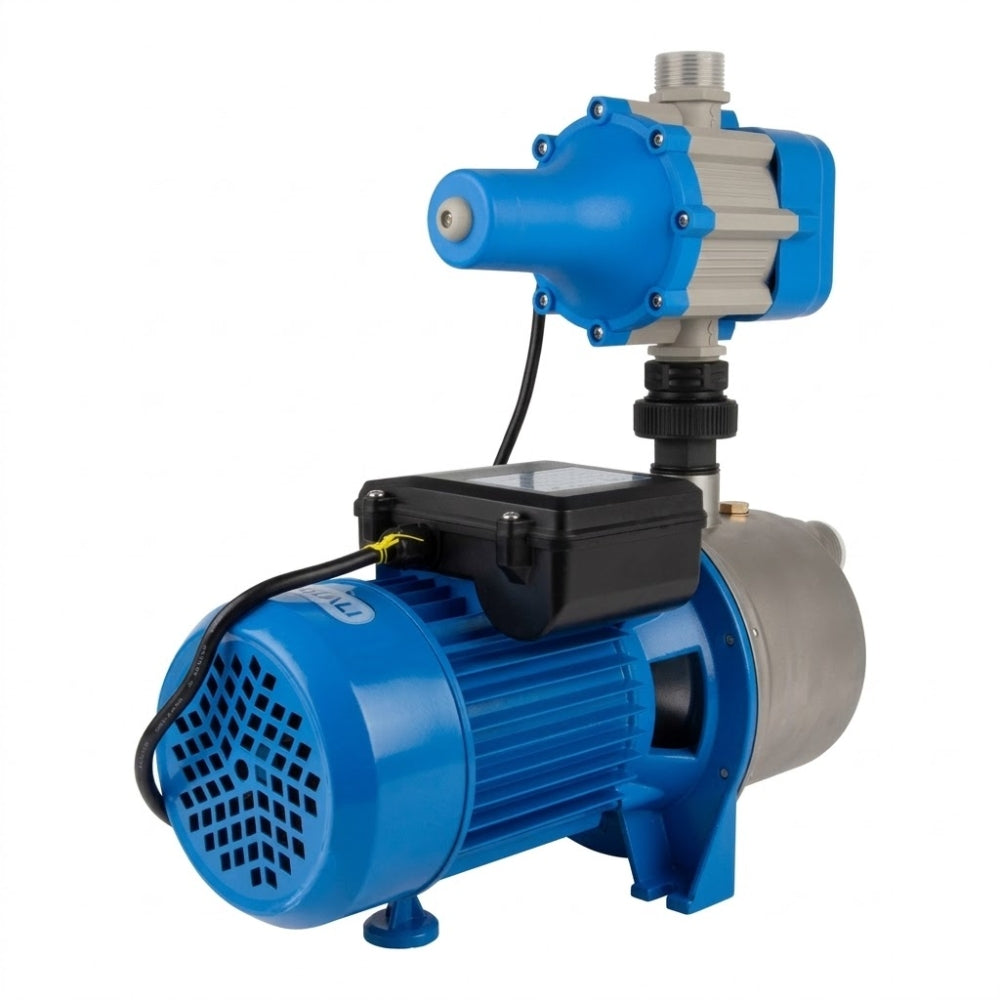

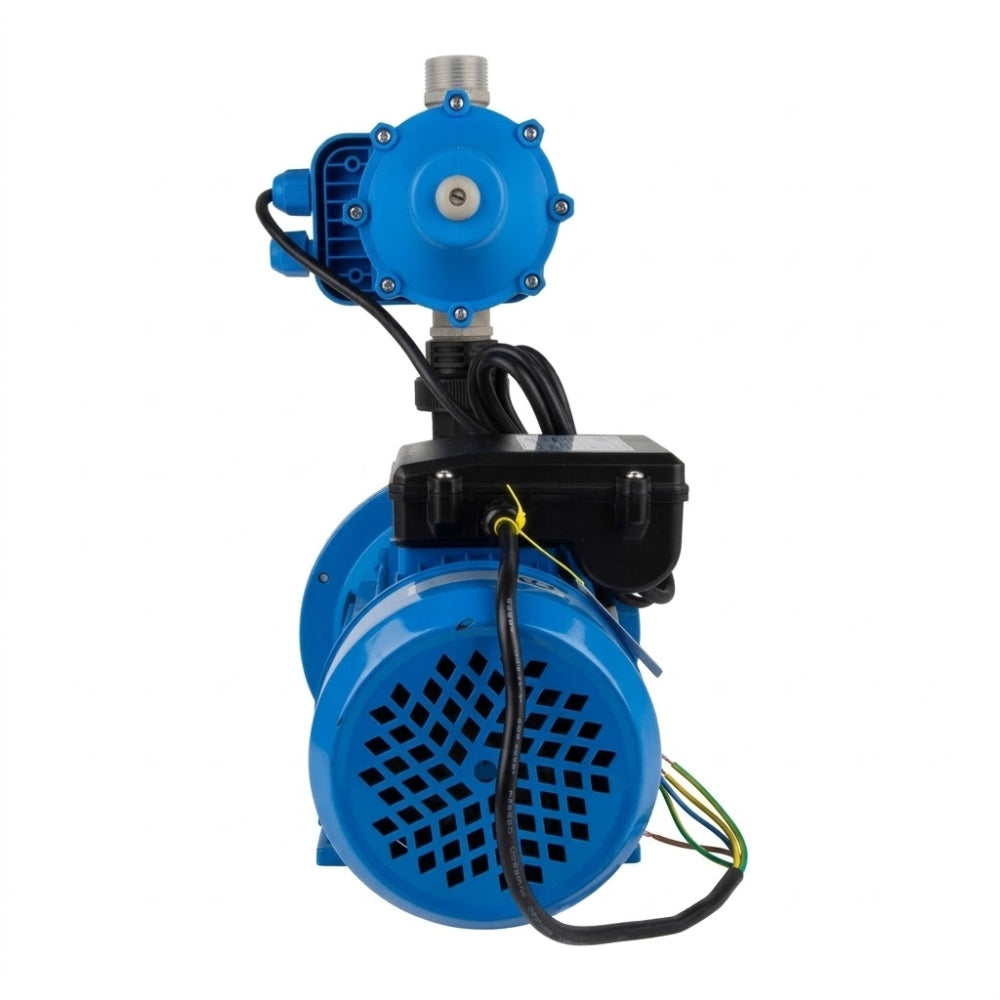

Smte 0.75kW Stainless Steel Automatic Centrifugal Jet Water Pump with DSK-2 Flow Switch (1.0HP, 230V, 48m Head, 25mm)

Upgrade your water infrastructure with the Smte 0.75kW Stainless Steel Automatic Centrifugal Pump System, specifically engineered for household civil distribution, light industrial tasks, and domestic pressure boosting. Constructed with a heavy-duty stainless steel wet end, this unit eliminates rust contamination and resists harsh conditions, providing clean, hygienic fluid delivery.

Driven by an efficient 750W motor, the pump achieves a maximum delivery head of 48 meters (4.8 Bar) and a maximum delivery volume of 3.0 m³/h (3,000 L/h). Its hydraulic profile is engineered with a flat performance curve, ensuring smooth, unfluctuating water delivery even under low flow rates. The mounted DSK-2 electronic controller senses water demand immediately, switching the pump on as taps open and powering down upon closure to maintain line stability. A brass non-return valve is included to maintain prime and guard against backflow.

Key Features
Hygienic Stainless Steel Housing: Durable stainless steel casing prevents rust and withstands up to 6 Bar working pressure.

Automatic Line Management: DSK-2 smart controller provides instant on/off switching and built-in run-dry safety.

Flat Hydraulic Curve: Maintains consistent output pressure without surging, even at low delivery volumes.

High Lift & Suction Depth: Reaches a 48m delivery head (4.8 Bar) with a self-priming suction lift capacity of up to 7 meters.

Brass Check Valve Included: Dedicated brass non-return valve ensures system priming is locked in for fast restarts.

Standard 25mm Ports: Universal 1-inch BSP connections allow drop-in installation with household and commercial water pipes.

Specifications
Brand: Smte

Product Type: Automatic Centrifugal Stainless Steel Booster Pump

Model Number: PASSSSK / DSK-2

Motor Power: 0.75 kW (1.0 HP)

Wattage: 750W

Voltage / Frequency: 230V AC (50 Hz, Single Phase)

Maximum Head (Hmax): 48 m (4.8 Bar)

Maximum Flow Rate (Qmax): 3.0 m³/h (50 L/min / 3,000 L/h)

Maximum Working Pressure: 6.0 Bar

Suction Lift: Up to 7 m

Inlet / Outlet Size: 25 mm (1 Inch) BSP

Housing Material: Stainless Steel (S/S)

Protection Class: IP44

Impeller Type: Single Impeller Centrifugal

Check Valve: Brass Non-Return Valve Included

Installation Requirement: Covered and well-ventilated environment

What’s Included
1 × Smte 0.75kW Stainless Steel Pump

1 × DSK-2 Automatic Flow Switch

1 × Solid Brass Non-Return Valve

1 × Pre-Wired Motor-to-Switch Harness

1 × Instruction Manual
