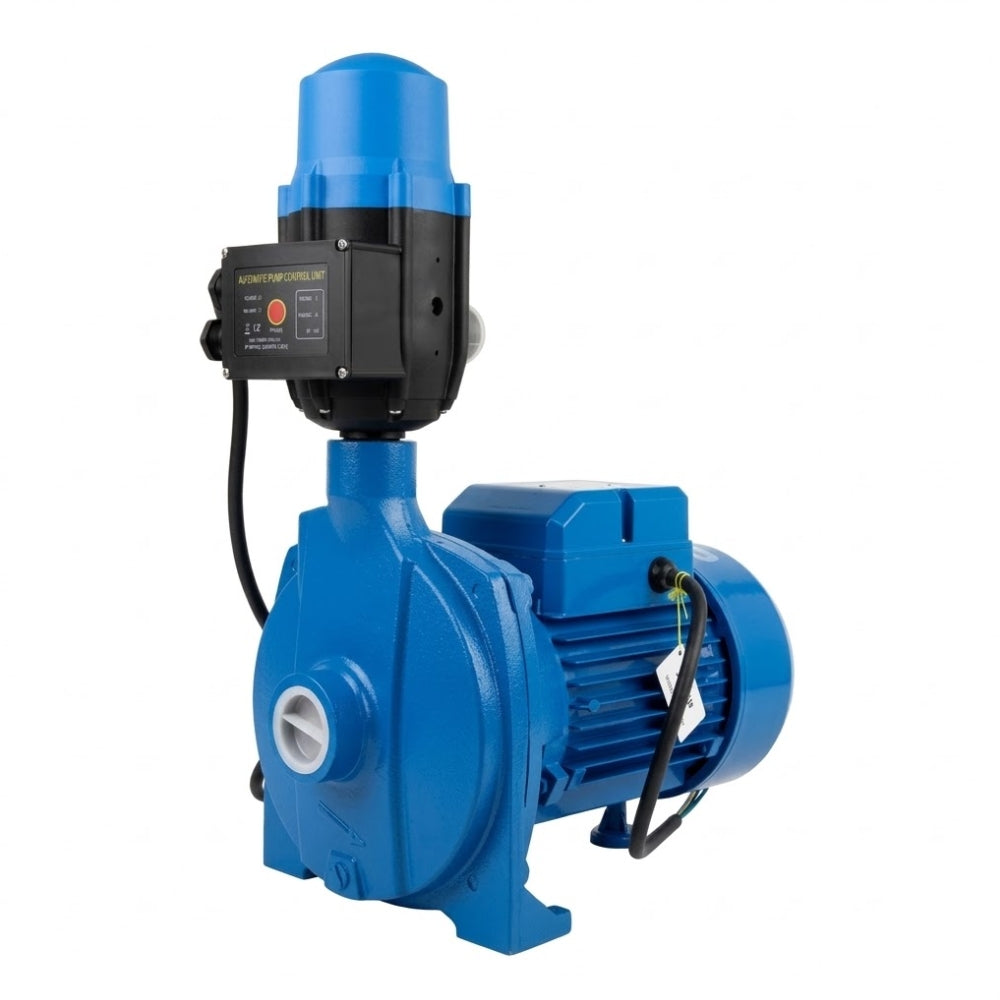

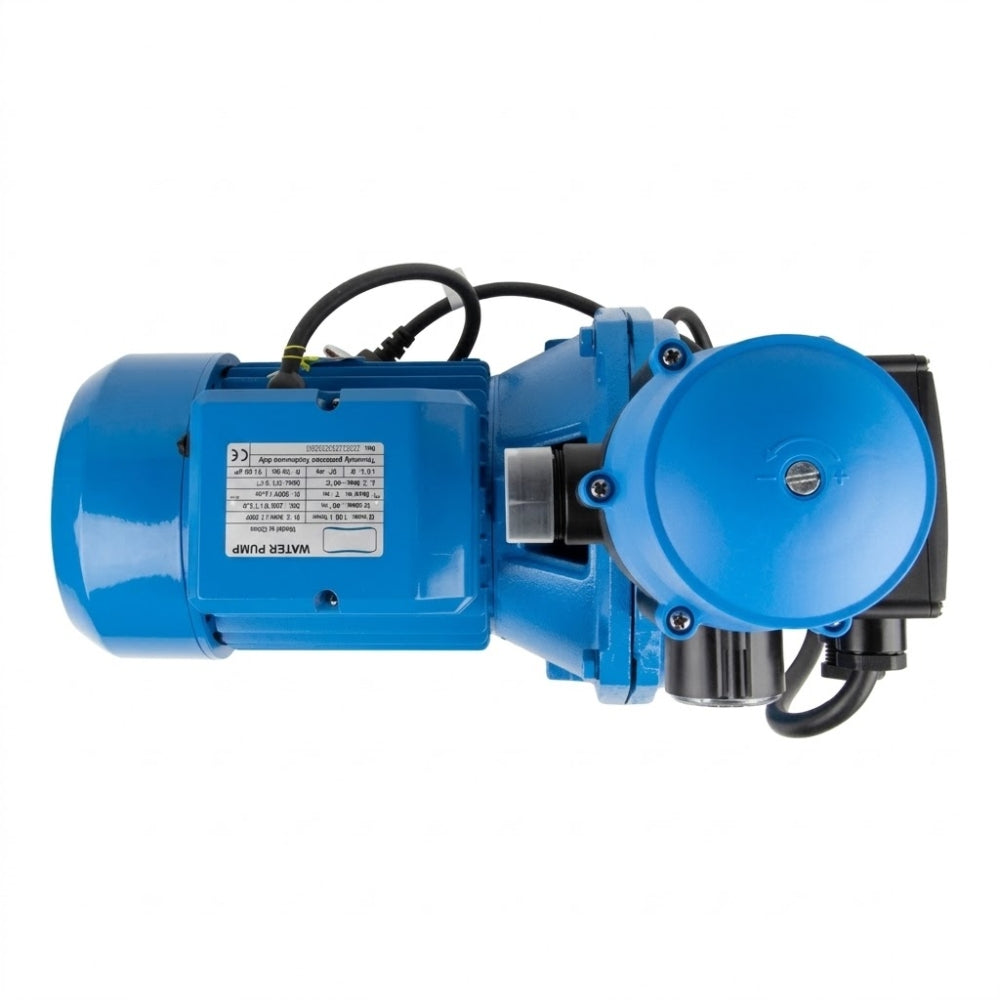

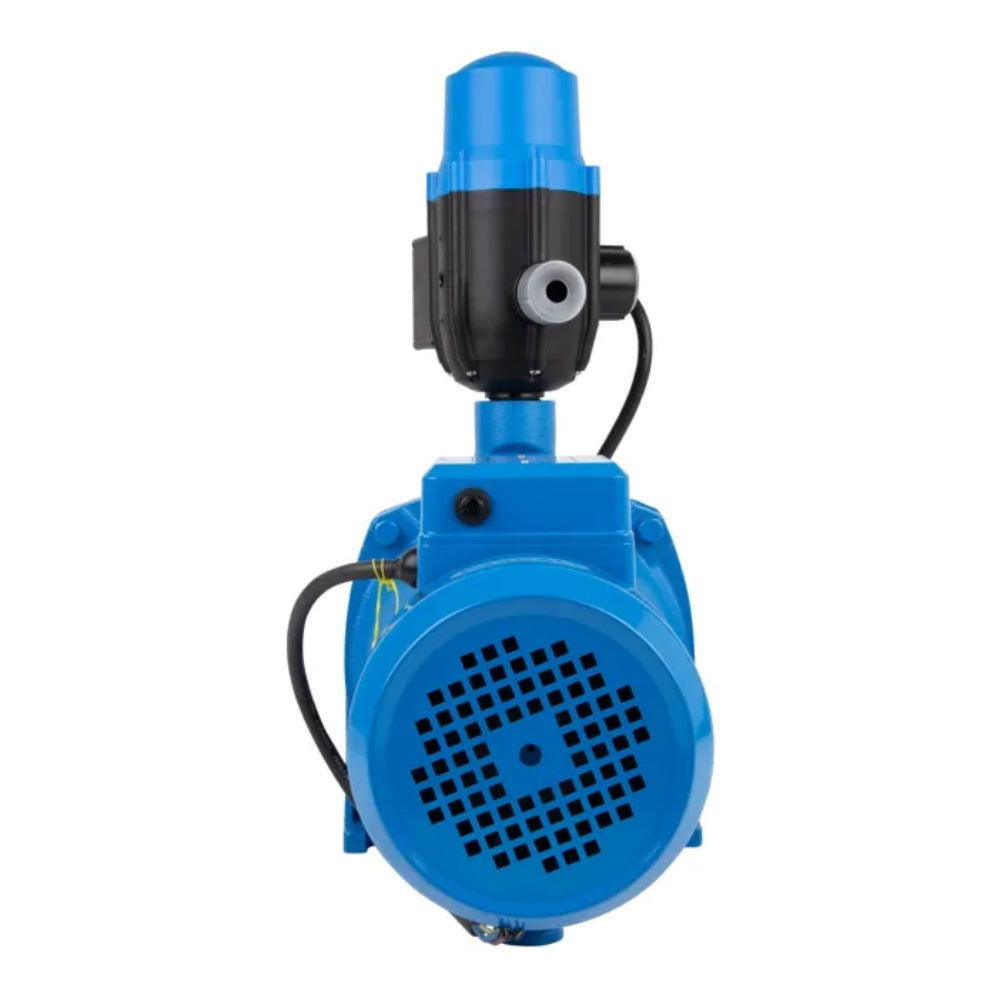

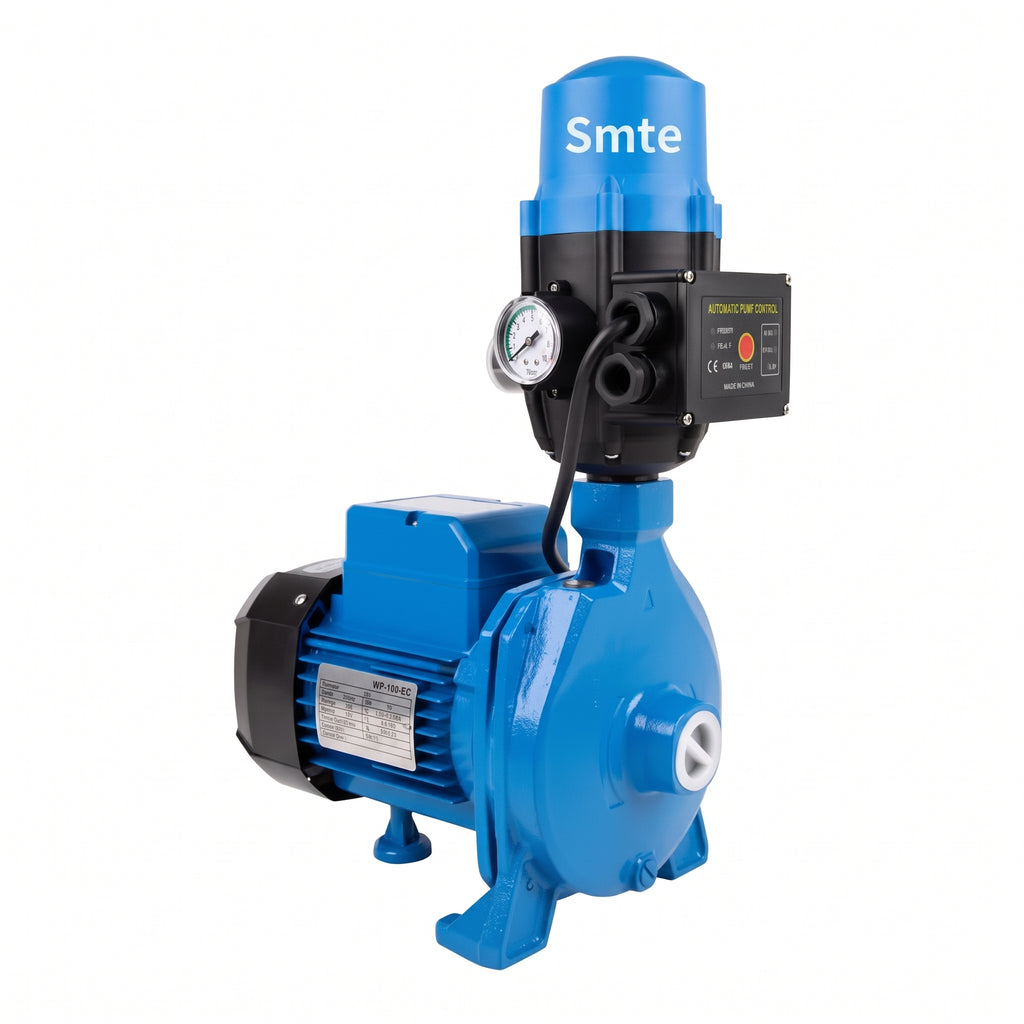

Smte 1.1kW Centrifugal Water Booster Pump with Automatic DSK-2 Controller (230V, 7.2 m³/h, 4.0 Bar, 25mm)

Maximize your water pressure and supply volume with the Smte 1.1kW Automatic Centrifugal Booster Pump System. Combining a powerful 1.5 HP motor with an intelligent DSK-2 electronic pressure controller, this unit provides a fully automated supply of pressurized water for high-demand residential, agricultural, civil, and light industrial applications.

Built with 100% pure copper motor windings, thermal overload protection, and a solid brass impeller, it is designed for demanding, continuous-duty operation. The system's flat performance curve guarantees smooth, consistent water pressure without sudden surges or drops. With a maximum throughput of 7.2 m³/h (120 L/min) and reaching up to 40 meters (4.0 Bar) of head pressure, this pump ensures dependable flow across multiple fixtures simultaneously.

Key Features
Full Flow Automation: The DSK-2 electronic unit starts the pump instantly upon opening any tap and shuts off when the flow stops.

Flat Hydraulic Curve: Delivers consistent, stabilized line pressure even under varying household or irrigation demands.

High-Throughput Pumping: Supplies up to 7.2 m³/h (120 L/min) with a maximum head reach of 40 meters (4.0 Bar).

Industrial Build Quality: Precision cast iron pump body, solid brass impeller, and 100% copper motor windings for extended service life.

Built-in Pressure Gauge: Front-facing pressure dial enables quick, at-a-glance pressure monitoring.

Universal 25mm Ports: Standard 1-inch (25mm) BSP threaded inlet and outlet ports for seamless plumbing connection.

Specifications
Brand: Smte

Product Type: Automatic Centrifugal Booster Water Pump

Model / SKU: CPM-170 + DSK-2 (PASCPM170C)

Motor Power: 1.1 kW (1.5 HP)

Wattage: 1100W

Voltage: 230V AC (50 Hz, Single Phase)

Rated Current: 7.5 A

Rated Speed: 2900 r.p.m.

Max Flow Rate (Qmax): 7.2 m³/h (120 L/min)

Max Head (Hmax): 40 m (4.0 Bar)

Suction Lift: Up to 7 m

Inlet / Outlet Size: 25 mm (1 Inch)

Protection Class: IP44

Insulation Class: Class B (ICL.B)

Impeller Material: Brass

Motor Winding: 100% Copper

Max Water Temperature: 40°C

Duty Type: S1 Continuous Duty (Thermally Protected)

Installation Environment: Covered and well-ventilated area

What’s Included
1 × Smte 1.1kW Centrifugal Water Pump

1 × DSK-2 Electronic Flow Controller with Built-in Pressure Gauge

1 × User Manual
