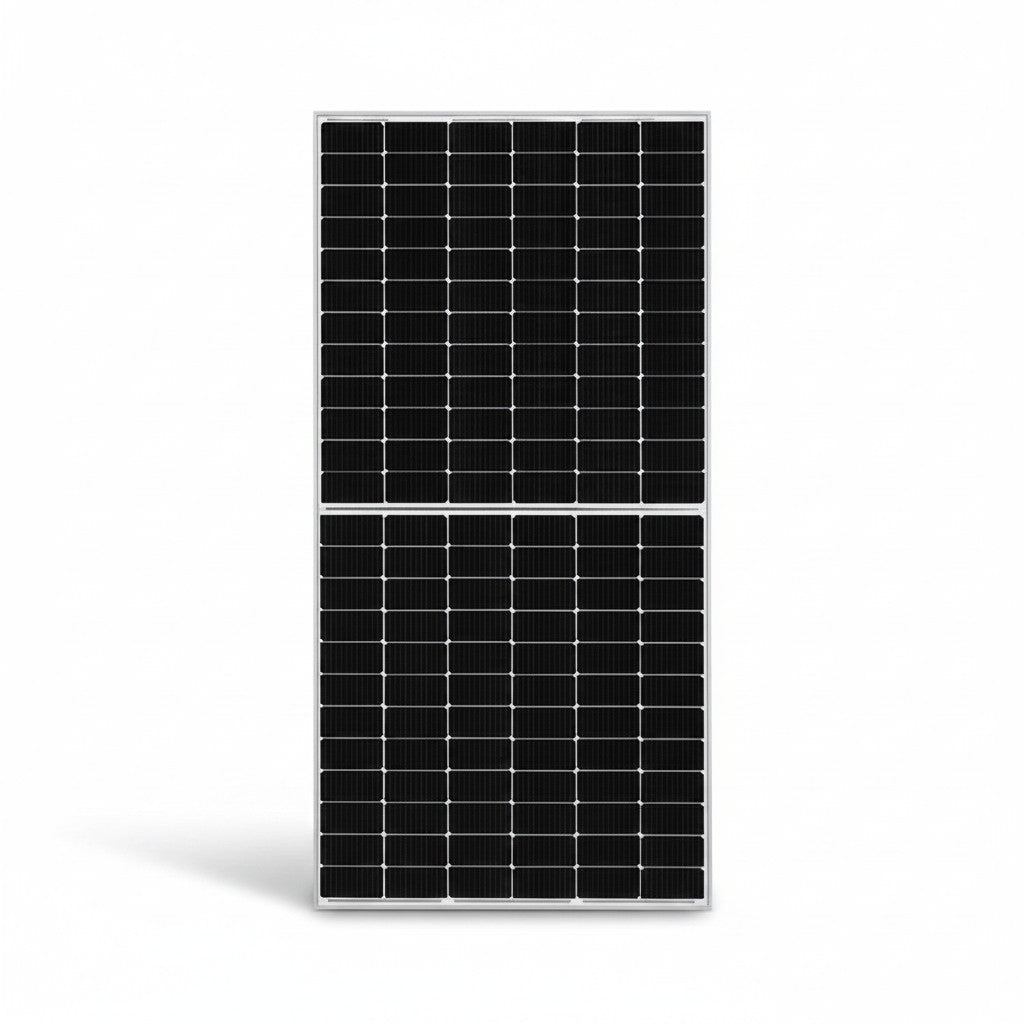

Smte 460W N-Type Monocrystalline Half-Cell Solar Panel (144-Cell, 1500V DC, 30mm Aluminum Frame, MC4 Compatible)

Step up to high-yield clean power with the Smte 460W N-Type Monocrystalline Half-Cell Solar Panel. Developed for residential grid-tie installations, off-grid backup banks, and commercial solar projects, this module utilizes advanced N-Type silicon technology to deliver elevated energy conversion and minimal degradation over decades of service.

The 144 half-cell split layout reduces resistive losses and operates cooler under high ambient temperatures, preventing the thermal performance dips typical of older cell designs. Its split electrical architecture ensures that if the lower portion of the panel is partially shaded by trees, dirt, or parapets, the upper half continues generating full power uninterrupted.

Built to endure tough outdoor conditions, the cell matrix is encapsulated under anti-reflective, tempered glass and secured within a 30mm anodized aluminum frame. It offers certified resistance against potential-induced degradation (PID), ammonia, and coastal salt mist, making it suitable for both inland and coastal installations. Pre-fitted with quick-connect MC4-compatible cables and a weatherproof junction box housing three bypass diodes, setup is straightforward, fast, and secure.

Key Features

• N-Type Monocrystalline Performance: Delivers superior energy density and exceptional cell-level efficiency.

• Optimized Split Half-Cell Architecture: 144 half-cut cells minimize internal resistive heat and reduce shading power losses.

• Stable High-Temperature Coefficient: Maintains high electrical output in hot summer climates without steep drops in voltage.

• All-Weather Low-Light Harvest: Starts generating usable energy earlier in the morning and continues through late afternoon overcast skies.

• Rugged 30mm Anodized Frame: Lightweight yet structural aluminum frame withstands strong wind and snow loads.

• Harsh Climate Resilience: Full resistance to PID, salt mist, and corrosive ammonia environments.

• Standard 1500V System Compatibility: Supports longer strings and reduced balance-of-system wiring costs.

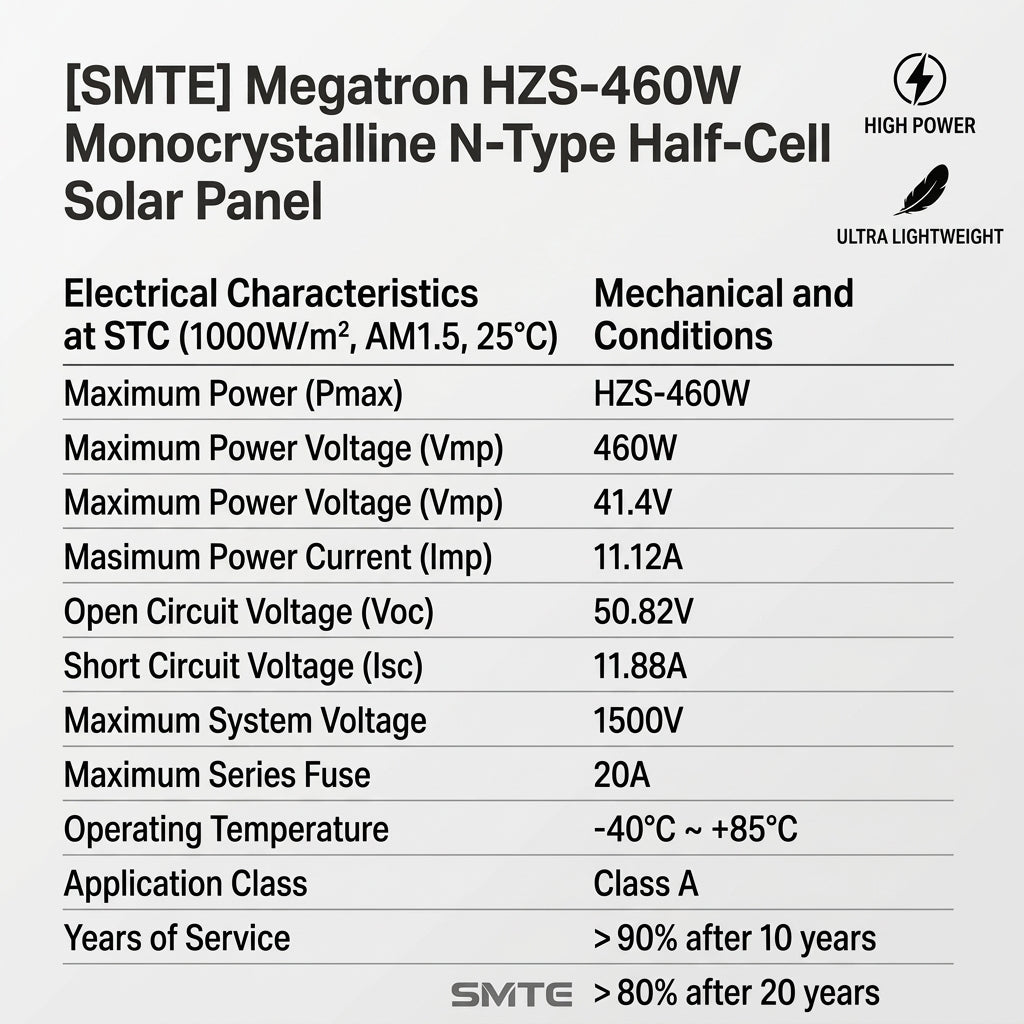

Specifications

• Brand: Smte

• Model: HZS-460W

• Cell Type: N-Type Monocrystalline (144 Half-Cells)

• Rated Maximum Power (Pmax): 460W

• Maximum Power Voltage (Vmp): 41.4V

• Maximum Power Current (Imp): 11.12A

• Open Circuit Voltage (Voc): 50.92V

• Short Circuit Current (Isc): 11.89A

• Maximum System Voltage: 1500V DC

• Maximum Series Fuse Rating: 20A

• Operating Temperature: -40°C to +85°C

• Application Class: Class A

• Panel Dimensions: 1909 mm × 1134 mm × 30 mm

• Front Glass: High-transmission, anti-reflective coated tempered glass

• Frame: 30mm heavy-duty anodized aluminum alloy

• Junction Box: Weatherproof housing with 3 integrated bypass diodes

• Connectors: Pre-wired MC4 / MC4-compatible output leads

• Degradation Rating: >90% output retention at 10 years, >80% output retention after 20 years

What’s Included

• 1 × Smte 460W Monocrystalline N-Type Half-Cell Solar Panel

• 1 × Pre-Wired Junction Box with 3 Bypass Diodes

• 1 × Pair of Pre-Attached MC4-Compatible Leads

• 1 × Installation & Safety Manual
