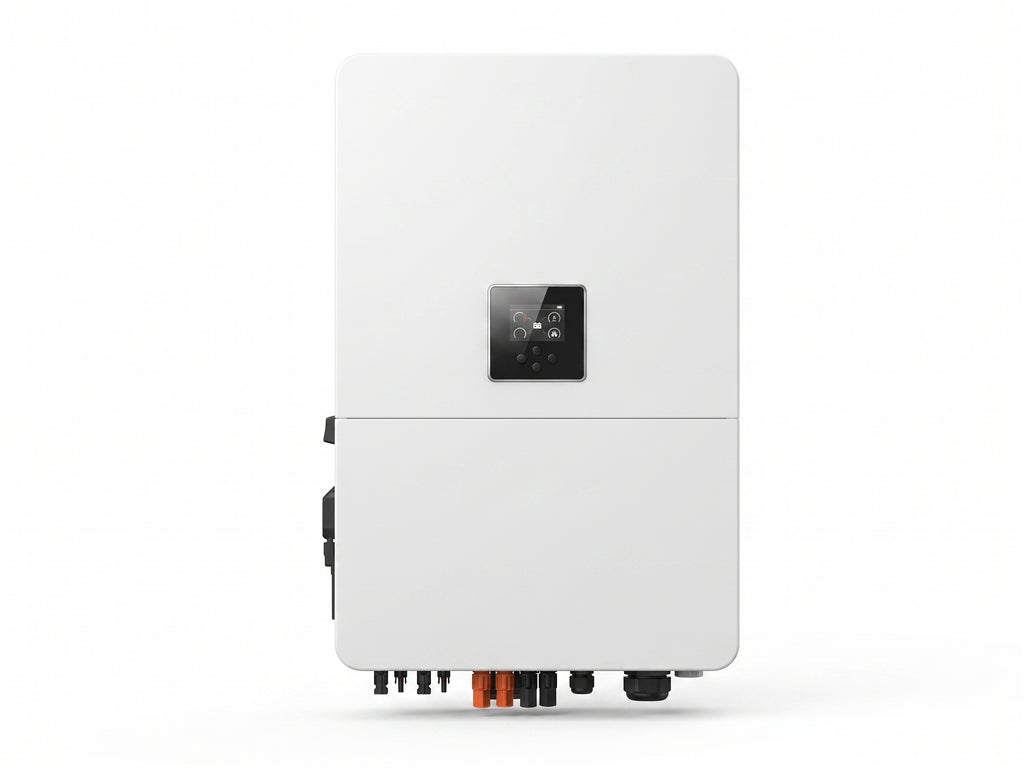

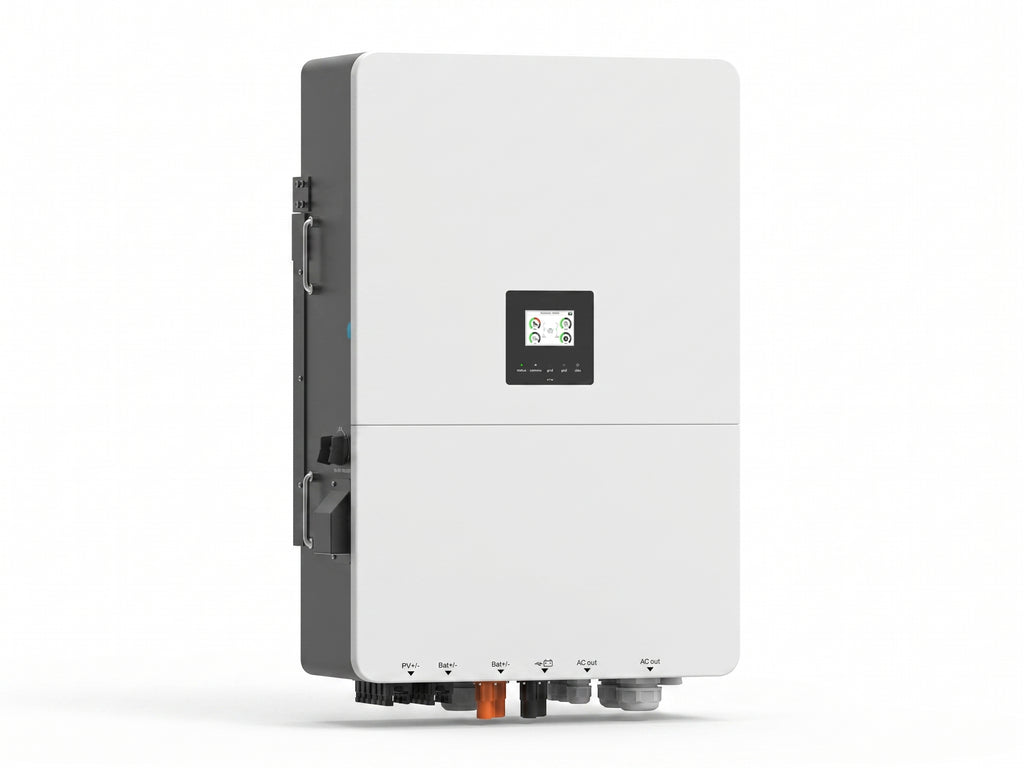

SMTE 80kW High-Voltage Three-Phase Hybrid Inverter – Commercial Solar Inverter (160,000W PV Input, IP65)
SMTE 80kW High-Voltage Three-Phase Hybrid Inverter – Commercial Solar Inverter (160,000W PV Input, IP65)
Power large commercial facilities, industrial manufacturing plants, agricultural estates, and utility-scale microgrids with the 80kW High-Voltage Three-Phase Hybrid Inverter. Engineered for maximum round-trip efficiency and energy independence, this powerhouse inverter integrates with 160V–1000V high-voltage Lithium-ion battery systems to drastically reduce current losses. Supporting up to 160,000W PV input across 6 MPPT trackers, 100% unbalanced 3-phase load output, AC coupling retrofitting, and parallel scalability up to 10 units, it delivers uncompromising energy security and continuous heavy-duty performance.
Key Features & Benefits
Ultra-High 160kW PV Input: Features 6 independent MPPT trackers with 12 strings to optimize solar harvesting across vast, multi-angle commercial rooftop and ground arrays.
High-Voltage Battery Storage (160V–1000V): Seamlessly pairs with high-voltage battery banks, delivering up to 160A charge/discharge current for rapid cycling and superior efficiency.
100% Unbalanced Load Output: Supports full 100% unbalanced output per phase, ensuring smooth and reliable operation even with heavily unbalanced commercial loads.
AC Coupling for Retrofit Installations: Easily integrates with existing grid-tied solar systems to upgrade them into powerful energy storage setups without complex system redesign.
Diesel Generator Synchronization: Pre-configured for seamless generator integration to provide 24/7 backup power during prolonged grid failures.
Massive Parallel Scalability: Supports parallel operation of up to 10 units for both on-grid and off-grid multi-megawatt-hour installations.
Rugged IP65 Weatherproof Housing: Built for outdoor or indoor wall mounting with intelligent air cooling to handle extreme temperature ranges from -40°C to +60°C.
Smart Multi-Channel Monitoring: Equipped with an intuitive color touch LCD and supports RS485, CAN, Wi-Fi, GPRS, and 4G communication for real-time cloud management.
Technical Specifications
PV String Input Data
Inverter Topology: Three-Phase High-Voltage Hybrid
Rated AC Output Power: 80,000W (80kW)
Max. PV Input Power: 160,000W (160kW)
Max. PV Input Voltage: 1000V
Number of MPPT Trackers / Strings: 6 MPPTs / 12 Strings
MPPT Efficiency: > 99.0%
Battery & Storage Parameters
Battery Architecture: High-Voltage Lithium-Ion System
Battery Voltage Range: 160V – 1000V
Max. Charge / Discharge Current: 160A
BMS Communication: RS485 / CAN / RS232
AC Output & Grid Integration
Nominal Grid Voltage: 230/400V (Three-Phase)
Grid Frequency: 50Hz / 60Hz
Max. AC Output Current: 133.4A
Unbalanced Output: 100% Unbalanced Output Supported per Phase
Max. Efficiency: 97.6% (European Efficiency: 97.0%)
Parallel Capability: Up to 10 Units in Parallel (On-Grid & Off-Grid)
General & Mechanical Data
Dimensions (W × H × D): 606 mm × 927 mm × 314 mm
Net Weight: 97.5 kg
Ingress Protection Rating: IP65
Cooling Method: Intelligent Air Cooling
Operating Temperature Range: -40°C to +60°C (Derating > 45°C)
Integrated Protections: DC Reverse Polarity, AC Overcurrent, Arc Fault Detection, Islanding Protection
Certifications: NRS097, IEC, EN, CE, VDE, G99, RD 140
Warranty: 5-Year Warranty
