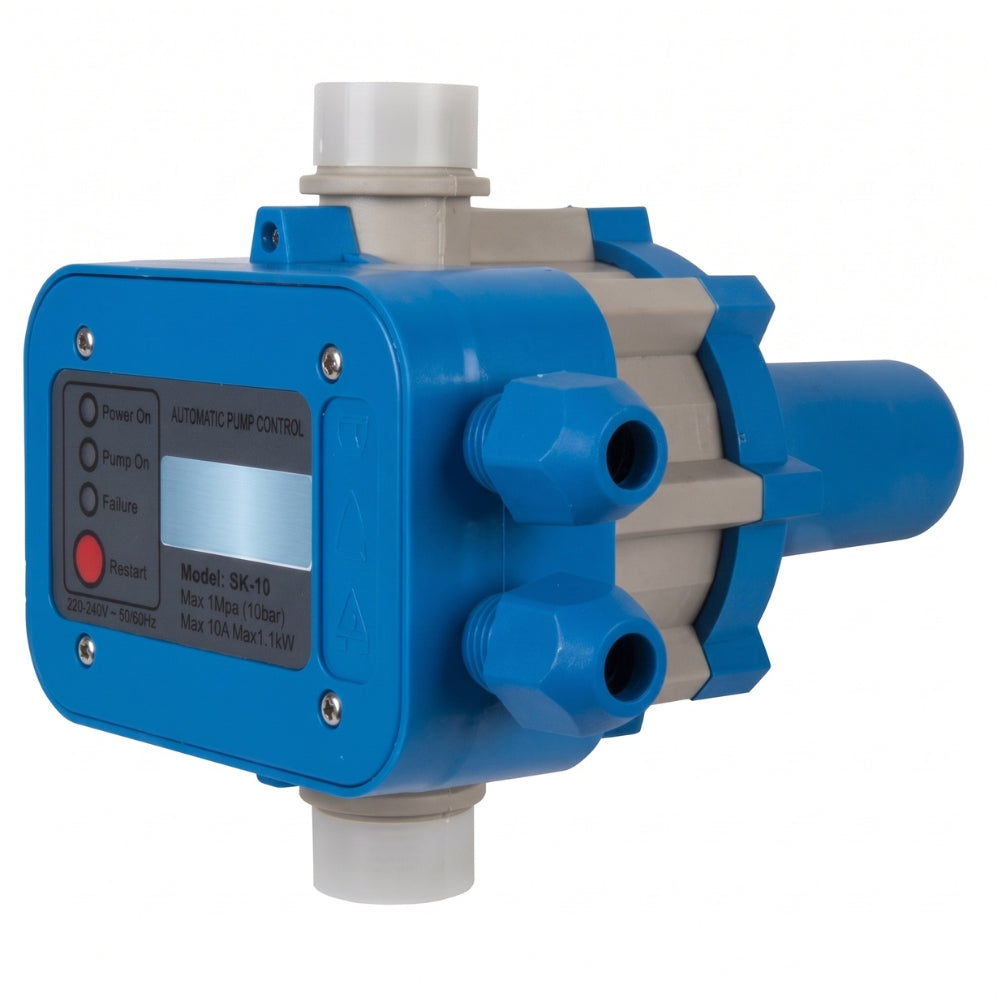

Smte Automatic Water Pump Pressure Controller Unit (Model SK-10, 230V, 10A, 1.1KW, 10Bar, IP65)
Smte Automatic Water Pump Pressure Controller Unit (Model SK-10, 230V, 10A, 1.1KW, 10Bar, IP65)
Upgrade and automate your water system with the Smte Automatic Pump Pressure Control Unit (Model SK-10). Designed to replace traditional pressure switches and expansion tanks, this controller automates water delivery based on real-time plumbing demand. Opening any tap or valve instantly triggers the pump, while closing the tap automatically shuts it down—eliminating manual operation and pressure drops.
Built with complete system security in mind, the unit includes automated dry-run protection to cut motor power whenever water supply is depleted, protecting your equipment from overheating and mechanical failure. With standard 25mm (1″) BSP male threaded connections, intuitive LED indicators (Power On, Pump On, Failure), and an IP65-rated weatherproof enclosure, it offers dependable plug-and-play operation for booster pumps, borehole systems, and domestic irrigation.
Key Features
Automatic Start & Stop: Senses plumbing demand to start and stop the pump instantly as taps open and close.
Dry Run Cut-Off: Protects pump motors against burnout by cutting power when water flow is interrupted.
Pump Compatibility: Suitable for all 230V / 50Hz single-phase water pumps rated up to 1.1 kW (10 Amps).
Heavy-Duty Pressure Rating: Operates reliably up to a maximum working pressure of 10 Bar (1 MPa) and water temperatures up to 60°C.
Standard 25mm (1″) Connections: Universal 25mm BSP male threaded inlet and outlet ports for fast, hassle-free installation.
Front Diagnostic Panel: Features clear LED status indicators (Power On, Pump On, Failure) with a dedicated Restart button.
Specifications
Brand: Smte
Model: SK-10
Product Type: Automatic Pump Pressure Controller / Electronic Flow Switch
Input Voltage: 220V–240V AC (50/60 Hz)
Maximum Motor Power: 1.1 kW (1.5 HP)
Maximum Current: 10 A
Maximum Operating Pressure: 10 Bar (1 MPa)
Inlet / Outlet Size: 25 mm (1 Inch) BSP Male Thread
Ingress Protection Rating: IP65
Maximum Water Temperature: 60°C
Safety Features: Automatic Dry-Run Protection, Manual Restart
What’s Included
1 × Smte Automatic Water Pump Control Unit (Model SK-10)
