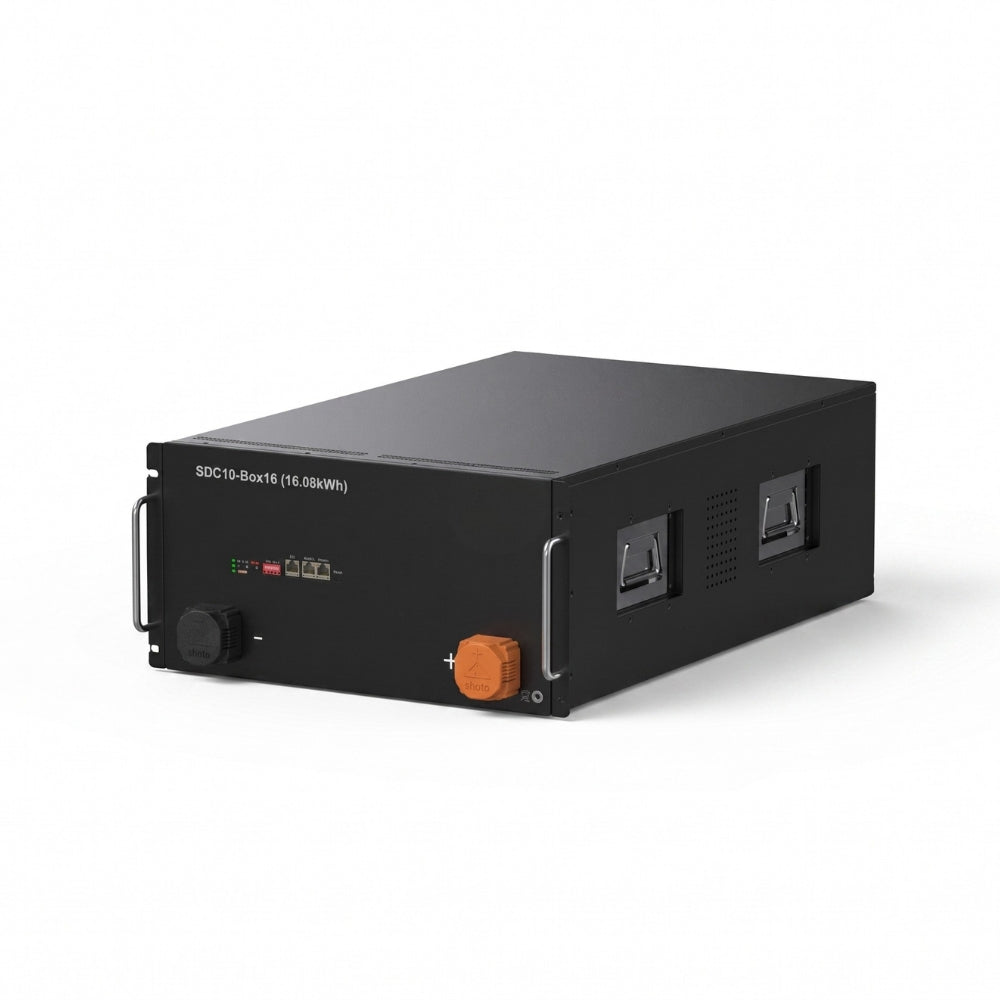

SMTE SHOTO SDC10-Box16 16.08kWh 51.2V 314Ah LiFePO4 Lithium Battery – Server Rack-Mount Energy Storage (CAN/RS485 BMS)

Power demanding residential properties, large off-grid systems, and commercial solar installations with the SHOTO SDC10-Box16 16.08kWh 51.2V 314Ah LiFePO4 Lithium Battery Module. Engineered with ultra-high-density 314Ah Lithium Iron Phosphate ($\text{LiFePO}_4$) cells and an intelligent active-balancing Battery Management System (BMS), this server rack-mounted battery delivers a massive 16.08kWh of dependable energy storage in a single compact chassis. Featuring wide multi-inverter compatibility, modular parallel scalability, heavy-duty industrial DC quick-connect terminals, and a rugged black metal enclosure, it provides continuous, reliable power security against load shedding.

Key Features & Benefits

• Ultra-High 16.08kWh / 314Ah Capacity: Delivers high-density 51.2V low-voltage DC energy storage to effortlessly power heavy household appliances, central HVAC systems, and commercial circuits.

• Premium LiFePO4 Chemistry & Security: Safe, non-explosive Lithium Iron Phosphate technology delivers high thermal stability, deep cycle resilience, and an ultra-long operating lifespan.

• Universal Multi-Brand Inverter Compatibility: Intelligent BMS with integrated CAN Bus and RS485 communication protocols seamlessly synchronizes with leading hybrid inverters (Deye, Sunsynk, Growatt, Victron, Luxpower, etc.).

• Modular Parallel Scalability: High scalability allows multiple battery packs to be connected in parallel for configuring high-capacity energy storage banks.

• Heavy-Duty Quick-Connect DC Terminals: Front-mounted positive (orange) and negative (black) polarized high-current quick-connect plugs with protective branding caps ensure low-resistance, safe connections.

• Minimalist & Ergonomic Rack Design: Sleek matte black powder-coated steel chassis equipped with front chrome pull handles, recessed side handles, and side cooling perforations for effortless handling and standard rack integration.

• Comprehensive BMS Safety Protections: Full multi-tier safeguards protect against overcharge, over-discharge, overcurrent, short circuits, and thermal extremes.

Technical Specifications

Battery Performance & Capacity

• Model: SDC10-Box16 (SDC10-Box Series)

• Battery Chemistry: Lithium Iron Phosphate ($\text{LiFePO}_4$)

• Nominal Energy Capacity: 16.08 kWh (16 kWh)

• Rated Capacity: 314 Ah

• Nominal Voltage: 51.2 V (51V Operating Range)

• System Type: Low-Voltage Server Rack Energy Storage System (LV ESS)

• Application: High-Demand Residential, Off-Grid Solar, UPS Backup & Light Commercial

BMS, Safety & Communication

• Communication Ports: CAN Bus / RS485 / Link Ports

• Addressing & Controls: Onboard Multi-Way DIP Switch

• Status Indicators: LED Run/Alarm & State-of-Charge (SOC) Indicator Lights

• BMS Protection: Cell Balancing, Overvoltage, Undervoltage, Overcurrent, Short Circuit & Thermal Cut-Off

• Inverter Compatibility: Leading 48V / 51.2V Hybrid & Off-Grid Inverters

Physical & Mechanical Data

• Form Factor: Heavy-Duty Server Rack-Mount Module

• Enclosure: Matte Black Powder-Coated Steel Chassis

• Handling: Dual Front Chrome Grab Handles + Dual Recessed Side Lifting Handles

• DC Terminals: 1 × Positive (+) Quick-Connect Terminal (Orange Cap) & 1 × Negative (-) Quick-Connect Terminal (Black Cap)

• Thermal Management: Side Passive Convection Ventilation Grilles
