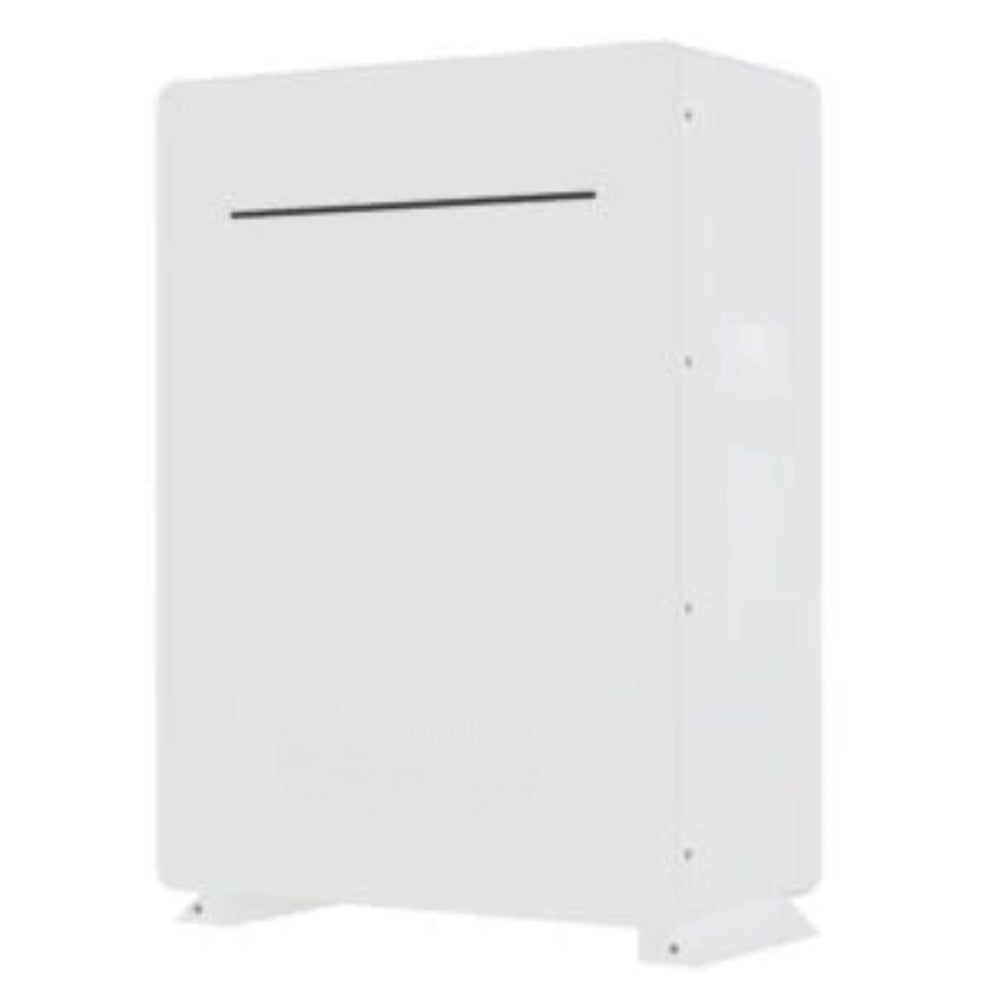

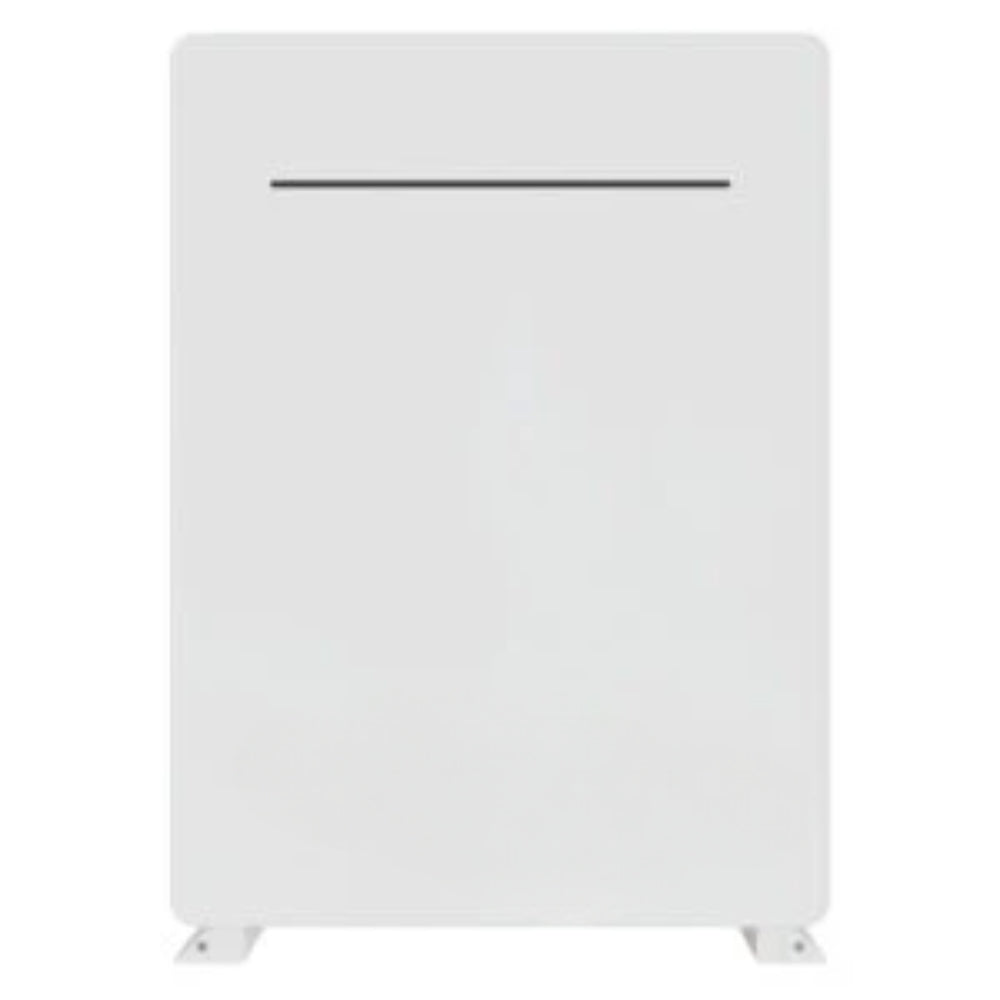

SMTE Volta Stage 3 10.2kWh 48V (51.2V) 200Ah LiFePO4 Lithium Battery – Floor & Wall-Mount Solar Energy Storage (New Gen)

Power residential properties, commercial setups, and off-grid solar systems with the Volta Stage 3 10.2kWh 48V 200Ah Lithium Battery (New Gen). Engineered with advanced Lithium Iron Phosphate ($\text{LiFePO}_4$) chemistry and an integrated Battery Management System (BMS), this high-capacity low-voltage unit delivers 10.2kWh of dependable energy storage to eliminate outage disruptions and maximize solar self-consumption. Featuring dual positive and negative quick-connect DC terminals protected by a transparent acrylic top safety cover, an integrated communication/switch bay, and a minimalist white enclosure with stable floor-standing base brackets, it provides reliable energy independence against load shedding.

Key Features & Benefits

• High-Capacity 10.2kWh / 200Ah Storage: Supplies 48V (51.2V nominal) DC power to comfortably run heavy household appliances, central entertainment systems, and critical commercial backup circuits.

• New Gen Maintenance-Free Chemistry: Advanced eco-friendly Lithium Iron Phosphate cells deliver high thermal stability, exceptional energy efficiency, and extended service life.

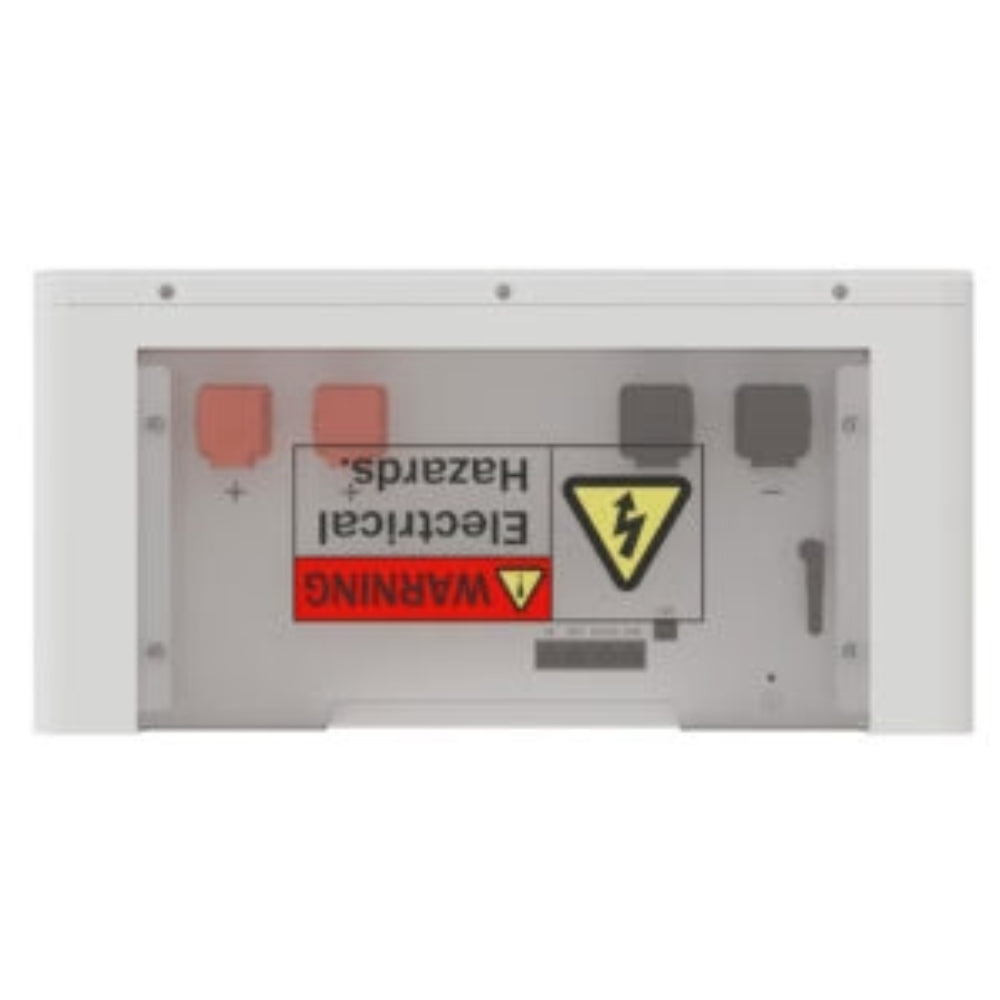

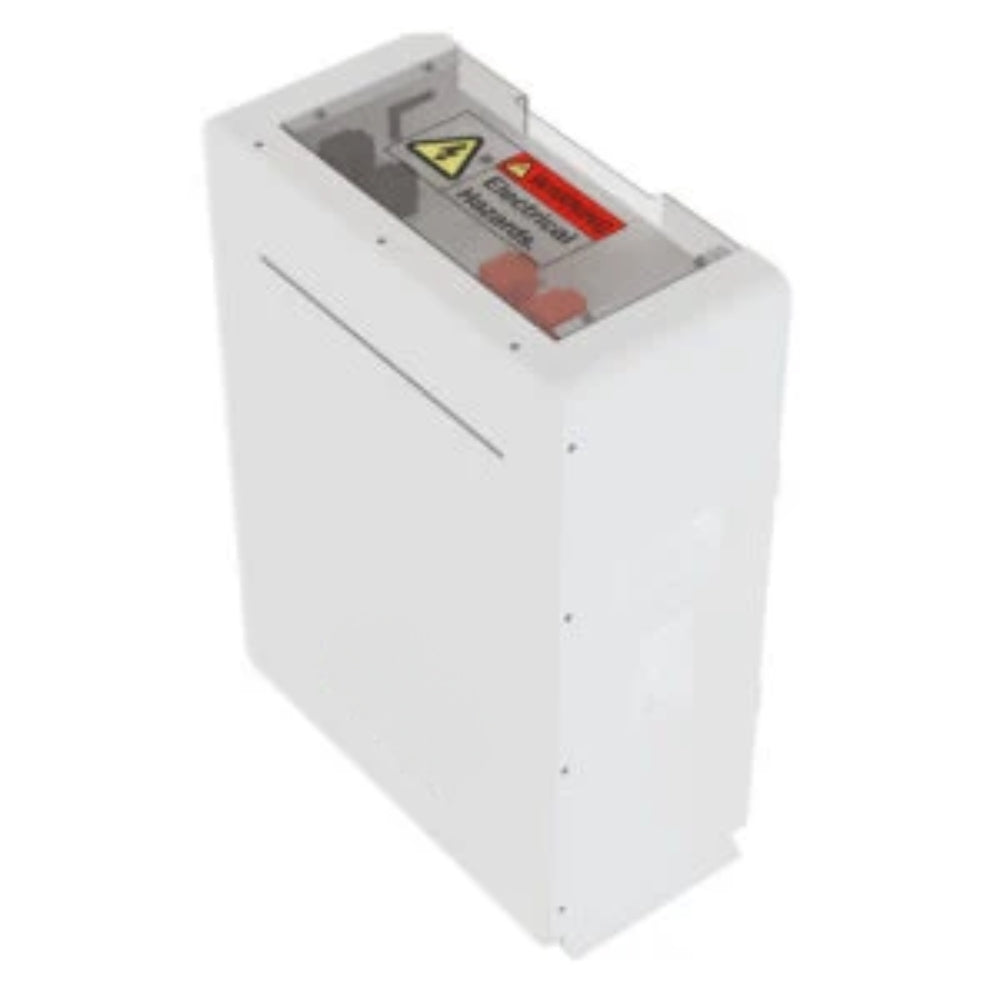

• Recessed Top Terminal Bay with Safety Cover: Features dual positive (orange/red) and dual negative (black) heavy-duty DC connection ports protected under a clear safety shield with electrical hazard markings.

• Integrated Communication & BMS Interface: Protected top port section houses digital communication interfaces (CAN/RS485) and operational status indicators for seamless low-voltage inverter synchronization.

• Multi-Brand Low-Voltage Inverter Compatibility: Engineered to pair smoothly with leading 48V hybrid and off-grid inverters (including Sunsynk, Deye, Growatt, and Luxpower).

• Adaptable Floor or Wall-Mount Form Factor: Clean vertical white steel chassis equipped with sturdy floor-mounting feet for stable ground placement or wall integration.

• Comprehensive BMS Safety Protections: Automatically monitors and guards against overvoltage, undervoltage, overcurrent, short-circuit conditions, and extreme operating temperatures.

Technical Specifications

Battery Performance & Capacity

• Model / Generation: Volta Stage 3 (New Gen)

• Battery Chemistry: Lithium Iron Phosphate ($\text{LiFePO}_4$)

• Nominal Energy Capacity: 10.2 kWh

• Rated Capacity: 200 Ah

• Nominal Voltage: 48 V (51.2V Operating Range)

• System Type: Low-Voltage DC Energy Storage System (LV ESS)

• Application: Residential Solar, Off-Grid Setups, Commercial Energy Storage & UPS Backup

BMS, Safety & Connectivity

• Terminal Configuration: Dual Positive (+) & Dual Negative (-) Heavy-Duty Terminals

• Safety Features: Transparent Acrylic Top Terminal Guard & Hazard Warning Label

• Communication Ports: CAN Bus / RS485 Interface

• BMS Protection: Overcharge, Over-Discharge, Over-Current, Short Circuit & Thermal Monitoring

Physical & Mechanical Data

• Form Factor: Upright Vertical Slim Tower

• Dimensions (W × D × H): 480 mm × 150 mm × 600 mm (48 × 15 × 60 cm)

• Net Weight: 93 kg

• Mounting Style: Floor-Standing (with Angled Base Support Feet) / Wall-Mounting Capable

• Color / Finish: Pure White Powder-Coated Metal Enclosure with Minimalist Front Accent
