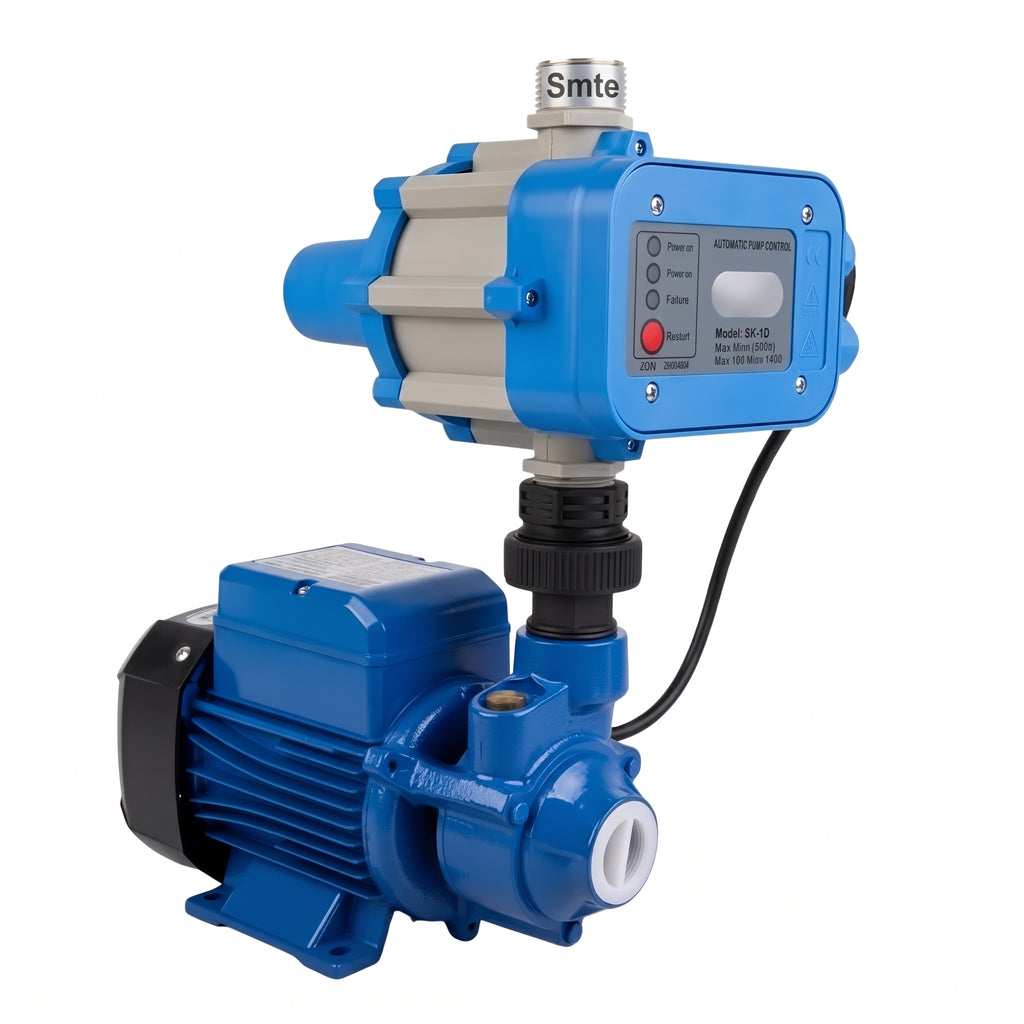

Smte 0.37kW Automatic Peripheral Water Booster Pump with SK-10 Controller (230V, 0.5HP, 35m Head, 25mm)

Automate and enhance your daily water supply with the Smte 0.37kW Peripheral Water Booster Pump System. Pre-assembled with the intelligent SK-10 electronic flow switch, this compact powerhouse provides constant, on-demand pressure for household piping, garden hose lines, and small irrigation systems.

Powered by an energy-efficient 0.37kW (0.5 HP) motor featuring 100% copper windings and thermal overload protection, it pairs durability with reliable daily service. The solid brass peripheral impeller generates strong discharge pressure up to 3.5 Bar (35 meters head) with a flow capacity of up to 35 liters per minute. The SK-10 controller eliminates pressure switches and surge tanks by sensing water movement directly—shutting down safely during dry-run conditions to safeguard your pump.

Key Features
Smart Flow & Pressure Automation: Automatically switches on when a faucet or valve is opened and turns off when the system is closed.

Dry-Run & Failure Protection: Shuts the motor down automatically if water runs out, with a simple manual restart button.

Status LED Diagnostics: Panel lights indicate Power On, Pump On, and Failure status at a glance.

High-Efficiency Peripheral Design: Produces strong output pressure ideal for small booster sets and garden sprayers.

Heavy-Duty Components: Built with 100% copper motor windings, a machined brass impeller, and an IP44 splash-resistant body.

Standard 25mm Ports: Universal 1-inch (25mm) BSP threaded inlet and outlet connections for easy plumbing.

Specifications
Brand: Smte

Product Type: Automatic Peripheral Water Booster Pump

Model / SKU: QB60 + SK-10 (PASQB60SK)

Motor Power: 0.37 kW (0.5 HP)

Wattage: 370W

Voltage: 230V AC (50 Hz, Single Phase)

Max Head (Hmax): 35 m (3.5 Bar)

Max Flow Rate (Qmax): 2.1 m³/h (35 L/min / 2,100 L/h)

Max Working Pressure: 6 Bar (Pump Housing)

Controller Max Pressure: 10 Bar (1.0 MPa)

Suction Lift: Up to 8 m (Self-priming)

Inlet / Outlet Size: 25 mm (1 Inch)

Protection Class: IP44

Impeller Material: Solid Brass

Motor Winding: 100% Copper

Motor Safety: Thermal Overload Protection

Liquid Suitability: Clean water without abrasives

Installation Environment: Covered and well-ventilated space

What’s Included
1 × Smte 0.37kW Peripheral Water Pump

1 × SK-10 Electronic Automatic Flow Controller

1 × 3-Pin Power Cable & Interconnecting Wiring

1 × User Manual
