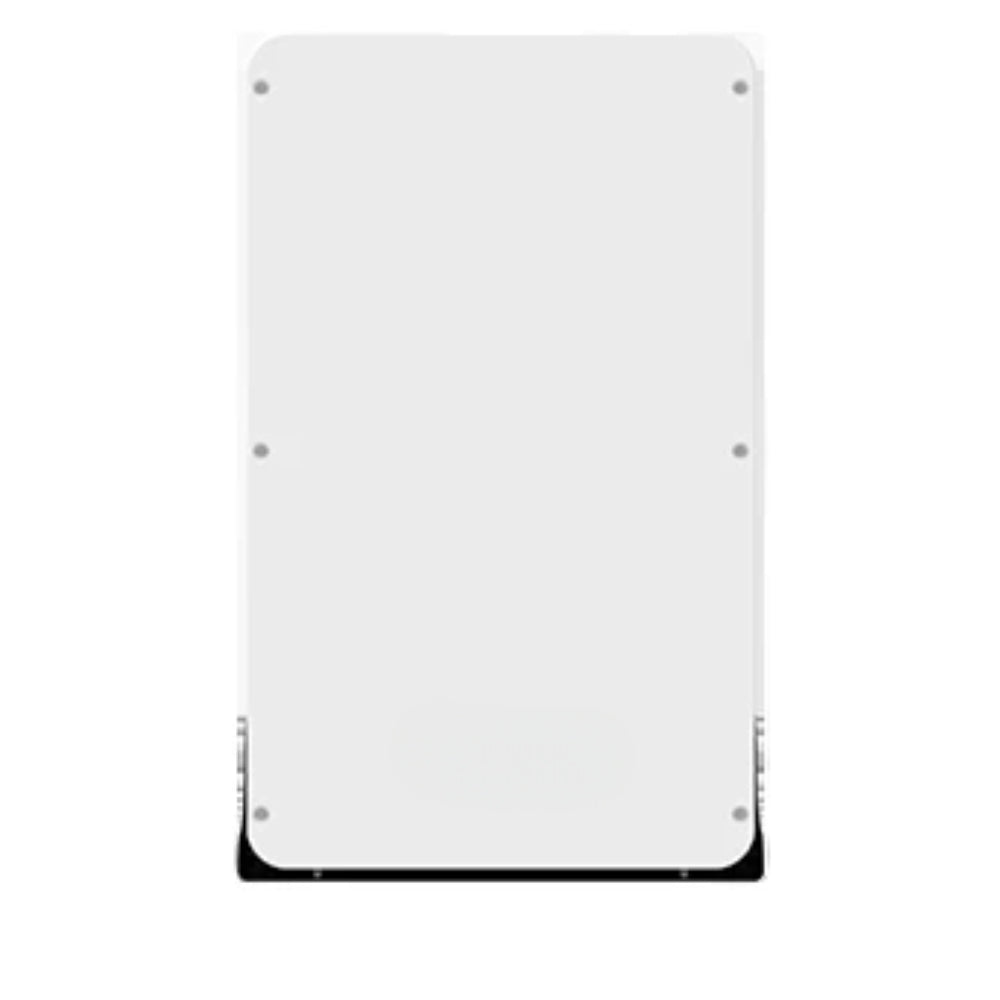

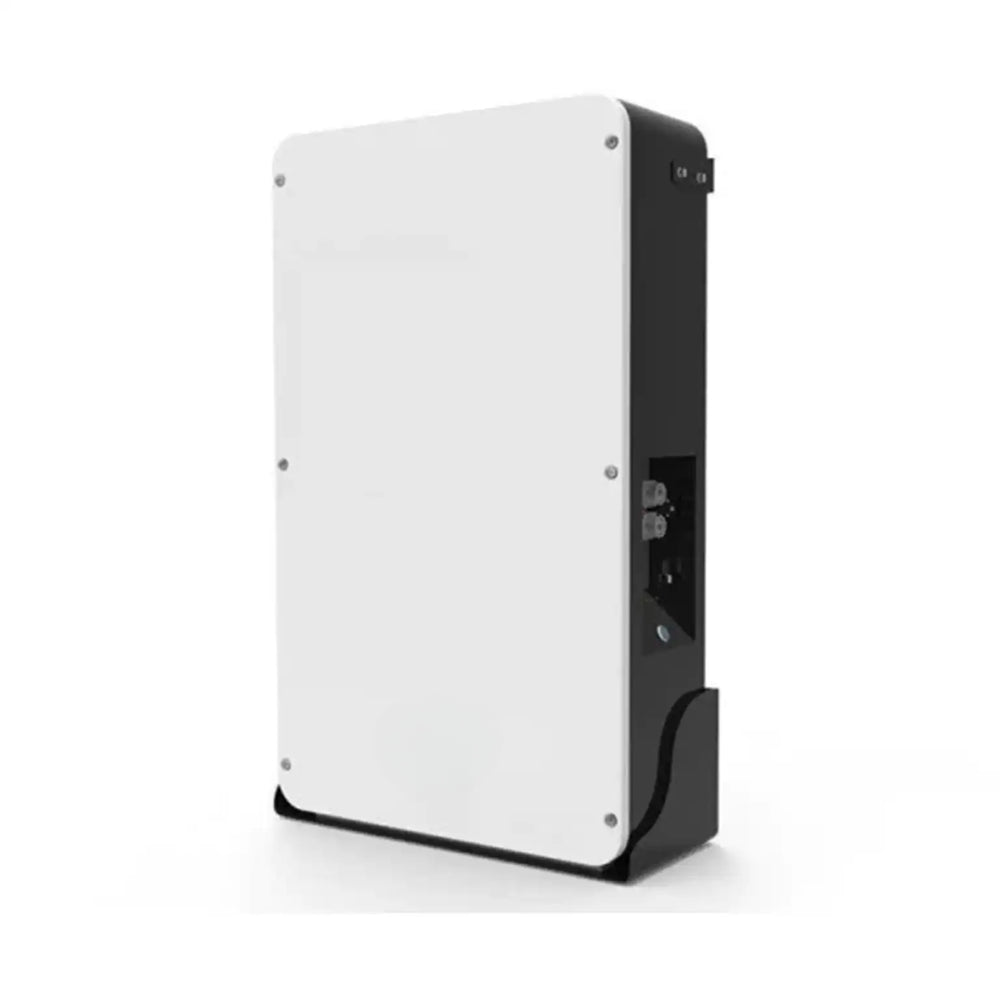

SMTE 10.2kWh 48V 200Ah Power Box LiFePO4 Lithium Battery

Power your entire household or light commercial setup with the 10.2kWh 48V 200Ah Power Box LiFePO4 Lithium Battery. Engineered as a high-density, all-in-one energy storage solution, this battery delivers 9.6kWh of usable nominal energy to eliminate outage disruptions and drastically lower electricity bills. Featuring durable Lithium Iron Phosphate (LiFePO4) chemistry with a 6000-cycle life, 200A peak output current, multi-inverter BMS compatibility, and a sleek floor-standing base, it provides dependable power independence against load shedding.

Key Features & Benefits

• Massive 10.2kWh / 200Ah Capacity: Supplies 48V continuous power to run heavy household appliances, lighting circuits, and critical backup systems.

• Long-Lasting 6000 Cycle Life: Built with premium LiFePO4 cell chemistry offering over 6,000 charge/discharge cycles backed by a 10-year warranty.

• Robust 4.8kW Output & 200A Peak: Delivers 4.8kW continuous maximum output power with a 200A peak current surge capability (3s) to handle heavy appliance motor starts.

• Broad Inverter Compatibility: Multi-protocol BMS communicates seamlessly with leading solar inverter brands including Deye, Sunsynk, GoodWe, Must, Victron, Solis, Luxpower, and Growatt.

• Parallel Scalability: Supports parallel connection of up to 3 units to scale total storage capacity up to 30.6kWh.

• All-in-One Space-Saving Enclosure: Modern floor-standing cabinet with side-access DC terminals, integrated power switch, and heavy-duty base support bracket.

• Smart System Protection: Integrated intelligent BMS safeguards against overvoltage, overcurrent, overdischarge, short circuits, and thermal extremes.

Technical Specifications

Battery Performance & Capacity

• Model: Power Box F-10.0

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

• Nominal Energy Capacity: 10.2 kWh (Nominal Energy: 9.6 kWh)

• Nominal Capacity: 200 Ah

• Nominal / Working Voltage: 48V DC

• Max. Output Power: 4.8 kW (4.8 kWh)

• Peak Output Current: 200A (3 Seconds)

• Cycle / Calendar Life: $\ge 6000$ Cycles

• Parallel Expansion: Up to 3 Units in Parallel

Physical & Mechanical Data

• Dimensions (H × W × D): 928 mm × 555 mm × 210 mm

• Net Weight: 113 kg

• Color: Pure White Enclosure with Black Base Frame

• Mounting / Form Factor: Floor-Standing Upright Power Box

• Side Panel Features: Recessed Quick-Connect DC Ports, Breaker Switch, Status Lights

• Warranty: 10-Year Warranty
