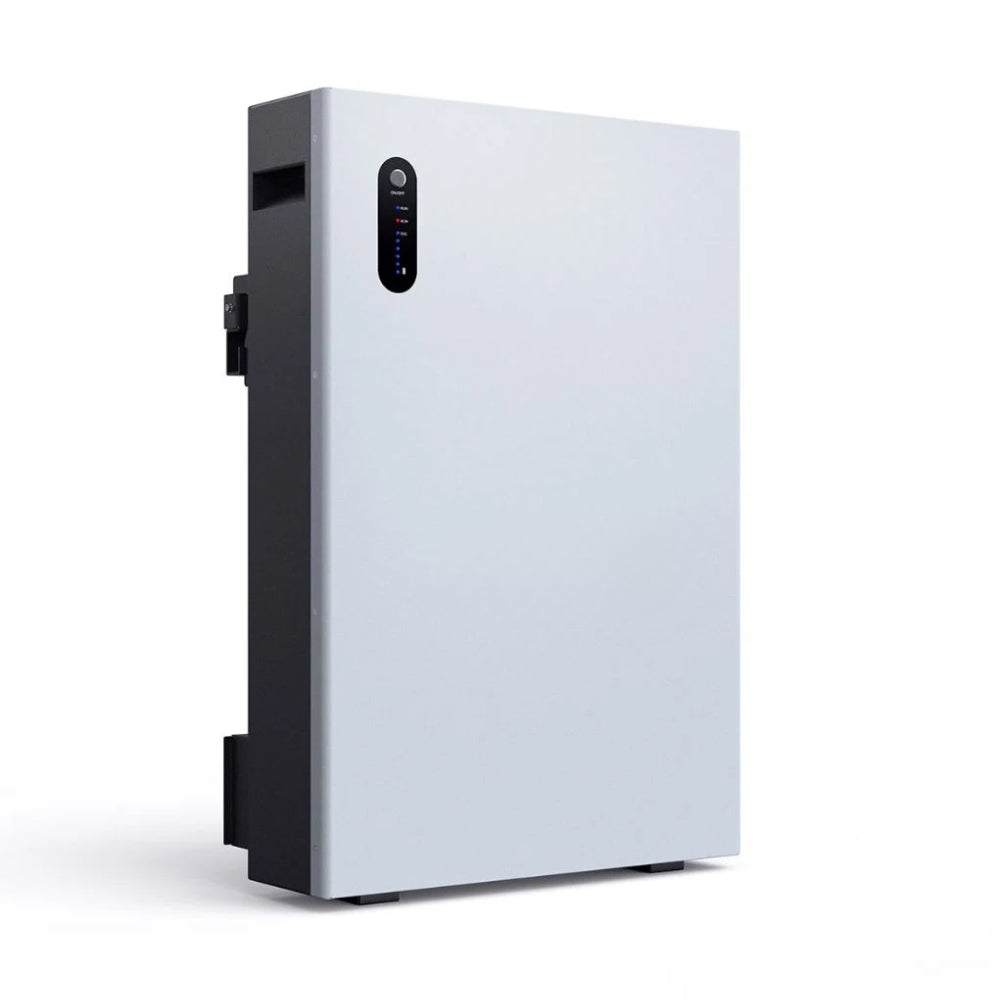

SMTE 10.65kWh 51.2V LiFePO4 Lithium Battery – Wall Mount

SMTE 10.65kWh 51.2V LiFePO4 Lithium Battery – Wall-Mounted Solar Energy Storage (≥6000 Cycles, RS485/CAN BMS)

Power your home, business, or off-grid solar installation with the 10.65kWh 51.2V LiFePO4 Lithium Battery. Engineered with high-density Lithium Iron Phosphate ($\text{LiFePO}_4$) chemistry and an intelligent Battery Management System (BMS), this wall-mounted battery provides 10.65kWh of usable energy storage to eliminate power outage disruptions and optimize self-consumption. Featuring over 6,000 charge/discharge cycles at 80% DoD, multi-protocol communication (RS485 and CAN), multi-unit parallel scalability, and a vertical LED state-of-charge interface, it ensures clean, dependable backup power against load shedding.

Key Features & Benefits

• High-Capacity 10.65kWh Storage: High-density 51.2V energy storage engineered to comfortably run household appliances, lighting, office equipment, and heavy loads.

• Ultra-Durable $\ge 6000$ Cycle Life: Premium $\text{LiFePO}_4$ cell chemistry guarantees long-term thermal stability, enhanced safety, and over 6,000 cycles at 80% Depth of Discharge (DoD).

• Multi-Protocol Smart BMS: Integrated RS485 and CAN communication interfaces allow seamless synchronization and plug-and-play communication with leading hybrid inverters.

• Modular Parallel Scalability: Supports multi-unit parallel expansion to scale total kWh capacity for larger residential and commercial energy storage systems.

• Space-Saving Wall-Mounted Chassis: Modern slim vertical cabinet saves floor space and features heavy-duty wall-mounting brackets and recessed side lifting handles.

• Comprehensive BMS Safeguards: Intelligent internal management continuously protects against overcharging, over-discharging, short circuits, and thermal extremes.

• Integrated LED Status & Capacity Bar: Front-panel vertical indicator pod includes a dedicated power button, status/alarm LEDs, and a multi-level State-of-Charge (SOC) capacity meter.

Technical Specifications

Battery Performance & Capacity

• Battery Chemistry: Lithium Iron Phosphate ($\text{LiFePO}_4$)

• Usable Energy Capacity: 10.65 kWh

• Nominal Voltage: 51.2 V

• Cycle Life: $\ge 6000$ Cycles @ 80% DoD

• Scalability: Supports Multi-Unit Parallel Connection

BMS, Safety & Communication

• Communication Interface: RS485 / CAN

• BMS Protection: Overcharge, Over-Discharge, Short Circuit & Thermal Monitoring

• Display Interface: Front-Panel Vertical LED Status Indicator (Power Button, Alarm, SOC Level Bar)

• Applications: Solar Energy Storage, Home Backup, Off-Grid & Hybrid Power Systems

Physical & Mechanical Data

• Mounting Style: Heavy-Duty Wall-Mounted

• Form Factor: Slimline Vertical Cabinet with Base Floor Pads & Side Lifting Grips

• Color: White Front Panel with Dark Charcoal/Black Side Chassis

• Certifications: CE, UN38.3, IEC62133
