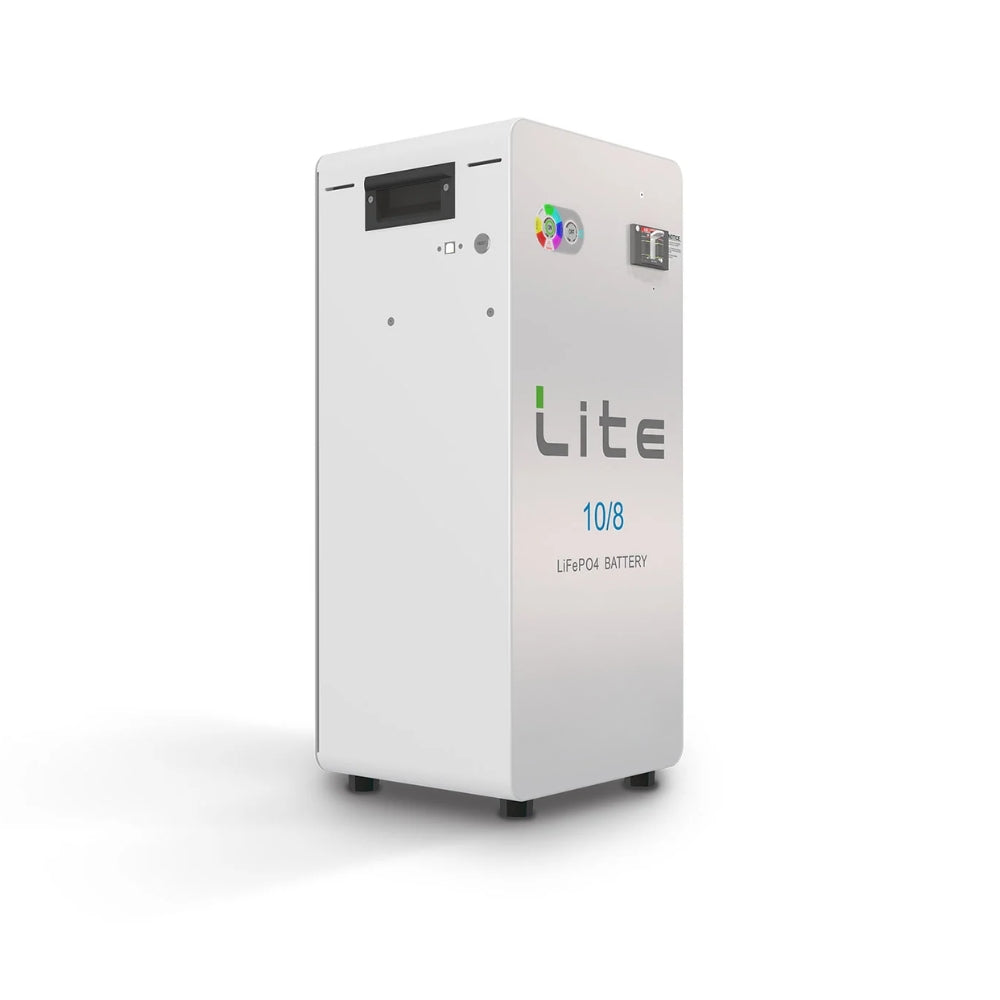

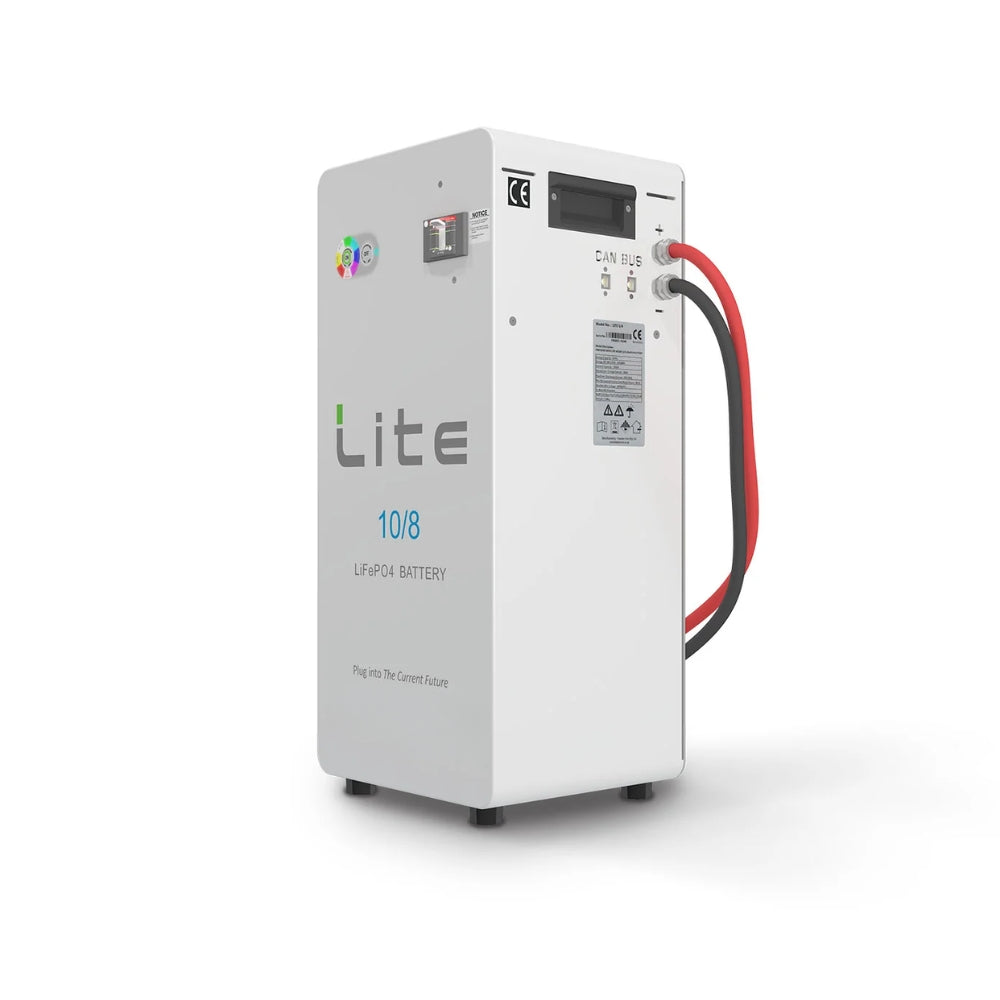

SMTE 10kWh 52V 200Ah LiFePO4 Lithium Battery – Floor-Standing Solar Energy Storage (10/8 Low Voltage, 15kW Peak Discharge)

Power your home, large estate, or commercial setup with the 10kWh (10/8) 52V 200Ah LiFePO4 Lithium Battery. Engineered with premium Lithium Iron Phosphate chemistry and an advanced Shunt Trip protected Battery Management System (BMS), this heavy-duty low-voltage storage tower delivers 8kWh to 9kWh of daily usable energy. Designed to suit 48V inverter systems with up to 10kVA rated continuous capacity, it features a massive 300A peak discharge (15kW), dual CAN Bus communication ports, integrated Permopower 50mm² DC fly leads, and an outstanding design lifespan of over 16 years, offering reliable power security against load shedding.

Key Features & Benefits

• Massive 10kWh Total Storage (8–9kWh Usable): Delivers 8kWh at 80% DoD and up to 9kWh at 90% DoD to reliably run essential household circuits, air conditioning, and high-draw appliances.

• Heavy-Duty 15kW / 300A Discharge: Delivers 200A continuous discharge (10kW) with a powerful 300A peak discharge (15kW) to effortlessly handle heavy motor start-up surges.

• Extended >16-Year Service Life: Premium LiFePO4 cells deliver over 5,500 cycles at 80% DoD (>16 years) and over 7,500 cycles at 50% DoD (>20 years), backed by a 10-year warranty.

• BMS-Actuated Shunt Trip Breaker: Integrated high-current breaker automatically trips during critical faults and features manual reset for comprehensive safety.

• Pre-Wired DC Fly Leads: Comes equipped with heavy-duty $1\times 50\text{ mm}^2$ Permopower positive and negative fly leads for quick and secure inverter connection.

• Smart Multi-Protocol Interface: Features dual RJ45 CAN Bus ports for seamless communication with leading 48V hybrid inverters, along with a USB serial interface for PC diagnostics.

• Integrated Human Interface: Side-mounted State of Charge (SOC) meter (0–100%), error light indicator, and dedicated reset button provide instant system status updates.

• Durable White Aluminum Enclosure: Floor-standing tower with recessed side carry handles and solid base feet ensures compact, clean indoor floor placement.

Technical Specifications

Battery Performance & Capacity

• Model: LiTE Home 10/8

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

• Total Energy Capacity: 10 kWh

• Energy Capacity @ 80% DoD: 8 kWh

• Energy Capacity @ 90% DoD: 9 kWh

• Current Capacity: 200 Ah

• Nominal Voltage: 52 V (To suit 48V Inverters | Min: 47V, Max: 56V)

• Max. Recommended Inverter Rated Power: 10 kVA (Continuous)

Charge & Discharge Parameters

• Max. & Continuous Charge Current: 200 A (10 kW Charge Power)

• Continuous Discharge Current / Power: 200 A / 10 kW

• Max. Peak Discharge Current / Power: 300 A / 15 kW

• Cycle Life / Warranty: 10 Years or 4,000 Cycles (Average 80% DoD, Max 90% DoD)

• Expected Service Life: > 16 Years (> 5,500 Cycles @ 80% DoD) | > 20 Years (> 7,500 Cycles @ 50% DoD)

Safety, Interface & Mechanical Data

• DC Connections: $1 \times 50\text{ mm}^2$ Permopower Fly Leads (Positive & Negative)

• Protection: Shunt Trip Circuit Breaker, Overcurrent, Cell Under/Over Voltage, Weak Cell Detection, Thermal & Min SOC Control

• Control / Interfaces: RJ45 CAN Bus (Inverter Link), USB Serial Port (Troubleshooting), SOC Display (0–100%), Error Reset

• Enclosure: White Painted Aluminum Chassis (IP20 Rated)

• Dimensions (H × W × D): 745 mm × 340 mm × 290 mm

• Net Weight: 89 kg
