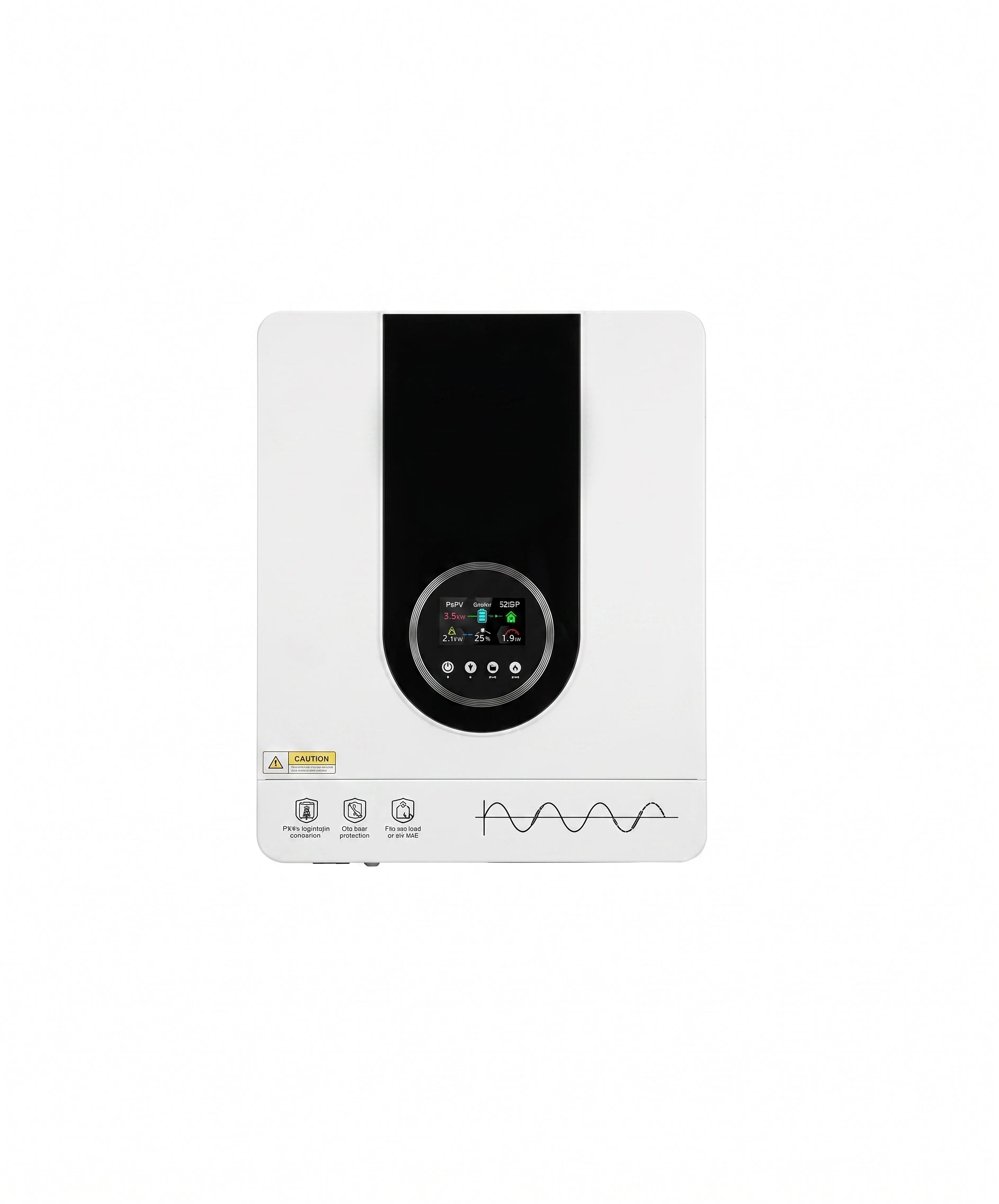

SMTE 11kW Hybrid Solar Inverter 48V – Dual MPPT Pure Sine Wave
SMTE 11kW Hybrid Solar Inverter 48V – Dual MPPT Pure Sine Wave
SMTE 11kW Hybrid Solar Inverter 48V – Pure Sine Wave Inverter with Dual MPPT (11,000W PV Input, RGB Display)
Take command of heavy residential, commercial, or agricultural energy demands with the 11kW Hybrid 48V Solar Inverter. Featuring a full 1.0 power factor (11,000W continuous output), dual MPPT trackers supporting up to 11,000W PV input, and a high-capacity 160A solar charger, this pure sine wave inverter ensures uninterrupted operation. Engineered with a round circular RGB status display, battery-free daytime functionality, and lithium BMS communication, it delivers reliable backup power during load-shedding and optimizes self-consumption.
Key Features & Benefits
Massive 11,000W Pure Sine Wave Output: Full 1.0 power factor delivers 11kW rated continuous power with a 22,000VA surge capacity to run demanding heavy appliances and inductive loads.
Dual MPPT Solar Controllers: High-capacity dual MPPT trackers support up to 11kW (2 × 5500W) PV input arrays with a wide 60V–500VDC operating voltage range.
Rapid 160A Multi-Source Charging: Combines high-speed solar and AC grid charging up to 160A for rapid battery replenishment.
Battery-Free Operation: Intelligently powers connected household and office loads directly from solar and utility grid power without requiring a connected battery bank.
Lithium Battery Wake-Up & BMS Integration: Built-in auto-activation to revive sleep-mode or depleted lithium batteries directly via PV or AC utility with RS485 BMS communication.
Fast UPS-Class Transfer: Seamless 10ms transfer time protects personal computers, IT servers, and sensitive electronics from sudden outages.
Smart Circular Color RGB Interface: Dynamic center circular touchscreen with color LED ring lights for clear system power flow visualization and status tracking.
Dual AC Output Load Management: Smart dual output control allows independent management and prioritization of critical vs. secondary circuits.
Technical Specifications
Inverter AC Output Data
Rated AC Output Power: 11,000VA / 11,000W (Power Factor 1.0)
Peak Surge Power: 22,000VA
Output Waveform: Pure Sine Wave
Nominal Output Voltage: 220V / 230V / 240VAC Single-Phase
Transfer Time: 10ms (Personal Computers) / 20ms (Home Appliances)
AC Output Configuration: Dual AC Outputs (Smart Load Prioritization)
Solar MPPT Charger Data
Solar Charger Architecture: Dual MPPT Controllers
Max. PV Array Input Power: 11,000W (2 × 5500W)
Max. PV Open Circuit Voltage: 500VDC
MPPT Operating Voltage Range: 60VDC – 500VDC
Max. Solar Charge Current: 160A
Battery & AC Charger Parameters
Nominal Battery Voltage: 48VDC
Supported Battery Chemistry: Lithium-Ion / LiFePO4 / Lead-Acid (Operates with or without battery)
Max. AC Charge Current: 120A
Max. Total Charge Current: 160A
Lithium Activation / BMS: Auto-Wake Up Function | RS485 / CAN Communication
General & Mechanical Data
Display & Status: Circular Color LCD Touch Screen with Multi-Color RGB Status Ring
Communication Interface: RS485 / RS232 / Dry Contact / Wi-Fi Supported
Installation Style: Wall-Mounted Chassis
Operating Temperature Range: -10°C to +50°C
