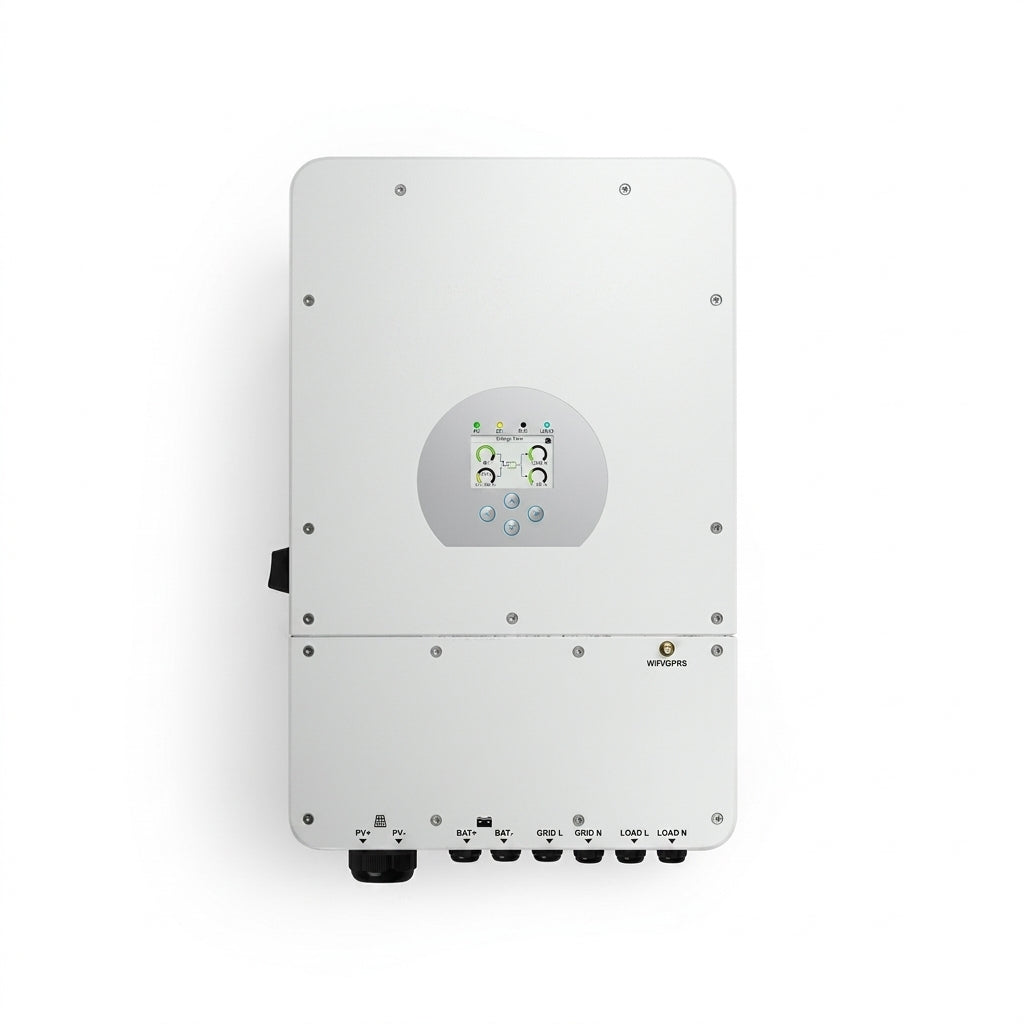

SMTE 12kW Hybrid 48V Three-Phase Solar Inverter – Dual MPPT Pure Sine Wave (15,600W PV Input)
SMTE 12kW Hybrid 48V Three-Phase Solar Inverter – Dual MPPT Pure Sine Wave (15,600W PV Input)
Optimize your commercial facility or large residential property with the 12kW Hybrid 48V Three-Phase Solar Inverter. Engineered for high-efficiency solar conversion and intelligent battery storage, this robust pure sine wave inverter features a 15,600W PV input capacity, dual MPPT trackers, and 100% unbalanced output capabilities. Delivering a seamless 5ms UPS transfer and massive 240A charge/discharge power, it ensures absolute energy security during outages while maximizing self-consumption.
Key Features & Benefits
High-Yield 15,600W PV Input: Dual MPPT trackers support up to 15.6kW of solar capacity with a DC/AC ratio of up to 1.3, perfectly suited for high-output and bifacial modules.
Three-Phase & Unbalanced Output: Delivers 12,000W of three-phase power with 100% unbalanced output support, allowing each phase to output up to 50% of the rated power.
240A Rapid Battery Management: High-current 240A charging and discharging compatible with both 48V Lithium-ion (with auto-BMS adaptation) and Lead-Acid battery banks.
Ultra-Fast 5ms UPS Transfer: Automatically switches from grid to off-grid mode within 5 milliseconds, keeping sensitive electronics online without interruption.
Massive Parallel Scalability: Connect up to 16 units in parallel to scale total capacity for heavy industrial or commercial applications.
Smart Energy Control: Features zero-export functionality (200ms reaction time), 6 programmable time periods for charging/discharging, and diesel generator support.
Rugged IP65 Enclosure: Built for indoor or outdoor installation with transformer isolation design, quiet fan cooling, and full protection against dust and moisture.
Technical Specifications
PV String Input Parameters
Max. DC Input Power: 15,600W
PV Input Voltage Range: 150V – 800V (550V Rated)
MPPT Operating Range: 200V – 650V
Start-Up Voltage: 160V
Max. PV Input Current: 25A + 12.5A
No. of MPPT Trackers / Strings: 2 / (2 + 1)
MPPT Efficiency: 99.90%
Battery Input Data
Supported Battery Types: Lithium-ion / LiFePO4 / Lead-Acid
Battery Voltage Range: 40V – 60V (48V Nominal)
Max. Charge / Discharge Current: 240A
BMS Communication: RS485 / CAN (Cable Included)
AC Output & UPS Backup
Rated AC Output: 12,000W (12kW)
Max. AC Output Power: 13,200W
Peak Surge Power (Off-Grid): 2x Rated Power (10 Seconds)
Output Voltage & Frequency: 230/400Vac (Three Phase) | 50/60Hz
Grid Type: Three-Phase
Max. Continuous AC Passthrough: 50A
Grid-to-Off-Grid Switching Time: <5ms
Total Harmonic Distortion (THD): <3% (Linear load <1.5%)
General & Mechanical Data
Dimensions (W × H × D): 422 mm × 685 mm × 281 mm
Net Weight: 37 kg
Ingress Protection: IP65 (Wall-Mounted)
Monitoring: Wi-Fi Dongle Included (Web Browser & Mobile App Supported)
Warranty: 5-Year Warranty
