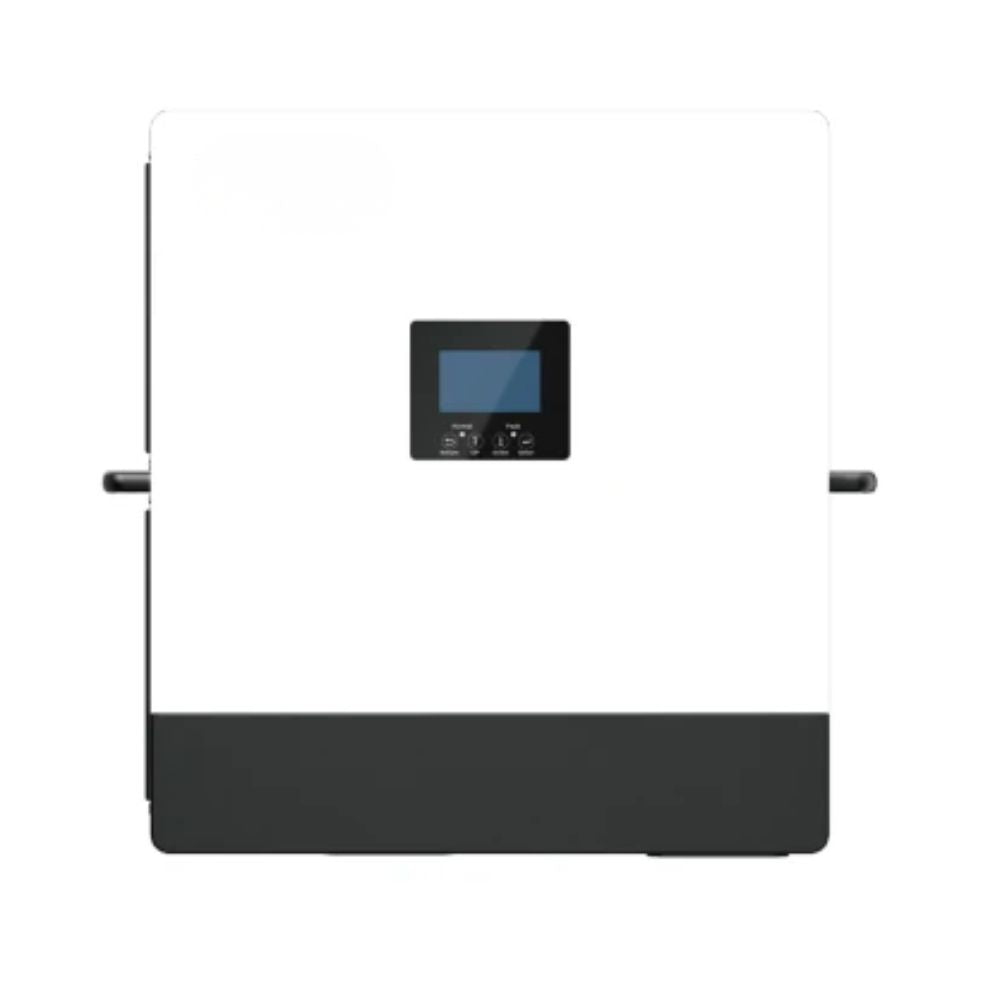

SMTE 14kW Eco Hybrid Inverter – 24kW PV Input Dual MPPT
SMTE 14kW Eco Hybrid Inverter – 24kW PV Input Dual MPPT
Power large estates, commercial operations, or robust off-grid systems with the 14kW Eco Hybrid Solar Inverter. Featuring dual MPPT controllers supporting an ultra-high 24kW PV input, a 250A maximum charge/discharge current, and 12kW off-grid continuous output, this heavy-duty unit delivers top-tier performance. Equipped with dual AC output ports, built-in battery and load breakers, and smart generator automation, it guarantees continuous power and maximum solar efficiency.
Key Features & Benefits
Ultra-High 24kW PV Input: Equipped with 2 MPPT trackers and 4 input strings to capture maximum solar energy across multiple roof layouts.
Massive 250A Charge & Discharge: Rapidly charges 48V battery banks and easily supplies heavy, power-intensive loads during outages.
12kW Continuous Off-Grid Output: Provides dependable high-capacity pure sine wave output for heavy residential and commercial equipment.
Dual AC Output Ports: Dedicated smart load management allows you to separate and power critical vs. non-essential circuits independently.
Smart Generator & AC Coupling: Features a dedicated generator port supporting up to 19.2kW generator/AC-coupling input with automatic generator start/stop control.
Multi-Source Battery Wake-Up: Intelligently revives sleep-mode or depleted lithium batteries using PV solar, AC grid, or generator power.
Integrated Circuit Protection: Built-in battery and load breakers enhance installation safety and eliminate the need for external breaker enclosures.
Massive Scalability: Supports parallel connection of up to 16 units for expanding single-phase or multi-phase power systems.
Technical Specifications
Solar / PV String Input Data
Inverter Topology: Eco Hybrid / Pure Sine Wave
Max. DC PV Input Power: 24,000W (24kW)
MPPT Trackers / Strings: 2 MPPTs / 4 Strings
AC Output & Off-Grid Performance
Rated Inverter Capacity: 14kW
Continuous Off-Grid Output Power: 12,000W (12kW)
AC Output Ports: Dual AC Outputs (Essential & Smart Load Ports)
Parallel Capability: Supports up to 16 units in parallel
Battery & Charging Parameters
Nominal Battery Voltage: 48V
Max. Charging / Discharging Current: 250A
Supported Battery Types: Lithium-ion / LiFePO4 / Lead-Acid
Battery Wake-Up Function: PV / AC Grid / Generator Multi-Source Activation
Generator & System Integration
Generator Port: Dedicated Input Port
Gen / AC Coupling Input: Up to 19.2kW
Generator Control: Automatic Start / Stop Signal
Built-in Protection: Integrated Battery Breaker & Load Breaker
Display Interface: Digital LCD Screen with Touch/Button Navigation
