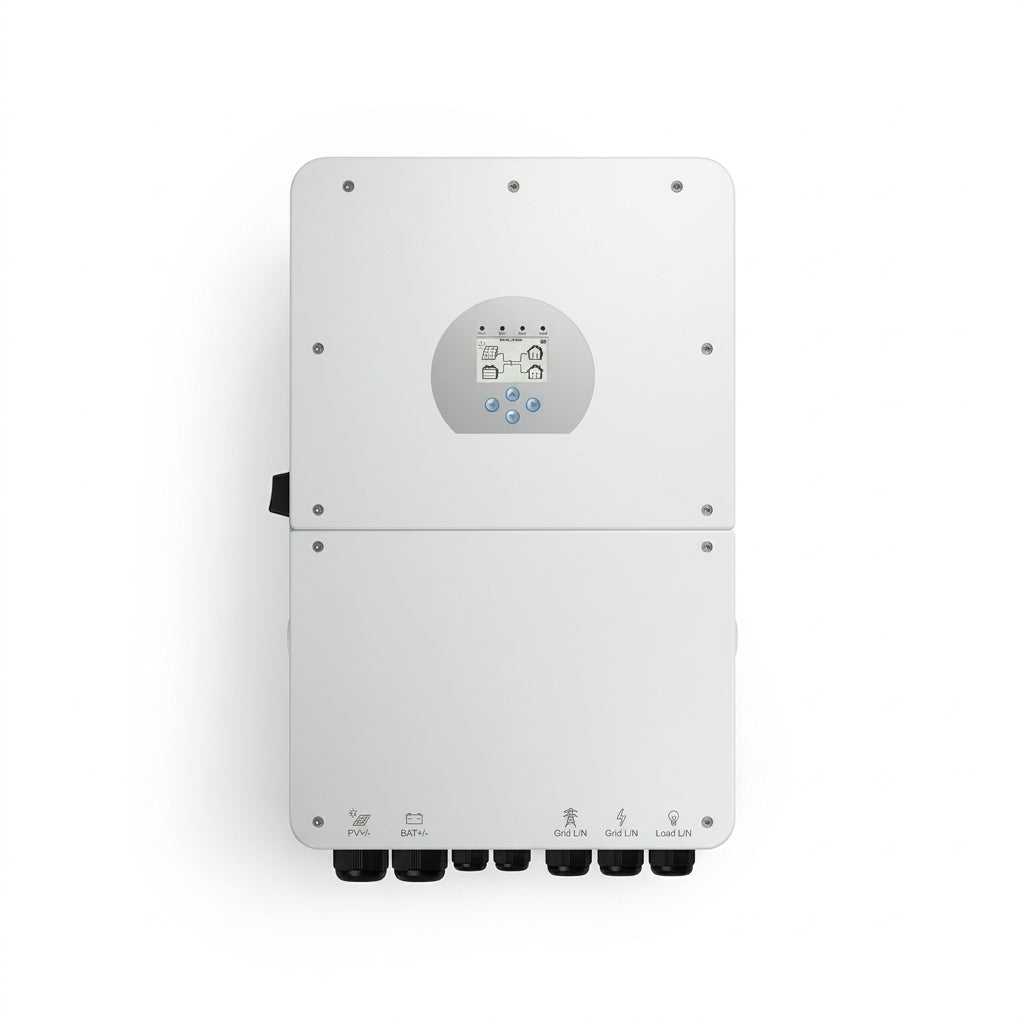

SMTE 16kW Hybrid Inverter 48V Single-Phase – Super Hybrid Solar Inverter (IP65)
SMTE 16kW Hybrid Inverter 48V Single-Phase – Super Hybrid Solar Inverter (IP65)
Engineered for high-demand residential estates, commercial facilities, and off-grid power systems, the 16kW Hybrid Inverter 48V Single-Phase delivers unmatched power capacity and intelligent energy management. Supporting massive charge/discharge currents, DC and AC coupling to retrofit existing solar arrays, and parallel scalability up to 16 units, this high-performance inverter ensures seamless backup power, eliminates load-shedding downtime, and maximizes energy self-consumption.
Key Features & Benefits
16kW Super Hybrid Capacity: Delivers massive continuous single-phase power to easily handle heavy residential and commercial electrical loads.
Ultra-High Battery Current: Supports up to 275A continuous charging and 300A discharging current for rapid battery replenishment and heavy surge demands.
Multi-Mode Operation: Fully programmable controller supporting On-Grid, Off-Grid, UPS, Self-Consumption, and Grid Feed-in modes.
AC & DC Retrofit Coupling: Easily retrofits with existing solar systems using both AC and DC coupling configurations.
Massive Parallel Scalability: Supports parallel connection of up to 16 units for expandable grid-tied and off-grid configurations.
Diesel Generator & AC Integration: Stores energy from backup diesel generators with configurable AC, solar, and generator charging priorities.
Built-in Power Limiter & Grid Protection: Integrated power limiter prevents excess feed-in to the grid where net-metering restrictions apply.
Rugged IP65 Weatherproof Enclosure: Built for indoor or outdoor wall-mounting with smart, quiet fan cooling (<30dB).
Smart Visual Interface: Features a full-color touch LCD screen with real-time power flow visualization, plus Wi-Fi and GSM monitoring support.
Technical Specifications
System & Output Data
Rated Inverter Capacity: 16kW (16,000W) Single-Phase
Operating Modes: On-Grid / Off-Grid / UPS Backup
Transfer & Recovery: Auto restart while AC is recovering; Auto Earth Bond relay feature
Parallel Capability: Up to 16 inverters in parallel
Battery Input Data
Battery Type Compatibility: Lithium-ion / Lead-Acid
Battery Voltage Range: 43V – 60V (48V Nominal)
Max. Charging Current: 275A
Max. Discharging Current: 300A
Charging Curve: 3-Stage / Equalization with Lithium Self-Adaptation to BMS
External Temperature Sensor: Included
General & Mechanical Data
Dimensions (W × H × D): 422 mm × 702 mm × 281 mm
Net Weight: 34.5 kg
Ingress Protection Rating: IP65 (Wall-Mounted)
Noise Level: <30 dB
Operating Temperature: -25°C to +55°C
BMS Communication: RS485 / CAN
Certifications: NRS 097 & COCT Certified
Warranty: 5-Year Warranty
