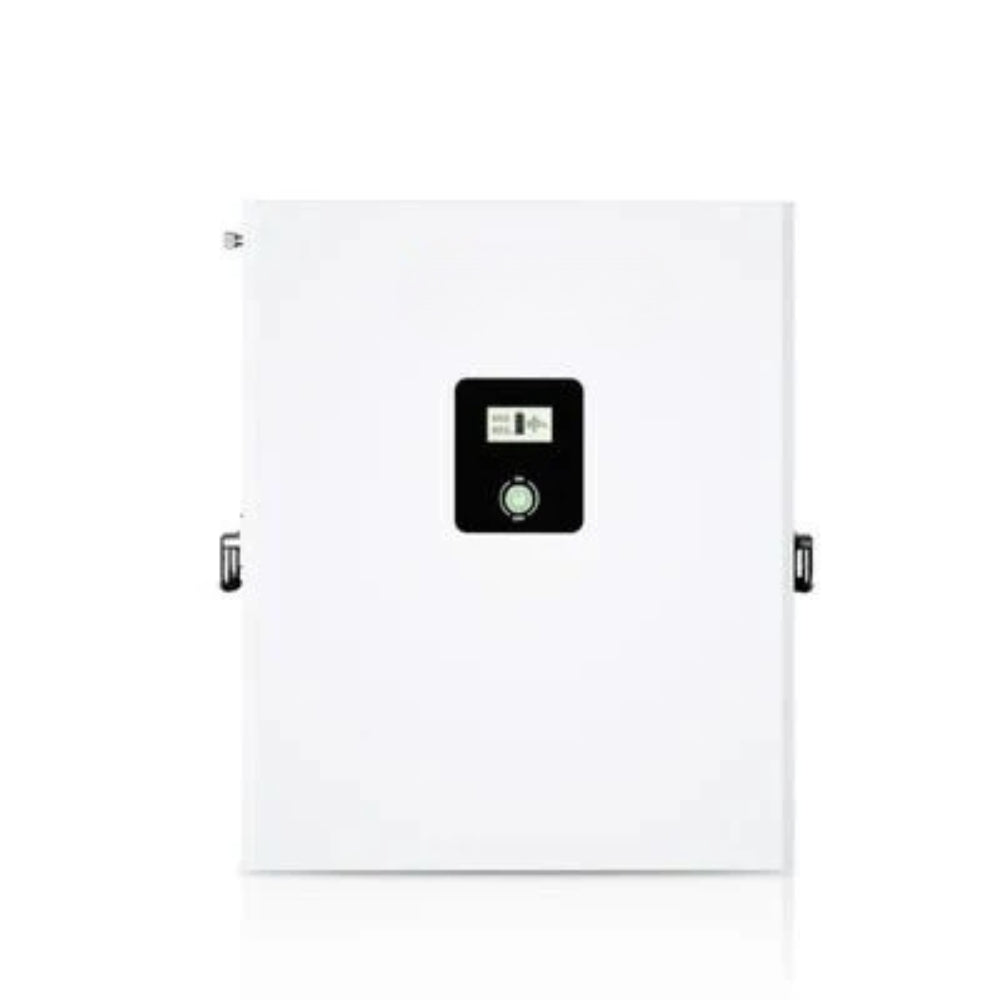

SMTE 2.5kWh 24V (25.6V) 100Ah LiFePO4 Lithium Battery – Wall-Mounted Solar Energy Storage

Power your home, apartment, office, or small off-grid solar installation with the 2.5kWh 24V (25.6V) 100Ah LiFePO4 Lithium Battery. Engineered with high-grade Lithium Iron Phosphate ($\text{LiFePO}_4$) chemistry and an intelligent Battery Management System (BMS), this compact energy storage unit delivers 2.5kWh of clean, dependable backup power. Featuring over 6,000 deep charge/discharge cycles at 80% DoD, multi-protocol communication (RS485 and CAN), modular parallel scalability up to 6 units, and a central LCD control panel, it provides reliable energy independence against load shedding.

Key Features & Benefits

• Compact 2.5kWh / 100Ah Storage: Supplies 25.6V (24V system) nominal power to reliably run lighting, Wi-Fi routers, TV setups, laptops, and essential household appliances.

• Long-Term $\ge 6000$ Cycle Life: Premium $\text{LiFePO}_4$ prismatic cell chemistry offers superior thermal stability, high efficiency, and over 6,000 cycles for a decade of dependable service.

• High Usable 95% Depth of Discharge (DoD): Maximizes usable energy extraction while maintaining long-term battery cell health.

• Multi-Protocol Inverter Communication: Integrated RS485 and CAN interfaces enable seamless communication and plug-and-play synchronization with leading 24V hybrid inverters.

• Modular Parallel Scalability: Supports parallel connection of up to 6 units to scale total storage capacity up to 15kWh for growing power demands.

• Central Digital LCD Interface: High-contrast display with a power push-button provides real-time monitoring of battery capacity, voltage, and operational status.

• Space-Saving Wall-Mounted Chassis: Ultra-compact white enclosure with side lifting handles allows neat, clean wall mounting in tight indoor spaces.

• Comprehensive BMS Safety: Built-in intelligent BMS with integrated circuit protection safeguards against overcharge, overdischarge, overcurrent, short circuits, and thermal extremes.

Technical Specifications

Battery Performance & Capacity

• Series / Model: LPBF24100-M / 24V Series

• Battery Chemistry: Lithium Iron Phosphate ($\text{LiFePO}_4$)

• Nominal Energy: 2.5 kWh (2.56 kWh)

• Nominal Voltage: 25.6 V (24V System)

• Rated Capacity: 100 Ah

• Operating Voltage Range: 24.0 V – 28.8 V

• Depth of Discharge (DoD): $\ge 95\%$

• Cycle Life: $\ge 6000$ Cycles @ 25°C, 80% DOD

• Scalability: Up to 6 Units in Parallel (Up to 15 kWh)

Current & Output Data

• Max. Charge & Discharge Current: 110 A (120s)

• Recommended Charge / Discharge Current: $\le 60$ A

• Max. Continuous Output Power: 2750 W

Physical, Environmental & Mechanical Data

• Dimensions (W × H × D): ~345 mm × 430 mm × 195 mm

• Net Weight: Approx. 22 kg – 28 kg

• Display Interface: Central Digital LCD Screen + Power Button

• Communication Ports: RS485 / CAN Bus

• Ingress Protection Rating: IP21 (Indoor Wall-Mount)

• Operating Temperature: Charge: 0°C to +65°C | Discharge: -20°C to +65°C

• Certifications: UN38.3, CE-EMC, IEC 62619, MSDS

• Warranty: 5-Year Warranty
