SMTE 30kWh 52V 600Ah LiFePO4 Lithium Battery – High-Capacity Solar Energy Storage (30/24 Low Voltage, 38kW Peak Discharge)

Power large estates, luxury residences, multi-tenant properties, or commercial operations with the 30kWh (30/24) 52V 600Ah LiFePO4 Lithium Battery. Built with high-grade Lithium Iron Phosphate ($\text{LiFePO}_4$) chemistry and an advanced Shunt Trip-protected Battery Management System (BMS), this floor-standing storage tower delivers 24kWh to 27kWh of daily usable energy. Designed to suit 48V low-voltage hybrid inverter systems up to 25kVA rated continuous capacity, it features a massive 750A peak discharge capability (38kW), pre-wired dual $2\times 95\text{ mm}^2$ Permopower DC fly leads per electrode, dual RJ45 CAN Bus ports, and an expected service life of over 16 to 20 years for ultimate load-shedding protection.

Key Features & Benefits

• Massive 30kWh Total Storage (24–27kWh Usable): Delivers 24kWh at 80% DoD and up to 27kWh at 90% DoD to comfortably run heavy multi-unit household appliances, central HVAC systems, and commercial machinery.

• Massive 38kW / 750A Peak Discharge: Delivers 600A continuous discharge (30kW) and up to 750A peak surge (38kW) to effortlessly start high-draw motors and industrial compressors.

• Exceptional >16-Year Service Life: Premium $\text{LiFePO}_4$ cell chemistry guarantees over 5,500 cycles at 80% DoD (>16 years expected life) and over 7,500 cycles at 50% DoD (>20 years expected life), backed by a 10-year warranty.

• BMS-Actuated Shunt Trip Circuit Breaker: High-current breaker automatically trips via BMS detection during critical electrical faults and includes manual reset capability.

• Heavy-Duty Dual $2\times 95\text{ mm}^2$ DC Permopower Fly Leads: Fitted with pre-wired positive and negative heavy-gauge fly leads per electrode for low-resistance, high-current inverter coupling.

• Smart CAN Bus & USB Troubleshooting: Dual RJ45 CAN Bus communication ports provide seamless synchronization with leading 48V hybrid inverters, along with a USB serial interface for diagnostic programming.

• Integrated Human Interface: Equipped with a 0–100% State of Charge (SOC) visual display, error light indicator, and error reset button.

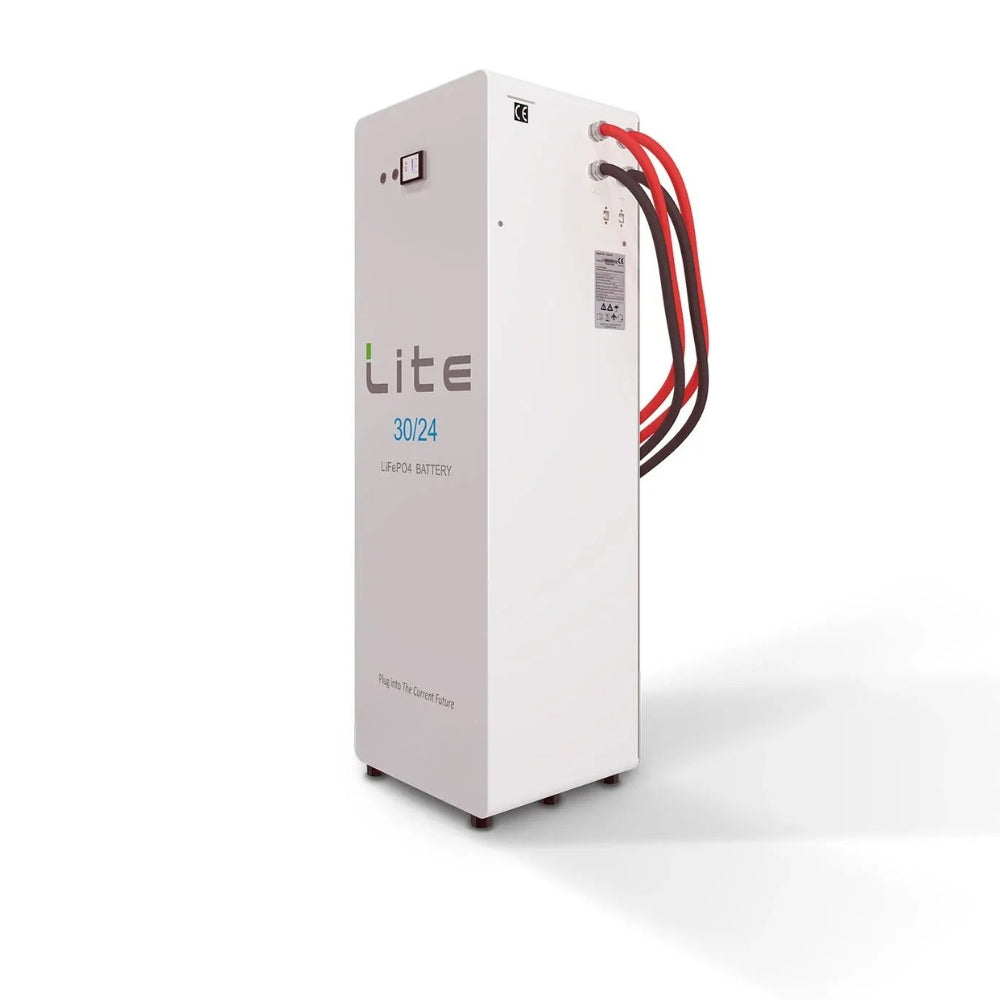

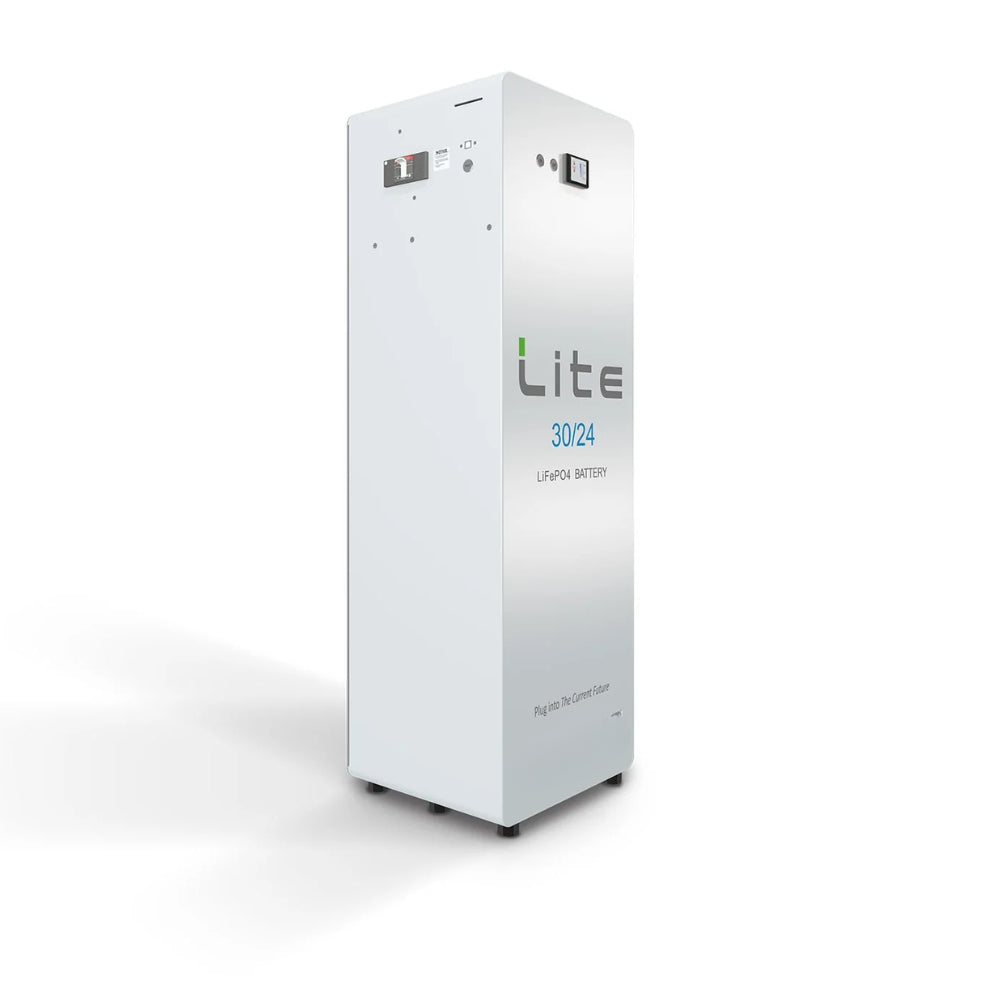

• Durable White Aluminum Tower: Rugged white painted aluminum chassis with solid base feet and recessed side handles, engineered for clean indoor floor placement.

Technical Specifications

Battery Performance & Capacity

• Model: LiTE Home / Business 30/24

• Battery Chemistry: Lithium Iron Phosphate ($\text{LiFePO}_4$)

• Total Energy Capacity: 30 kWh

• Energy Capacity @ 80% DoD: 24 kWh

• Energy Capacity @ 90% DoD: 27 kWh

• Current Capacity: 600 Ah

• Nominal Voltage: 52 V (To suit 48V Inverters | Min: 47V, Max: 56V)

• Max. Recommended Inverter Rated Power: 25 kVA (Continuous)

• Short Circuit Current: 12 kA

Charge & Discharge Parameters

• Max. & Continuous Charge Current: 600 A (30 kW Charge Power)

• Continuous Discharge Current / Power: 600 A / 30 kW

• Max. Peak Discharge Current / Power: 750 A / 38 kW

• Cycle Life / Warranty: 10 Years or 6,000 Cycles @ 80% DoD

• Expected Service Life: > 16 Years (> 5,500 Cycles @ 80% DoD) | > 20 Years (> 7,500 Cycles @ 50% DoD)

Safety, Interface & Mechanical Data

• DC Connections: $2 \times 95\text{ mm}^2$ Permopower Fly Leads per Electrode (Positive & Negative)

• BMS Protection: Shunt Trip Circuit Breaker, Overcurrent, Cell Under/Over Voltage, Temperature, Weak Cell Detection, Min SOC Control

• Control / Interfaces: RJ45 CAN Bus (Inverter Link & Paralleling), USB Serial Port (Troubleshooting), SOC Display (0–100%), Error Reset Button

• Enclosure: White Painted Aluminum Chassis (IP20 Rated)

• Battery Dimensions (H × W × D): 1300 mm × 413 mm × 370 mm

• Crated Dimensions (H × W × D): 1396 mm × 586 mm × 568 mm

• Battery Net Weight: 254 kg (Crated: 293 kg)
