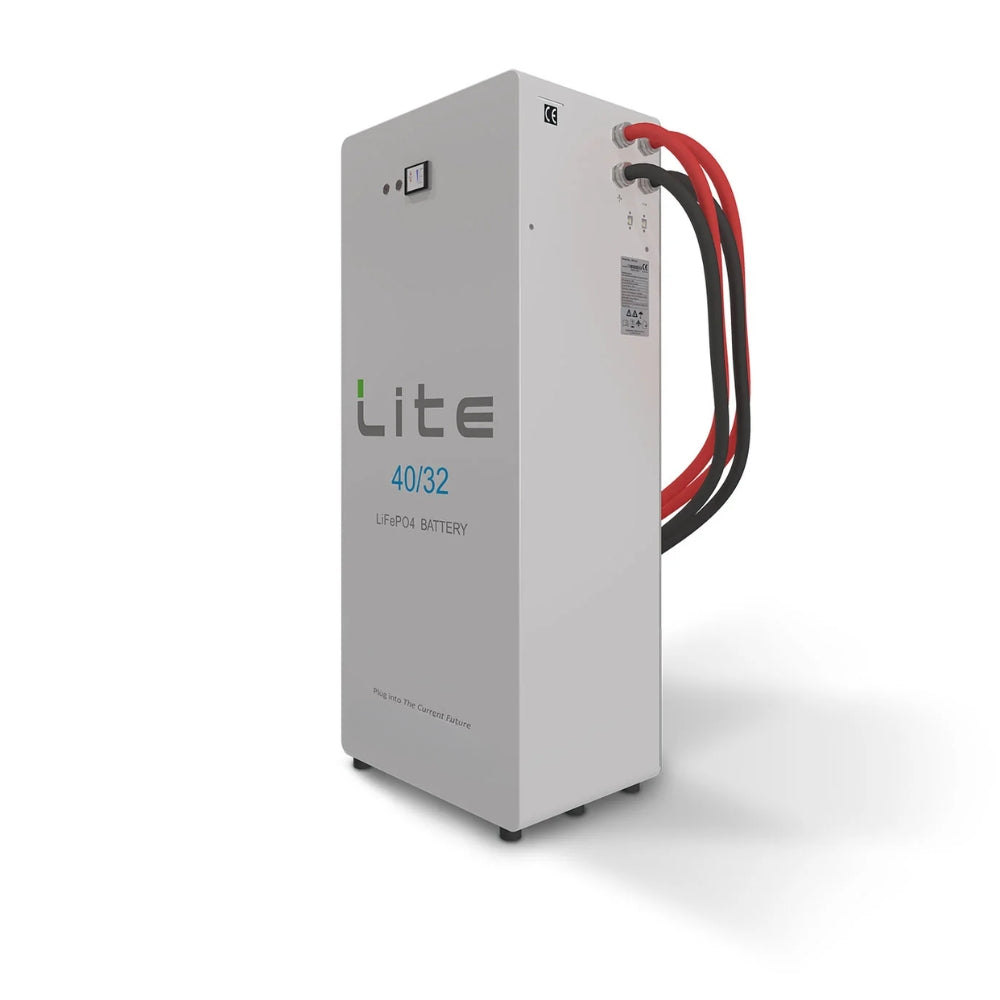

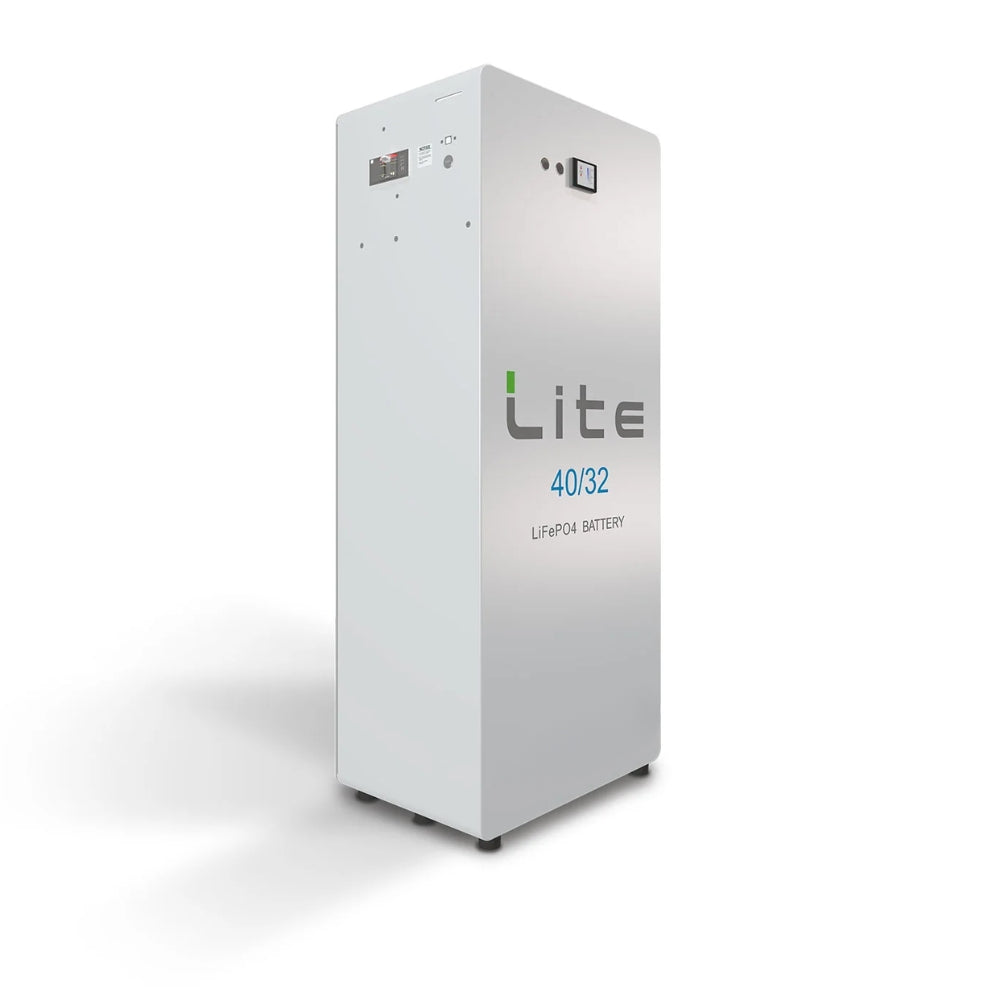

SMTE 40kWh 52V 800Ah LiFePO4 Lithium Battery – High-Capacity Solar Energy Storage (40/32 Low Voltage, 38kW Peak Discharge)

Power commercial operations, large industrial sites, multi-dwelling residential complexes, or off-grid agricultural facilities with the 40kWh (40/32) 52V 800Ah LiFePO4 Lithium Battery. Engineered with high-grade Lithium Iron Phosphate chemistry and an advanced Shunt Trip-protected Battery Management System (BMS), this floor-standing storage tower delivers 32kWh to 36kWh of daily usable energy. Designed to suit 48V low-voltage hybrid inverter systems up to 25kVA continuous capacity, it features a massive 750A peak discharge capability (38kW), pre-wired dual $2\times 95\text{ mm}^2$ Permopower DC fly leads per electrode, dual RJ45 CAN Bus ports, and an expected service life of over 16 to 20 years for ultimate load-shedding protection.

Key Features & Benefits

• Massive 40kWh Total Storage (32–36kWh Usable): Delivers 32kWh at 80% DoD and up to 36kWh at 90% DoD to comfortably run high-draw commercial machinery, multi-unit residential loads, and central HVAC systems.

• Massive 38kW / 750A Peak Discharge: Delivers 600A continuous discharge (30kW) and up to 750A peak surge (38kW) to effortlessly handle heavy inductive starts and commercial motor spikes.

• Exceptional >16-Year Service Life: Premium LiFePO4 cell chemistry guarantees over 5,500 cycles at 80% DoD (>16 years expected life) and over 7,500 cycles at 50% DoD (>20 years expected life), backed by a 10-year warranty.

• BMS-Actuated Shunt Trip Circuit Breaker: High-current safety breaker automatically trips via BMS fault detection and features manual reset functionality for total protection.

• Heavy-Duty Dual $2\times 95\text{ mm}^2$ Permopower Fly Leads: Comes pre-fitted with positive and negative heavy-gauge DC fly leads per electrode for low-resistance, high-current inverter coupling.

• Smart CAN Bus & USB Diagnostics: Features dual RJ45 CAN Bus ports for seamless communication and parallel synchronization with leading 48V hybrid inverters, plus a USB serial interface for PC troubleshooting.

• Integrated Human Interface: Equipped with a 0–100% State of Charge (SOC) meter, error status LED indicator, and error reset button.

• Durable White Aluminum Chassis: Upright floor-standing tower built with high-grade white painted aluminum, solid base support feet, and recessed side grab handles for clean indoor placement.

Technical Specifications

Battery Performance & Capacity

• Model: LiTE Home / Business 40/32

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

• Total Energy Capacity: 40 kWh

• Energy Capacity @ 80% DoD: 32 kWh

• Energy Capacity @ 90% DoD: 36 kWh

• Current Capacity: 800 Ah

• Nominal Voltage: 52 V (To suit 48V Inverters | Min: 47V, Max: 56V)

• Max. Recommended Inverter Rated Power: 25 kVA (Continuous)

Charge & Discharge Parameters

• Max. & Continuous Charge Current: 600 A (30 kW Charge Power)

• Continuous Discharge Current / Power: 600 A / 30 kW

• Max. Peak Discharge Current / Power: 750 A / 38 kW

• Cycle Life / Warranty: 10 Years or 4,000 Cycles (Average 80% DoD, Max 90% DoD)

• Expected Service Life: > 16 Years (> 5,500 Cycles @ 80% DoD) | > 20 Years (> 7,500 Cycles @ 50% DoD)

Safety, Interface & Mechanical Data

• DC Connections: $2 \times 95\text{ mm}^2$ Permopower Fly Leads per Electrode (Positive & Negative)

• BMS Protection: Shunt Trip Circuit Breaker, Overcurrent, Cell Under/Over Voltage, Temperature, Weak Cell Detection, Min SOC Control

• Control / Interfaces: RJ45 CAN Bus (Inverter Link & Paralleling), USB Serial Port (Troubleshooting), SOC Display (0–100%), Error Reset Button

• Enclosure: White Painted Aluminum Chassis (IP20 Rated)

• Battery Dimensions (H × W × D): 1300 mm × 522 mm × 370 mm

• Battery Net Weight: 326 kg
