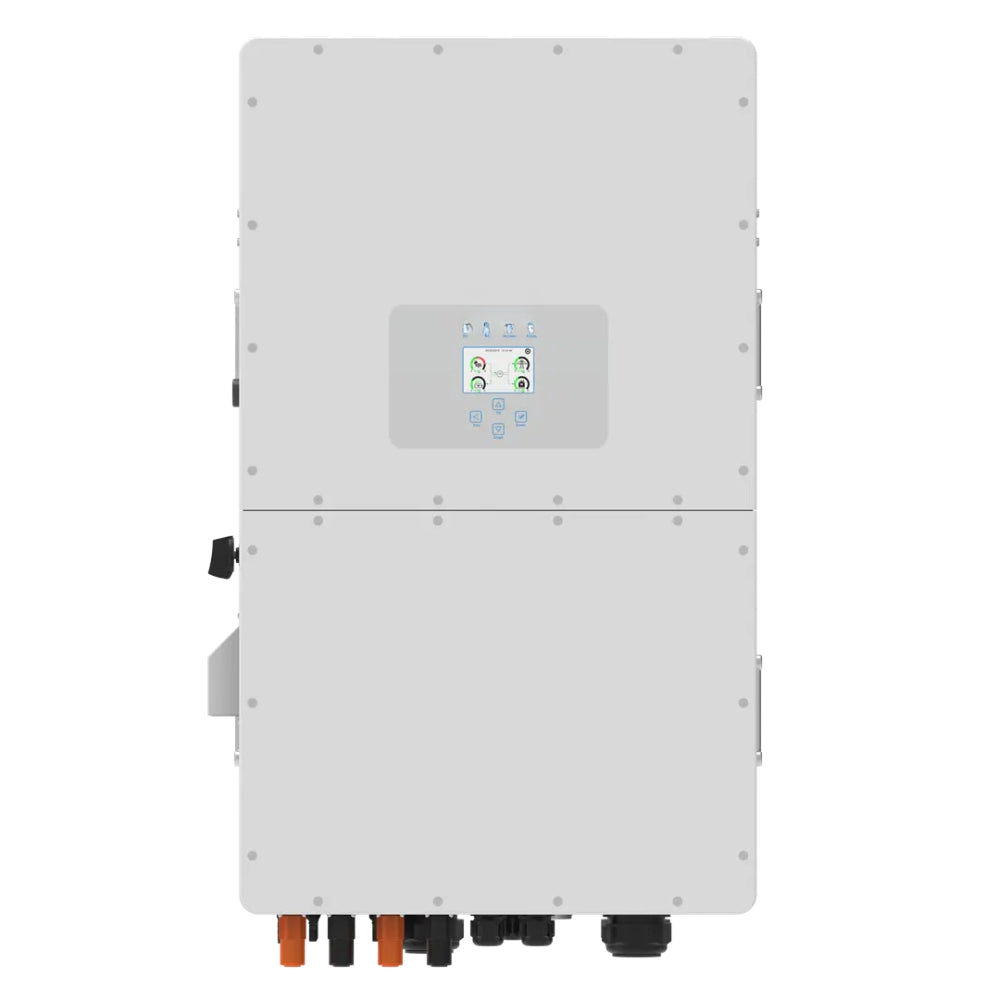

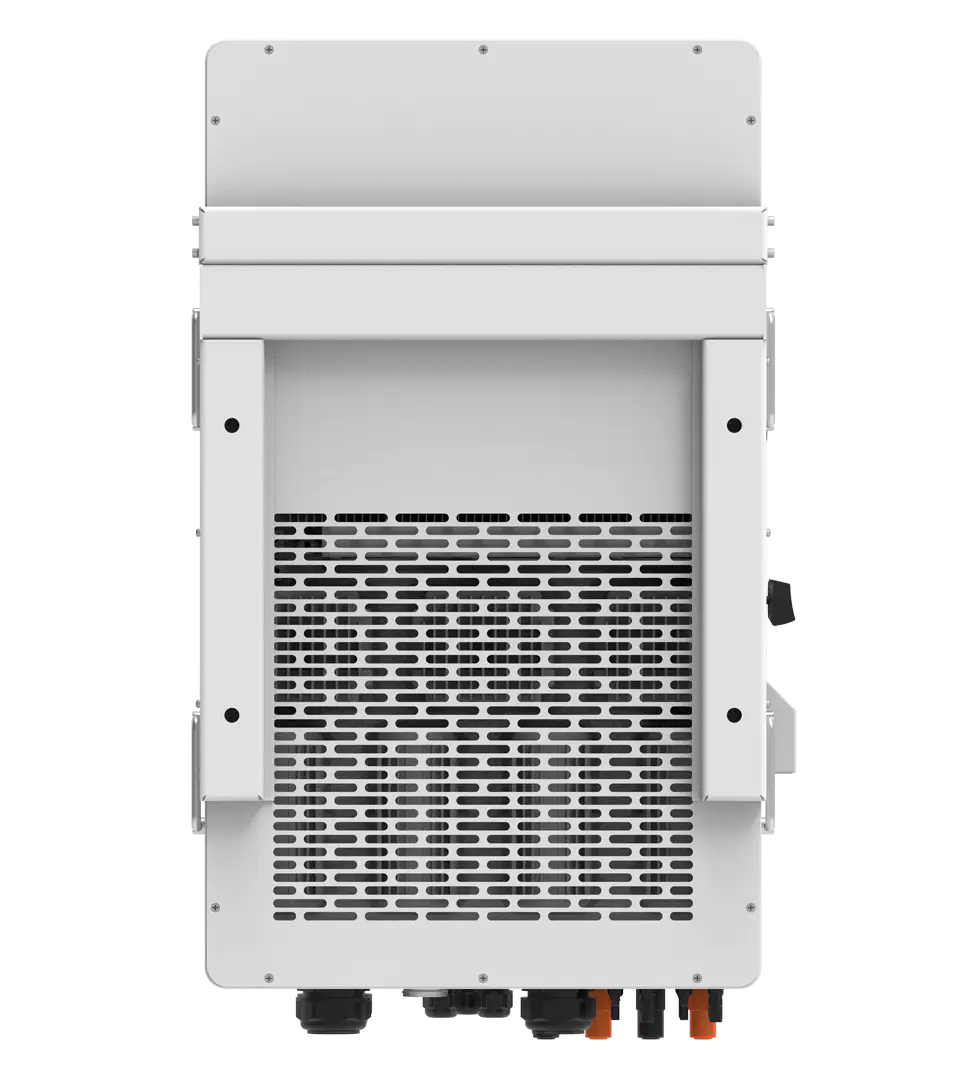

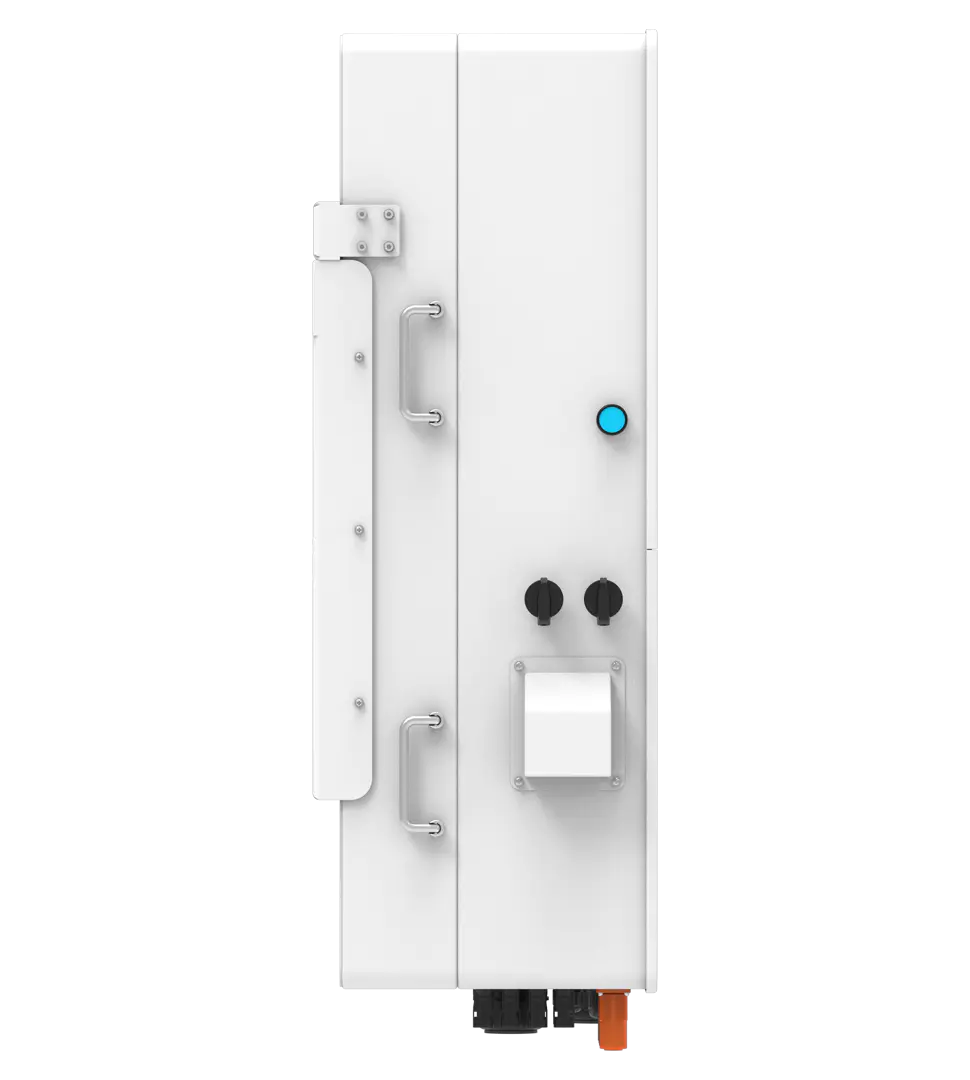

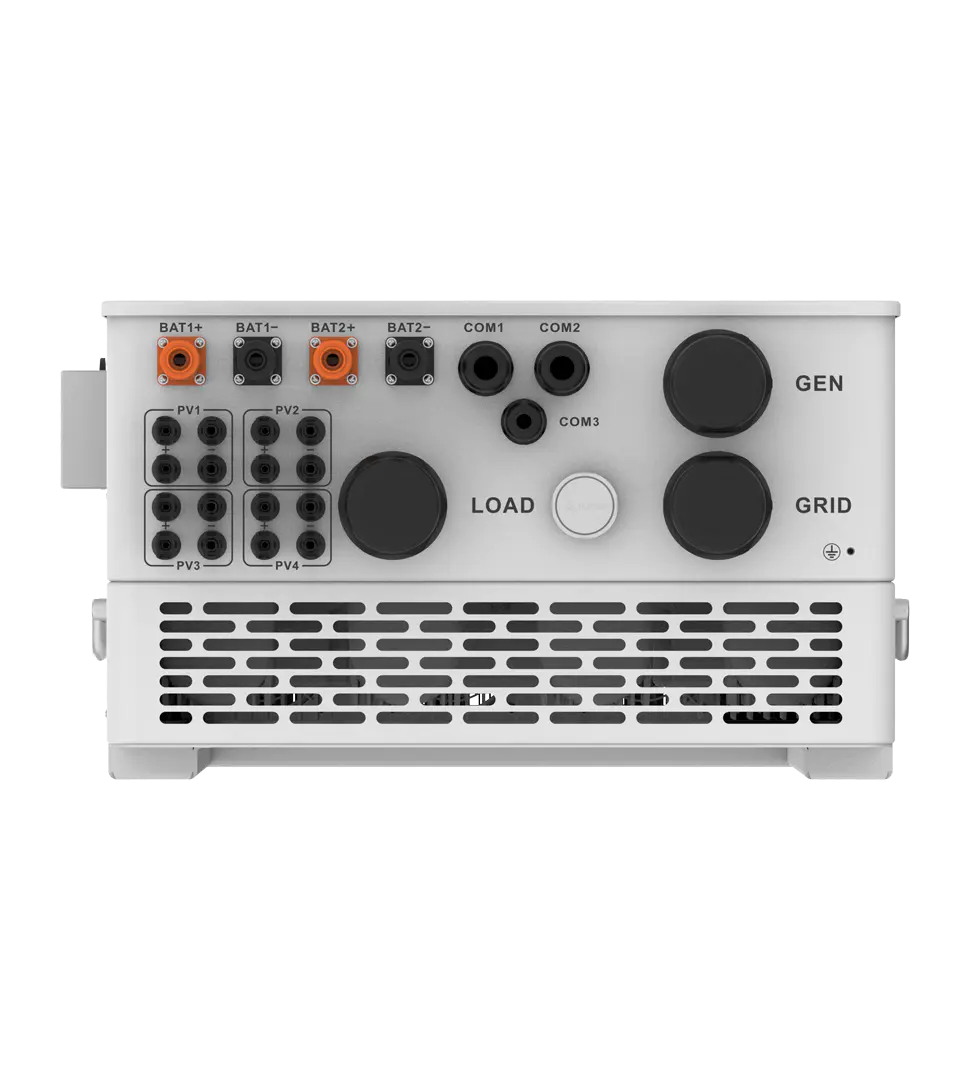

SMTE 50kW Three-Phase High Voltage Hybrid Inverter – IP65 Commercial
SMTE 50kW Three-Phase High Voltage Hybrid Inverter – IP65 Commercial
SMTE 50kW Three-Phase Hybrid Inverter – High Voltage Commercial Solar Inverter (IP65)
Scale large commercial operations, industrial facilities, or heavy agricultural setups with the 50kW Three-Phase High Voltage Hybrid Solar Inverter. Designed for maximum round-trip efficiency and demanding power loads, this high-performance inverter integrates with high-voltage battery banks to minimize transmission losses. Featuring 100% unbalanced three-phase output, dual Type II DC/AC surge protection, AC coupling retrofitting, and parallel scalability up to 10 units, it delivers dependable, uninterrupted energy management and peak performance.
Key Features & Benefits
High-Efficiency HV Architecture: Utilizes high-voltage battery banks to enhance overall operational efficiency, minimize resistive heat loss, and optimize energy storage.
100A Charge & Discharge Current: Delivers up to 100A continuous charging and discharging capability for rapid battery bank cycling and heavy load response.
100% Unbalanced Three-Phase Output: Each individual phase supports 100% unbalanced output, allowing complete flexibility when running unequal electrical loads across commercial circuits.
AC-Coupling Retrofit Ready: Seamlessly retrofits into existing grid-tied solar setups to transform them into full energy storage systems without rewiring the existing infrastructure.
Diesel Generator Integration: Directly integrates with backup diesel generators to store energy and maintain continuous power during prolonged grid outages.
Customizable Time-of-Use Scheduling: Program up to 6 custom charging and discharging time periods to take advantage of variable electricity tariffs and optimize self-consumption.
Massive Parallel Scalability: Supports parallel operation of up to 10 units for both on-grid and off-grid configurations, alongside multi-battery bank parallel setups.
Comprehensive Protection Suite: Equipped with Type II DC and AC surge arresters, DC polarity reverse protection, AC short-circuit/overvoltage monitoring, and island protection.
Technical Specifications
System & Output Data
Rated AC Output Power: 50,000W (50kW)
Grid Connection Type: Three-Phase (3-Phase)
Phase Output Support: 100% Unbalanced Phase Output Supported
Max. Efficiency: 97.6% (European Efficiency: 97.0%)
MPPT Efficiency: > 99.0%
Parallel Capability: Up to 10 Units in Parallel (On-Grid & Off-Grid)
Battery & System Interface
Battery Compatibility: High Voltage Lithium-Ion / LiFePO4 Battery Banks
Max. Charging Current: 100A
Max. Discharging Current: 100A
Time-of-Use Control: 6 Configurable Charging / Discharging Time Periods
Generator Support: Diesel Generator Energy Storage & Synchronization
Protection & Safety Features
Surge Protection: Integrated Type II SPD (Both DC and AC)
Electrical Protections: DC Polarity Reverse, AC Overcurrent / Overvoltage / Short Circuit Protection
Grid Safety: Islanding Protection, Ground Fault Current Monitoring, Thermal Monitoring
Mechanical & Display Data
Interface / Display: Multi-Parameter Color LCD Touchscreen with Navigation Keys
Enclosure Rating: IP65 Heavy-Duty Weatherproof Protection
Installation Style: Wall-Mounted / Heavy-Duty Industrial Mounting
