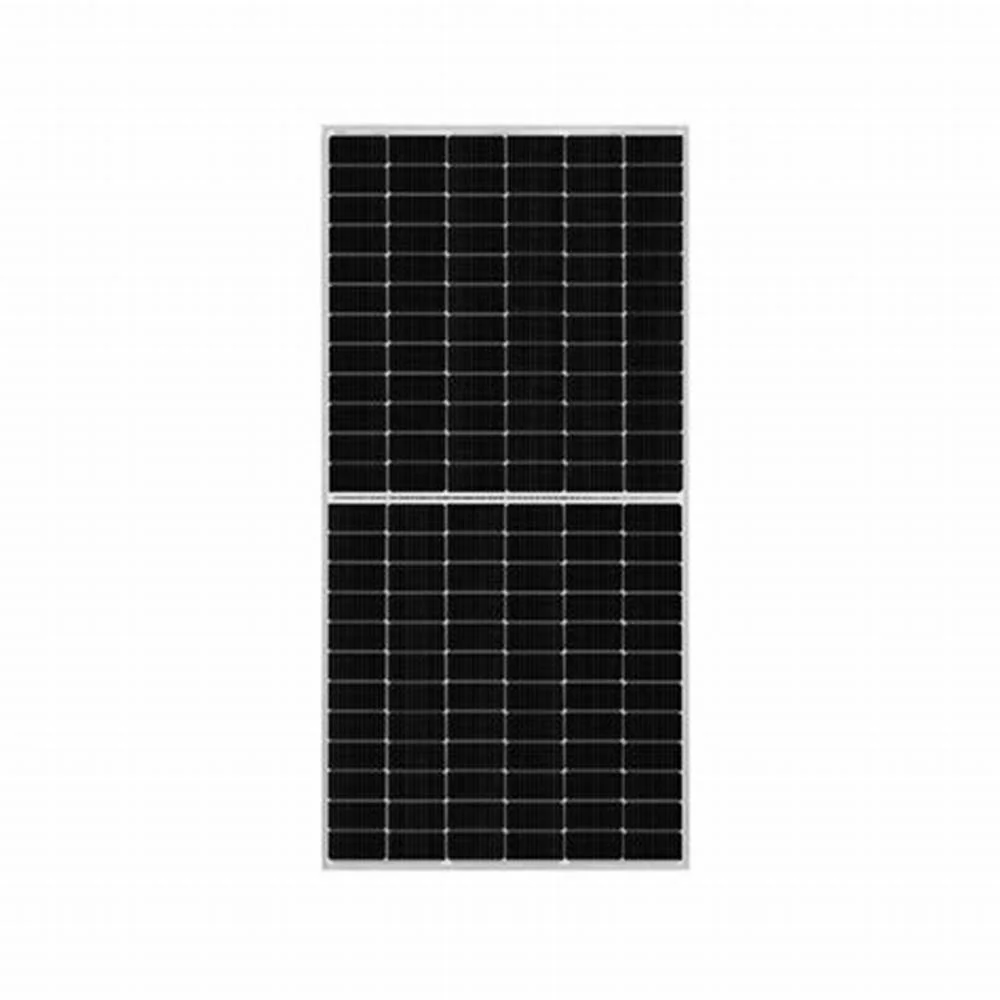

SMTE 560W Monocrystalline N-Type Half-Cell Solar Panel

Power your home, commercial property, or industrial setup with our 560W Monocrystalline N-Type Half-Cell Solar Panel. Engineered with cutting-edge N-Type technology and a 144 half-cell design, this high-performance module delivers superior energy conversion, outstanding low-light generation, and long-term durability in even the harshest environmental conditions.

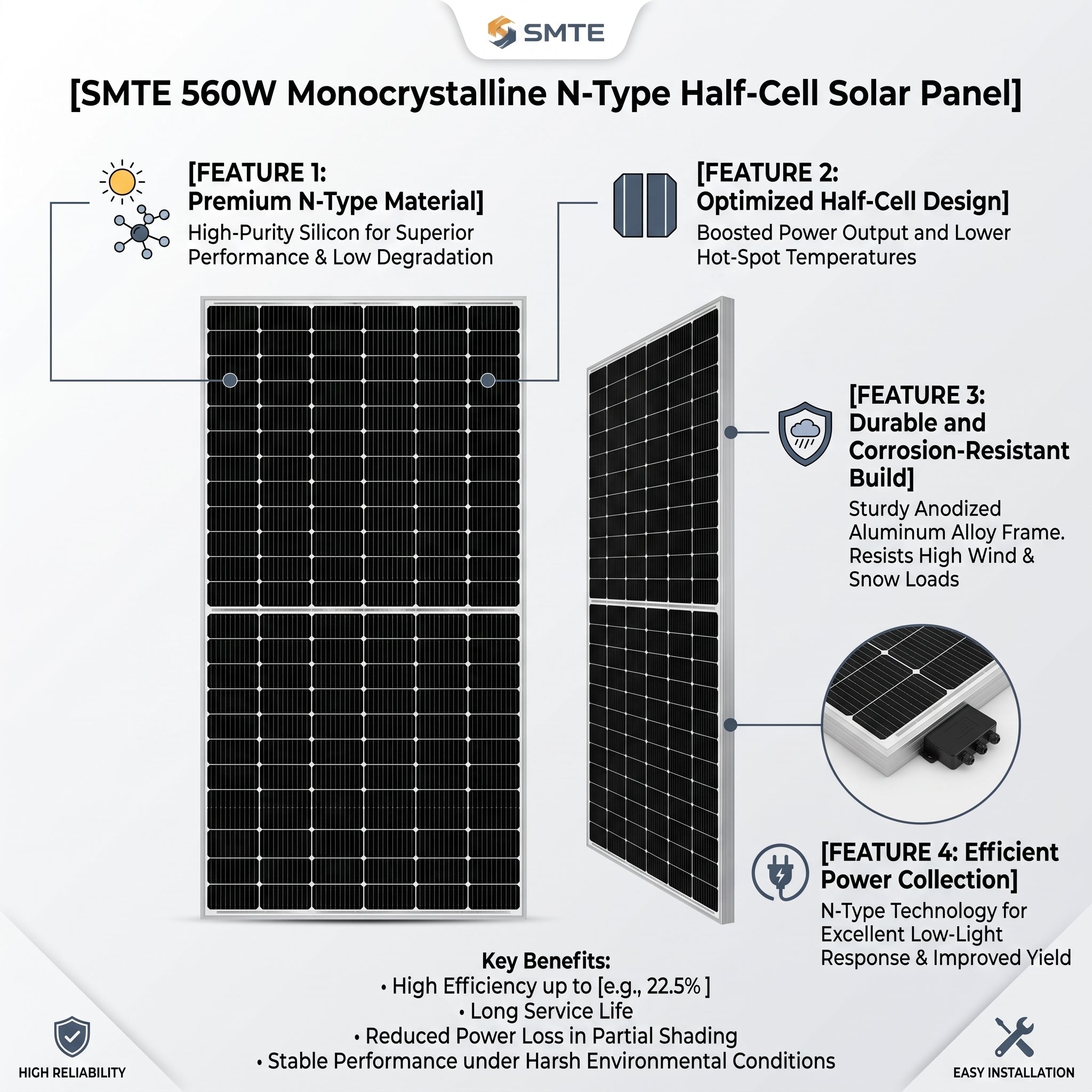

Key Features & Benefits
Next-Generation N-Type Technology: Provides significantly higher energy conversion efficiency, giving you maximum power output per square meter.

Superior Low-Light Performance: Generates consistent energy even in overcast, cloudy, or low-light morning/evening conditions.

144 Half-Cell Architecture: Reduces internal resistance and minimizes power loss caused by partial shading or debris.

Lower Degradation & Extended Lifespan: Engineered for minimal power loss over time, retaining >90% performance at 10 years and >80% performance after 20 years.

Excellent Temperature Coefficient: Maintains peak operational efficiency even in extreme heat and hot climates.

Heavy-Duty Weather Resistance: Built with a sturdy 30mm anodized aluminum alloy frame and tempered anti-reflective glass. PID-free, salt-mist, and ammonia resistant.

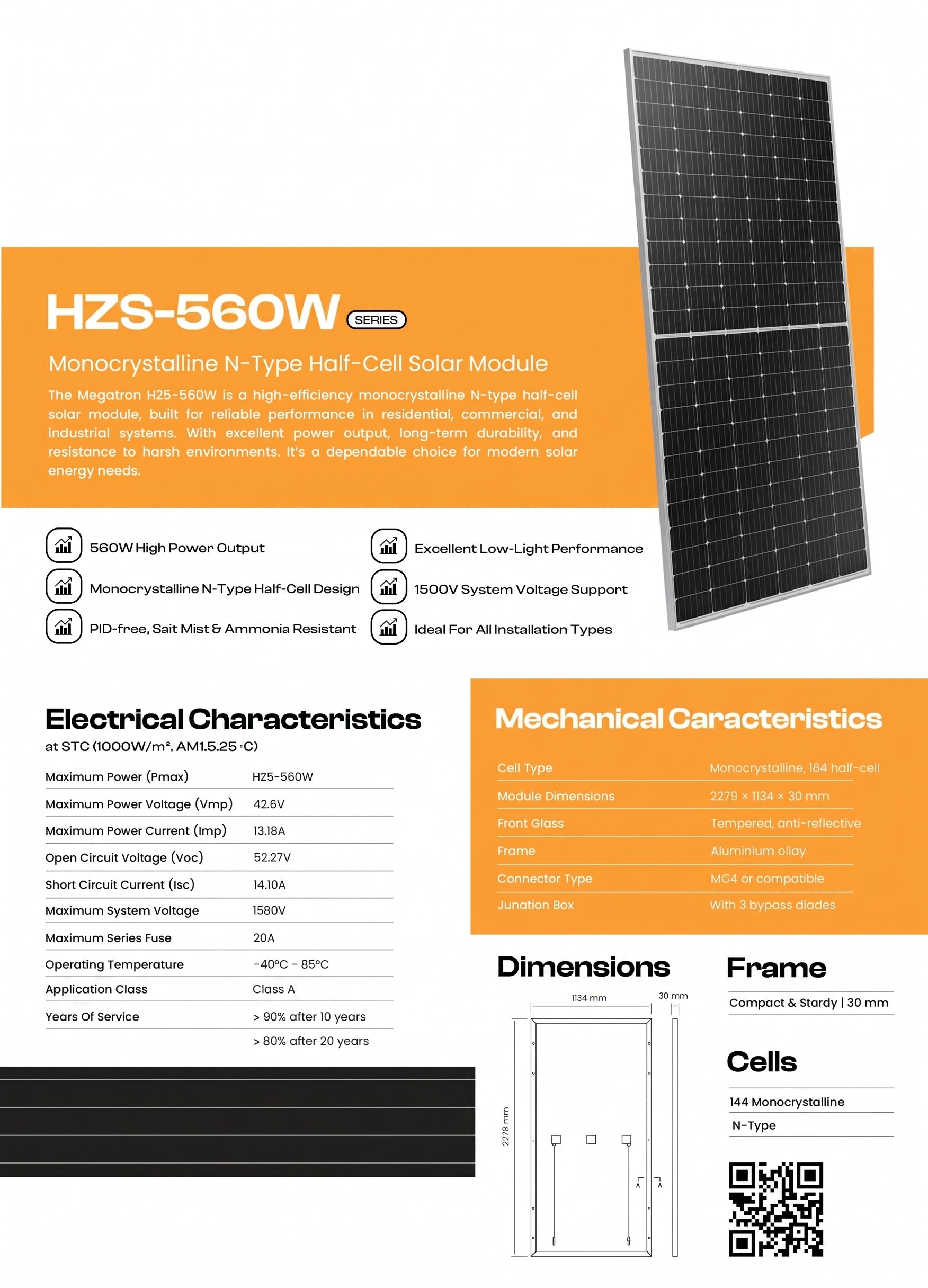

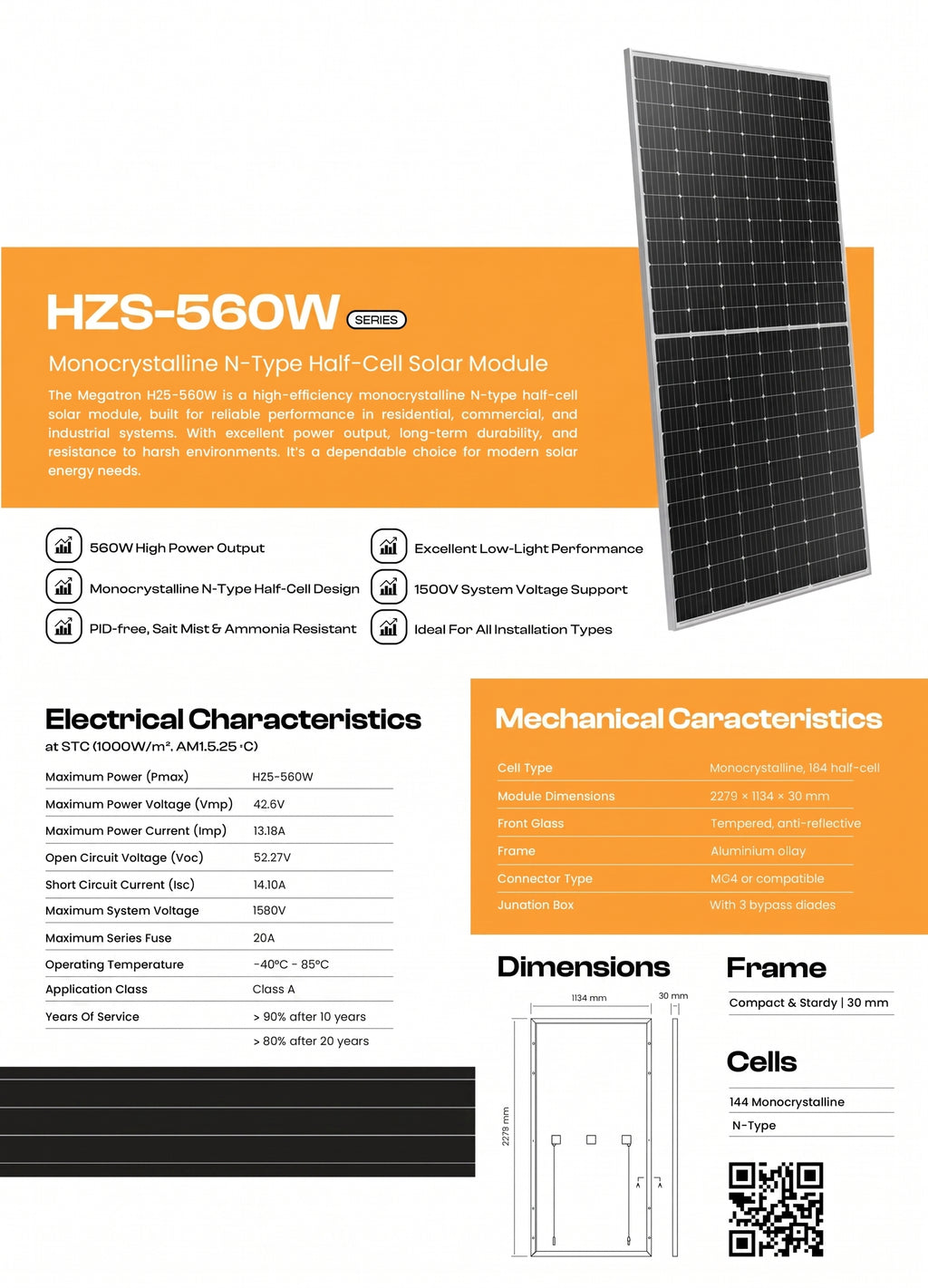

Technical Specifications
Electrical Characteristics (STC: 1000W/m², AM1.5, 25°C)
Maximum Power (Pmax): 560W

Maximum Power Voltage (Vmp): 42.5V

Maximum Power Current (Imp): 13.18A

Open Circuit Voltage (Voc): 52.27V

Short Circuit Current (Isc): 14.10A

Maximum System Voltage: 1500V DC

Maximum Series Fuse Rating: 20A

Operating Temperature: -40°C to +85°C

Application Class: Class A

Mechanical Specifications
Cell Type: N-Type Monocrystalline (144 Half-Cells)

Dimensions: 2279 mm × 1134 mm × 30 mm

Front Glass: High-transmission, anti-reflective tempered glass

Frame: Compact & sturdy 30mm anodized aluminum alloy

Junction Box: Weatherproof with 3 bypass diodes

Connector Type: MC4 / MC4 Compatible
