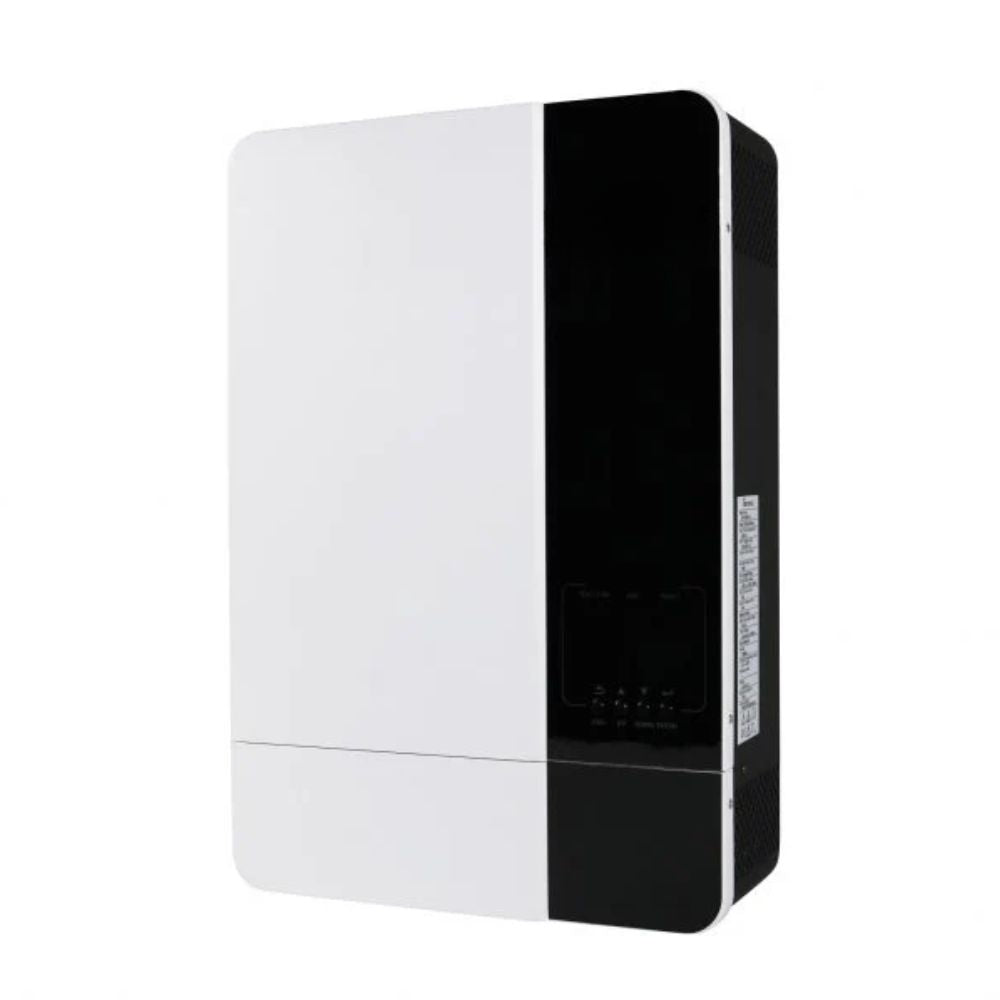

SMTE 5kW 48V Hybrid Solar Inverter – 450VDC MPPT Pure Sine Wave

Achieve complete energy security and reduce electricity costs with the 5kW 48V Hybrid Solar Inverter. Engineered for both residential and commercial solar installations, this versatile pure sine wave inverter features an integrated high-voltage 450VDC MPPT charge controller, battery-less operation capability, and parallel scalability up to 30kW. Whether you need an uninterruptible power supply during load-shedding or wish to optimize daily solar self-consumption, it delivers seamless and intelligent power management.

Key Features & Benefits

Integrated High-Voltage MPPT Controller: Supports up to 450VDC maximum PV input voltage to efficiently convert solar energy and optimize battery charging.

Flexible Battery-Free Operation: Operates with or without a 48V battery bank connected, allowing you to power daytime loads directly from solar panels and the grid.

Simultaneous PV & Grid Blending: Automatically blends solar power and grid energy when solar generation alone cannot meet heavy household or business load demands.

Massive Parallel Scalability: Supports parallel connection of up to 6 units to scale total system capacity up to 30kW for growing power demands.

Configurable Input Priority: Customize source priorities (Solar first, Utility first, or Battery first) and program charge/discharge schedules to maximize savings during off-peak hours.

Battery Equalization Function: Integrated equalization charging maintains optimal battery health, balances cell voltages, and extends overall service life.

Zero Grid Export Capability: Built-in zero export functionality prevents unauthorized feed-in to the utility grid where net metering is restricted.

Smart Remote Monitoring Ready: Compatible with optional plug-and-play Wi-Fi / GPRS dongles for real-time remote monitoring via mobile app and web browser.

Technical Specifications

Solar / PV String Input Data

Inverter Topology: Hybrid / Pure Sine Wave

Rated Output Power: 5000W (5kW)

Max. PV Array Open Circuit Voltage: 450VDC

Charge Controller Type: Integrated MPPT

Battery & Charging Parameters

Nominal Battery Voltage: 48VDC

Battery Operation: Operates with or without battery bank

Battery Chemistry Compatibility: Lithium-ion / LiFePO4 / Lead-Acid

Charging Strategy: Equalization Charging & Programmable Schedule Support

AC Input / Output & System Capabilities

Rated AC Output: 5000W Continuous Pure Sine Wave

Parallel Capability: Supports up to 6 units in parallel (up to 30kW capacity)

Grid Support: PV and Utility Grid Joint Blending & Zero Export Mode

Monitoring: Optional Wi-Fi / GPRS Remote Monitoring Dongle
