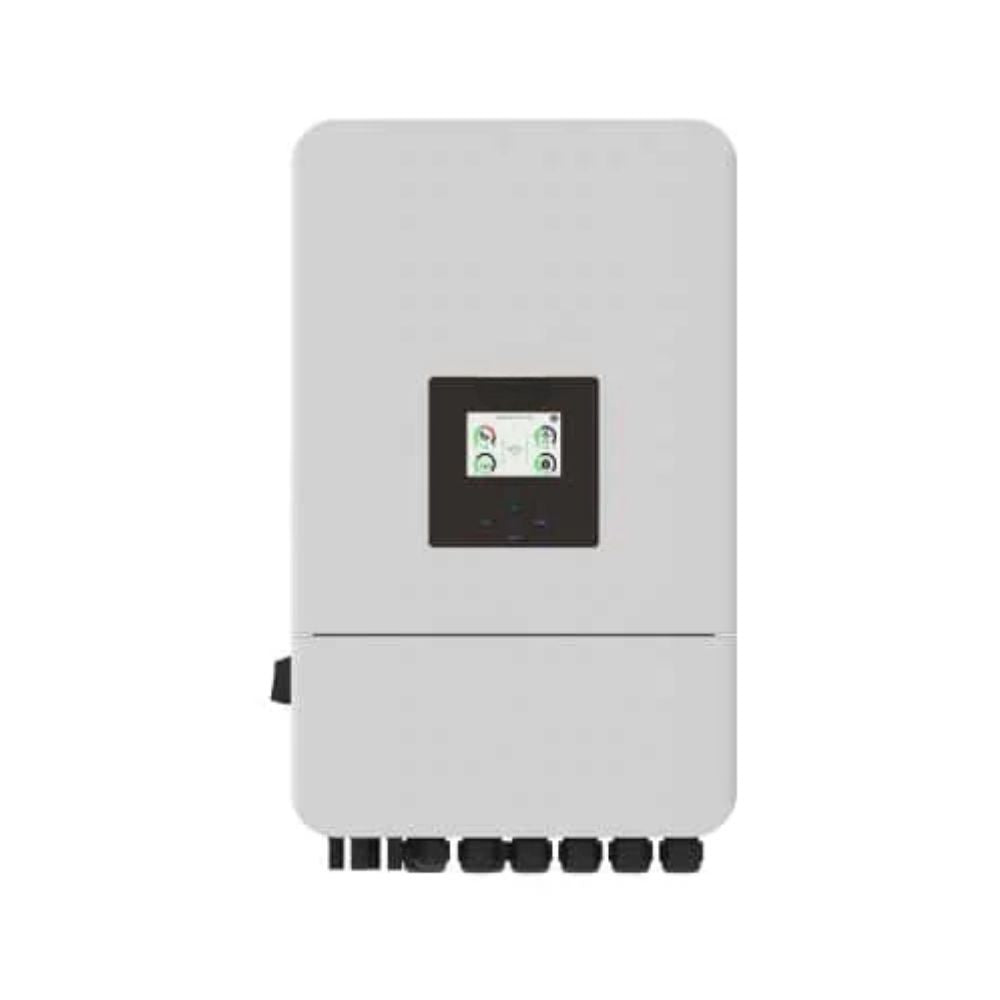

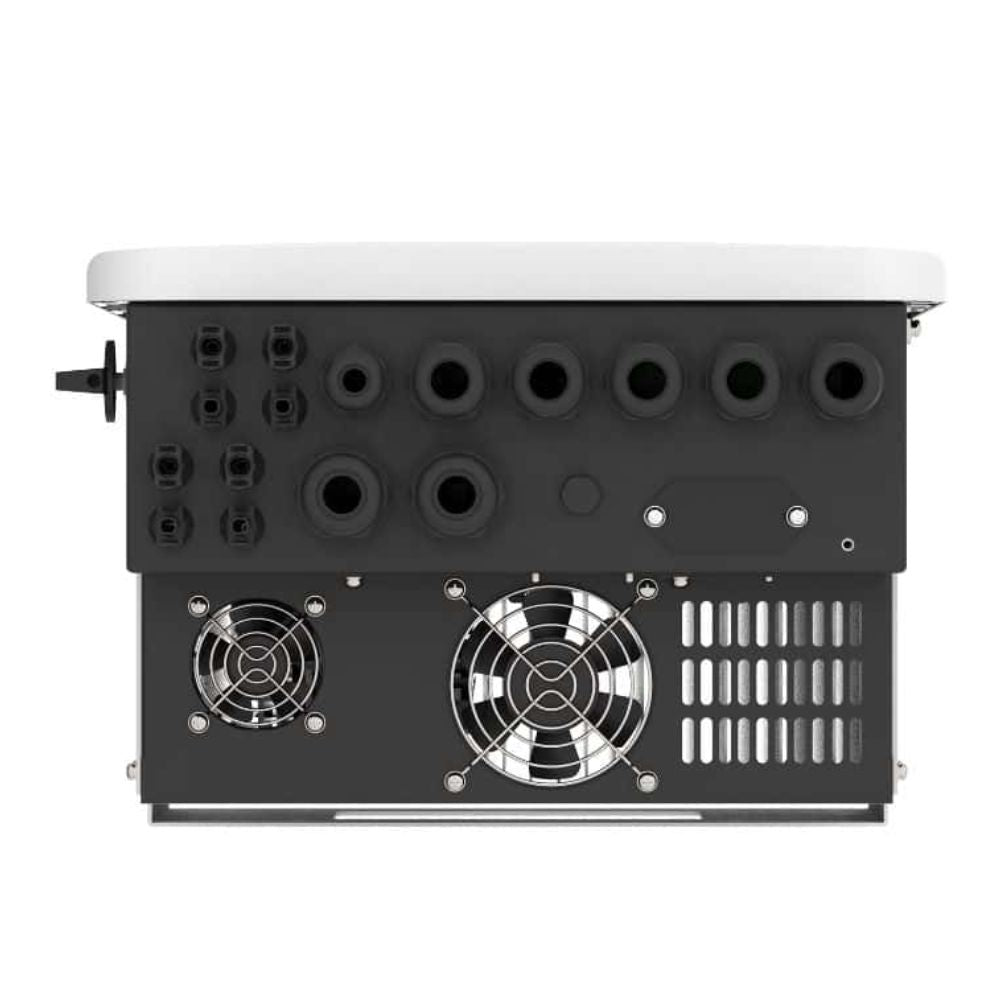

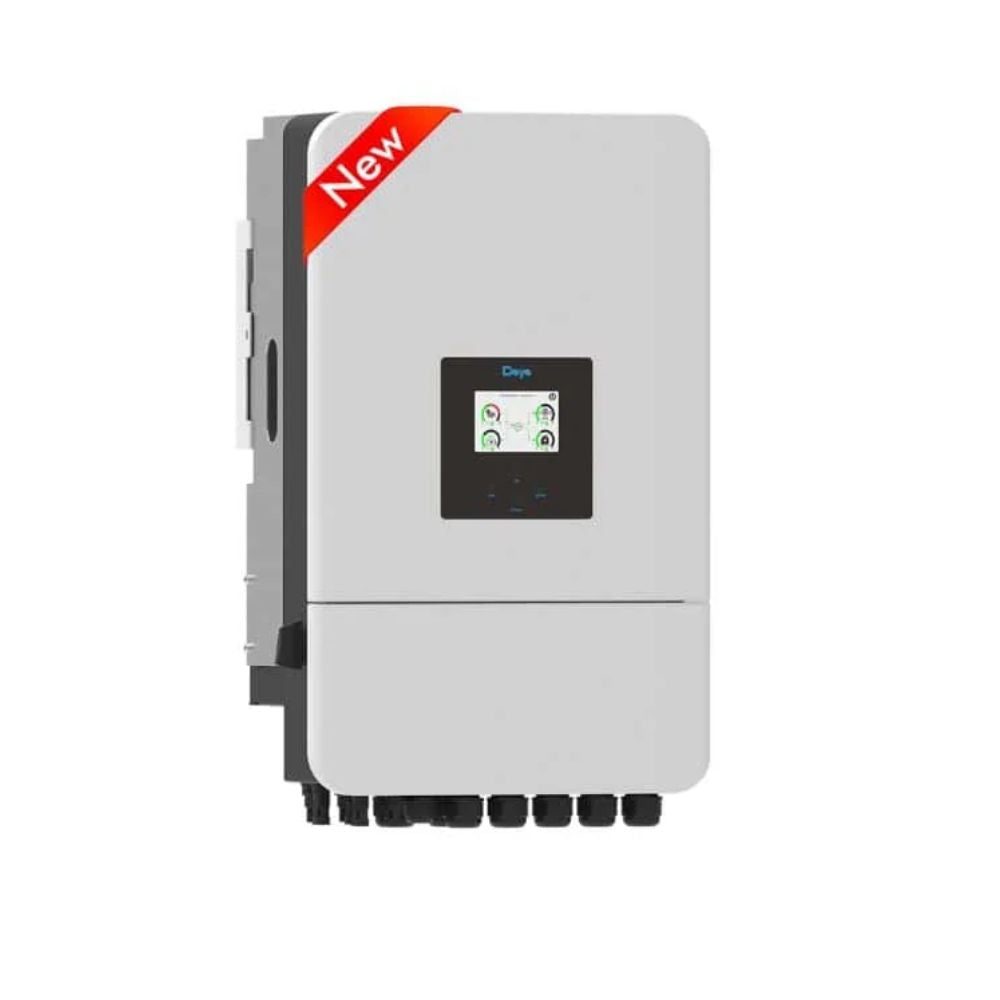

SMTE 5kW Hybrid Inverter V2 – 48V Dual MPPT Pure Sine Wave Solar Inverter
SMTE 5kW Hybrid Inverter V2 – 48V Dual MPPT Pure Sine Wave Solar Inverter
Optimize your home or business energy independence with the 5kW Hybrid Inverter V2. Engineered for high-efficiency solar conversion and intelligent battery management, this versatile pure sine wave inverter features dual MPPT controllers supporting up to 6,500W PV input, an ultra-fast 5ms grid-to-off-grid transfer time, and robust 120A charge/discharge capability. With included Wi-Fi monitoring and BMS communication hardware, it provides reliable backup power, seamless load-shedding protection, and efficient solar self-consumption.
Key Features & Benefits
High-Yield Solar Harvesting: Dual MPPT trackers support up to 6,500W PV input with a DC/AC ratio of up to 1.3, perfectly suited for high-power and bifacial solar modules.
Ultra-Fast 5ms UPS Switching: Automatically transitions from on-grid to off-grid mode within 5ms to keep sensitive electronics and essential loads running without interruption.
Rapid 120A Battery Management: Delivers up to 120A maximum charge and discharge current, compatible with both 48V Lithium-ion (with auto BMS adaptation) and Lead-Acid battery banks.
High System Efficiency: Achieves up to 97.6% maximum efficiency and 99.9% MPPT efficiency to minimize power loss and reduce electricity bills.
Smart Zero-Export & Generator Support: Features a rapid 200ms zero-export function and allows direct integration with diesel generators and wind turbines for 24/7 power security.
Scalable Parallel Architecture: Supports connecting up to 16 units in parallel to expand capacity for larger single-phase or three-phase systems.
Rugged IP65 Weatherproof Enclosure: Built for indoor or outdoor wall mounting with intelligent fan cooling operating quietly at under 30 dB.
Complete Monitoring Kit: Includes a dedicated Wi-Fi dongle, BMS communication cable, and a color LCD touchscreen for simple local and remote cloud monitoring.
Technical Specifications
PV String Input Data
Max. DC Input Power: 6500W
Rated PV Input Voltage: 370V (100V – 500V Range)
MPPT Operating Voltage Range: 125V – 425V
Start-Up Voltage: 150V
Max. PV Input Current: 11A + 11A
No. of MPPT Trackers / Strings per MPPT: 2 / (1 + 1)
MPPT Efficiency: 99.90%
Battery Input Data
Supported Battery Types: Lithium-ion / LiFePO4 / Lead-Acid
Battery Voltage Range: 40V – 60V (48V Nominal)
Max. Charge Current: 120A
Max. Discharge Current: 120A
Charging Strategy: 3 Stages / Equalization (Self-adaptation to BMS for Lithium)
BMS Communication: CAN / RS485 (BMS Cable Included)
AC Output Data (On-Grid / UPS Backup)
Rated AC Output / UPS Power: 5000W
Max. AC Output Power: 5500W
Peak Power (Off-Grid Surge): 2x Rated Power (10 Seconds)
Rated AC Current: 21.7A (Max. 25A)
Max. Continuous AC Passthrough: 35A
Nominal Output Voltage & Frequency: 240Vac Single-Phase | 50Hz
Transfer Time (Grid to UPS): 5ms
Total Harmonic Distortion (THD): <3% (Linear Load <1.5%)
General & Mechanical Data
Dimensions (W × H × D): 330 mm × 580 mm × 208 mm
Net Weight: 20.5 kg
Ingress Protection: IP65 (Indoor / Outdoor Wall-Mounted)
Cooling: Smart Fan Cooling (<30 dB Noise Level)
Operating Temperature: -25°C to +60°C (>45°C Derating)
Warranty: 5-Year Warranty
