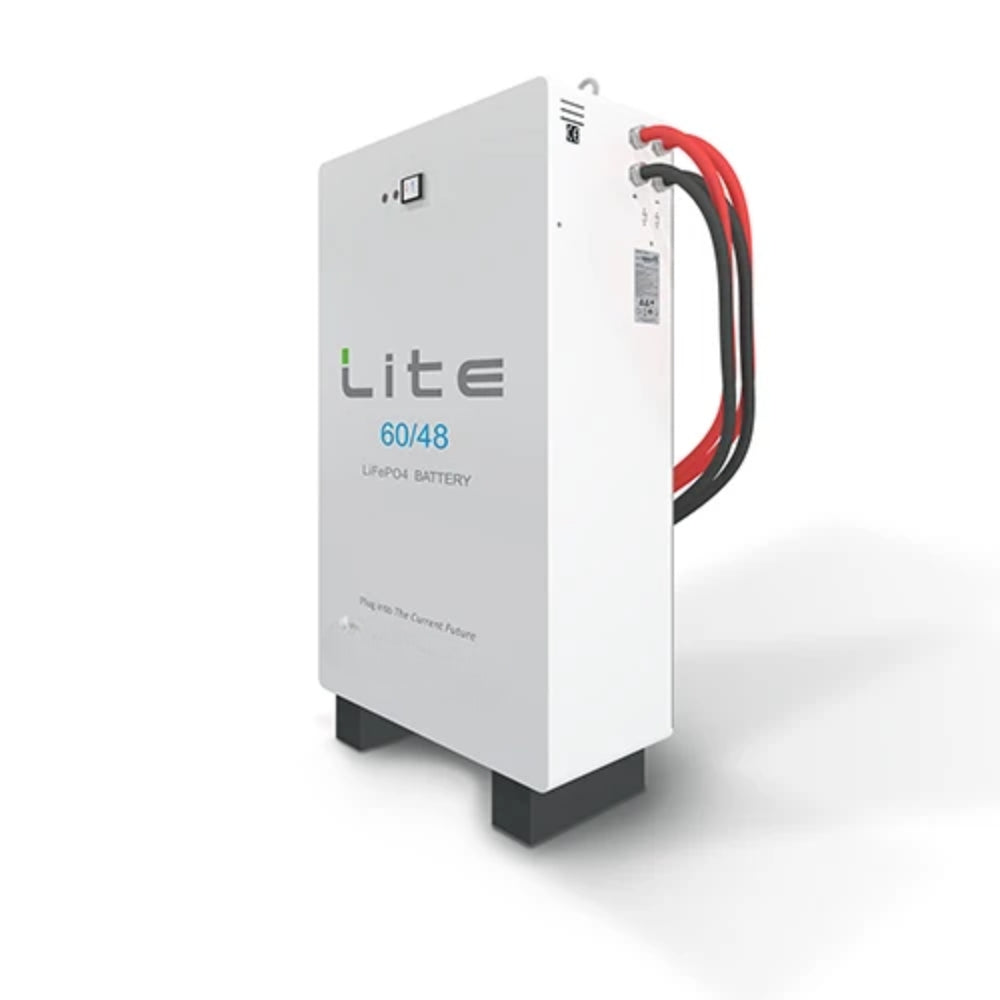

SMTE 60kWh High Voltage LiFePO4 Lithium Battery Set – Commercial Energy Storage (60/48 HV, Floor-Standing Tower)

Power large commercial facilities, agricultural estates, manufacturing operations, and high-demand three-phase hybrid installations with the 60kWh (60/48) High Voltage LiFePO4 Lithium Battery Set. Engineered as a high-capacity, high-voltage energy storage solution, this commercial unit delivers 48kWh of usable energy at 80% DoD and up to 54kWh at 90% DoD. Operating at high DC voltage to drastically minimize transmission current and thermal loss while boosting overall round-trip efficiency, it features heavy-duty pre-wired DC fly leads, an intelligent multi-layer BMS with Shunt Trip protection, and dual CAN Bus communication for seamless pairing with 3-phase high-voltage hybrid inverters.

Key Features & Benefits

• Massive 60kWh Commercial Capacity (48–54kWh Usable): Delivers 48kWh at 80% DoD and up to 54kWh at 90% DoD to reliably drive heavy inductive three-phase loads, machinery, and commercial backup circuits.

• High-Voltage Architecture: High-voltage DC system design drastically reduces current flow and heat dissipation compared to low-voltage systems, optimizing inverter round-trip conversion efficiency.

• Exceptional >16-Year Service Life: Premium LiFePO4 cell chemistry guarantees over 5,500 cycles at 80% DoD (>16 years expected life) and over 7,500 cycles at 50% DoD (>20 years expected life), backed by a 10-year warranty.

• BMS-Actuated Shunt Trip Safety Breaker: High-voltage safety circuit breaker automatically trips via BMS fault detection and features manual reset capability for maximum operational safety.

• Heavy-Duty Pre-Wired DC Fly Leads: Equipped with factory-fitted, low-resistance positive (red) and negative (black) heavy-gauge cables for secure high-voltage inverter connection.

• Smart CAN Bus & USB Diagnostics: Dual RJ45 CAN Bus communication ports enable seamless integration with leading high-voltage hybrid inverters, along with a dedicated USB serial port for PC monitoring and troubleshooting.

• Integrated Human Interface: Side-mounted State of Charge (SOC) meter (0–100%), error status indicator, and dedicated reset button provide instant system status updates.

• Rugged Floor-Standing Enclosure: Heavy-duty white painted aluminum chassis with elevated dark base support blocks, engineered for clean indoor floor placement.

Technical Specifications

Battery Performance & Capacity

• Model: LiTE Commercial / Industrial 60/48 HV

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

• Total Nominal Energy Capacity: 60 kWh

• Energy Capacity @ 80% DoD: 48 kWh

• Energy Capacity @ 90% DoD: 54 kWh

• System Type: High Voltage Energy Storage System (HV ESS)

• Cycle Life / Warranty: 10 Years or 4,000 Cycles (Average 80% DoD, Max 90% DoD)

• Expected Service Life: > 16 Years (> 5,500 Cycles @ 80% DoD) | > 20 Years (> 7,500 Cycles @ 50% DoD)

BMS, Protection & Communication

• Inverter Compatibility: 3-Phase High-Voltage Hybrid Inverters (Deye, Sunsynk, Solis, ATESS, etc.)

• BMS Protection: Shunt Trip Circuit Breaker, Overcurrent, Cell Under/Over Voltage, Temperature Detection, Weak Cell Detection, Min SOC Control

• Control Interfaces: Dual RJ45 Sockets (CAN Bus Inverter Link & Paralleling), USB Serial Port

• Display Interface: 0–100% SOC Display, Error Indicator Light, Reset Push-Button

Physical & Mechanical Data

• Form Factor: Floor-Standing High-Voltage Tower with Dual Base Mounting Blocks

• Enclosure: Heavy-Duty White Painted Aluminum (IP20 Rated)

• DC Connections: Heavy-Duty Insulated DC Fly Leads (Positive & Negative)

• Installation Environment: Indoor Floor Placement
