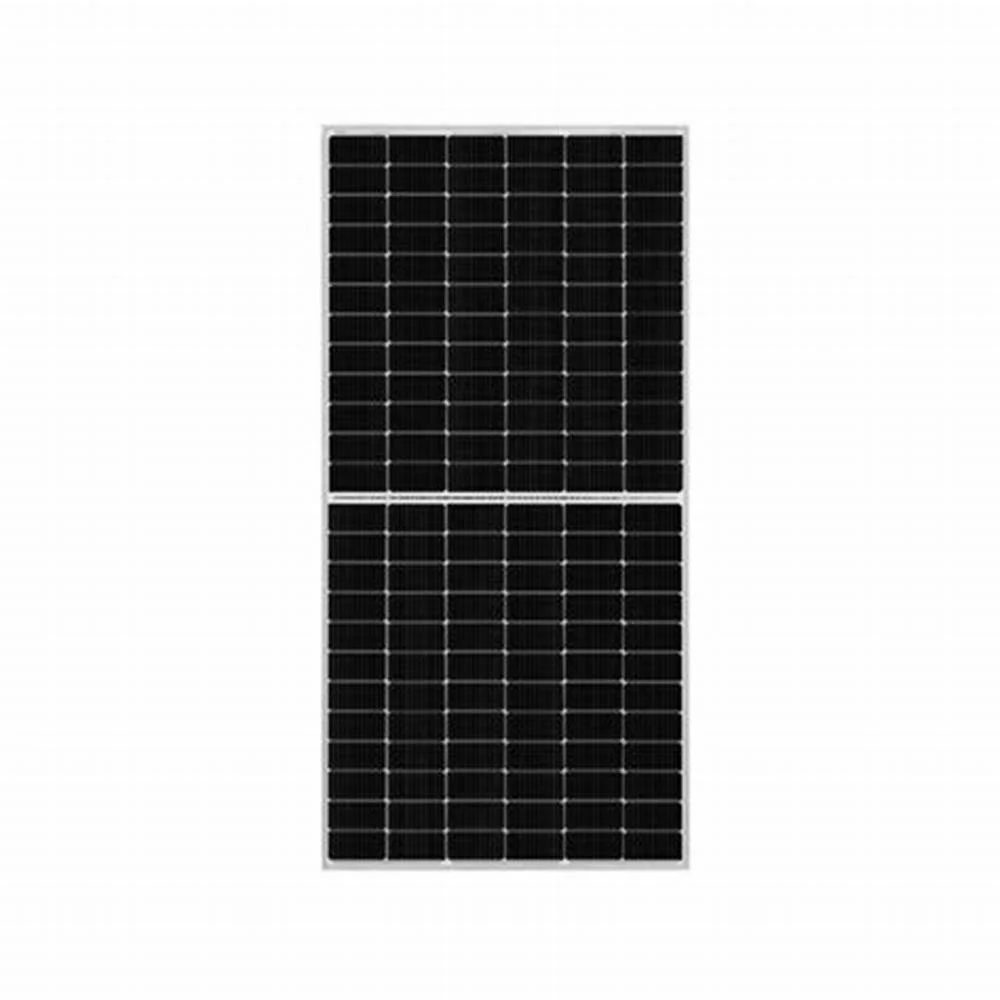

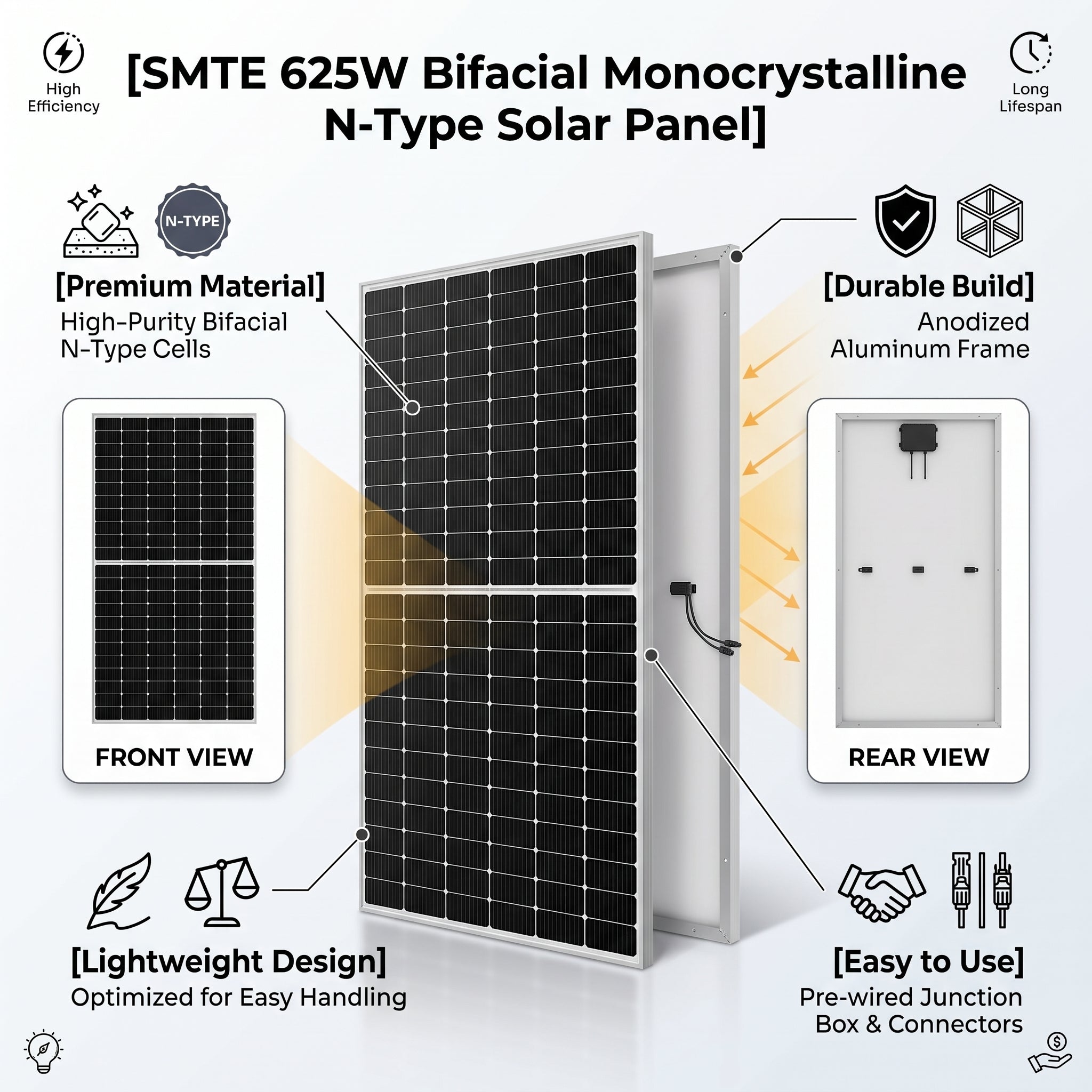

SMTE 625W Bifacial Monocrystalline N-Type Solar Panel
SMTE 625W Bifacial Monocrystalline N-Type Solar Panel
Scale your residential, commercial, or utility-scale energy projects with the 625W Bifacial Monocrystalline N-Type Half-Cell Solar Panel. Engineered with dual-glass bifacial technology and high-efficiency N-Type half-cut cells, this module captures sunlight from both sides to deliver maximum total power generation, enhanced shading tolerance, and outstanding long-term durability.
Key Features & Benefits
Dual-Glass Bifacial Generation: Generates energy from both front and rear sides, providing up to 25% additional power yield from ground reflection (albedo).
N-Type Cell Technology: Delivers high module conversion efficiency, superior low-light generation, and zero Light-Induced Degradation (LID).
144 Half-Cut Cell Architecture: Reduces internal electrical resistance, lowers operating temperatures, and minimizes hotspot risk.
Superior Temperature Coefficient: Maintains stable, high power output even in extreme ambient heat and harsh climates.
Heavy-Duty Dual-Glass Durability: Built with 2.0 mm / 2.0 mm semi-tempered glass and a 30 mm anodized aluminum alloy frame to resist PID, salt mist, ammonia, and mechanical loads up to 5400 Pa front / 2400 Pa rear.
Extended Service Life: Engineered for lower annual degradation rates, backed by a 30-year linear performance design.
Technical Specifications
Electrical Characteristics (STC: 1000W/m², AM1.5, 25°C)
Maximum Power (Pmax): 625W
Maximum Power Voltage (Vmp): 45.45V
Maximum Power Current (Imp): 13.76A
Open Circuit Voltage (Voc): 54.30V
Short Circuit Current (Isc): 14.55A
Bifaciality Factor: 80% (±5%)
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 30A
Operating Temperature: -40°C to +85°C
Application Class: Class A
Mechanical Specifications
Cell Type: N-Type Monocrystalline (144 Half-Cells)
Dimensions: 2382 mm × 1134 mm × 30 mm
Weight: ~33.5 kg
Glass: 2.0 mm / 2.0 mm Dual Tempered Glass (Anti-Reflective)
Frame: 30 mm Anodized Aluminum Alloy
Junction Box: IP68 Weatherproof with 3 Bypass Diodes
Connector Type: MC4 / MC4 Compatible
