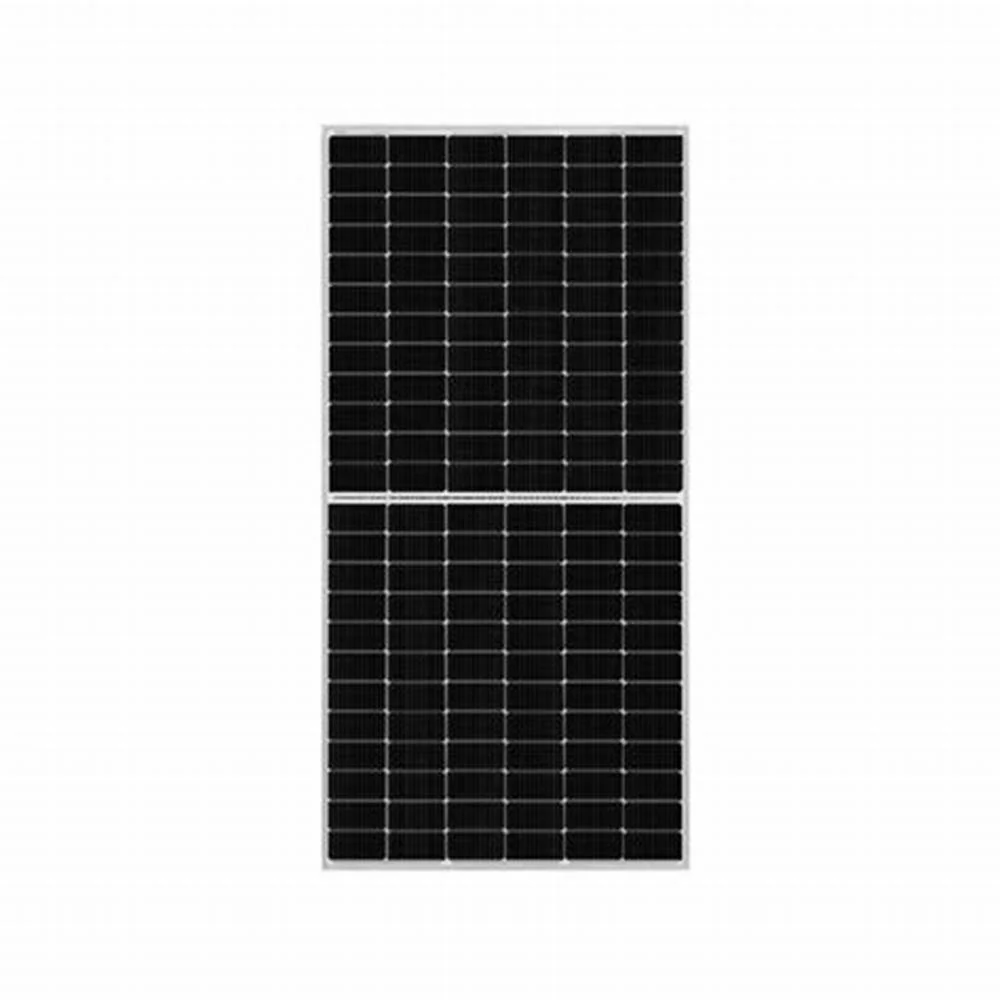

SMTE 630W Bifacial Monocrystalline N-Type Solar Panel
SMTE 630W Bifacial Monocrystalline N-Type Solar Panel
Achieve peak power production for residential, commercial, and utility-scale energy projects with the 630W Bifacial Monocrystalline N-Type Half-Cell Solar Panel. Utilizing high-efficiency N-Type cell technology and a heavy-duty dual-glass architecture, this panel generates energy from both sides, capturing ground-reflected light to deliver maximum total energy yield, exceptional shading resistance, and long-term durability.

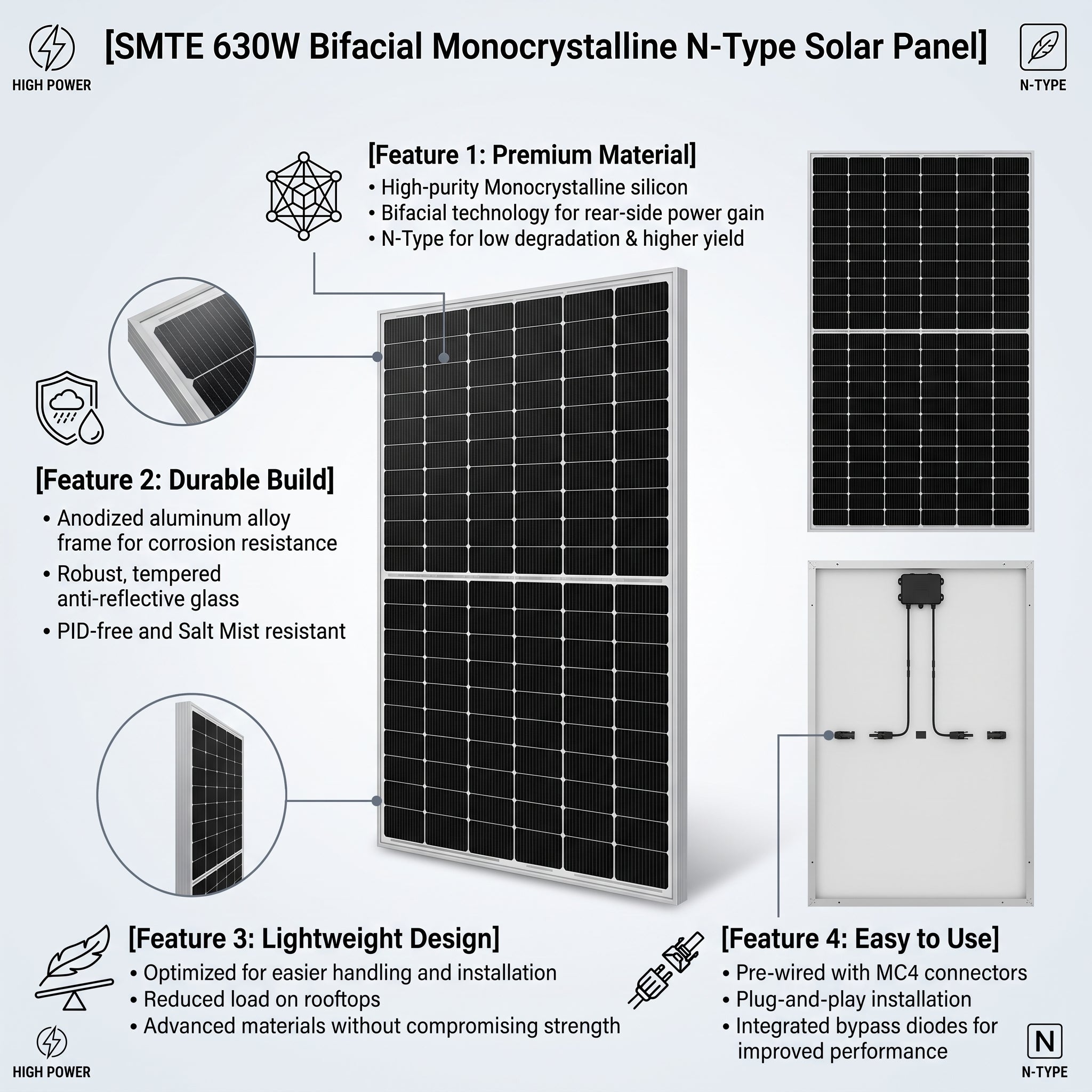

Key Features & Benefits
Dual-Glass Bifacial Generation: Converts sunlight from both the front and rear faces, yielding up to 25% additional power output depending on albedo and installation surface.
Cutting-Edge N-Type Cells: Provides ultra-high conversion efficiency, superior performance under low-light conditions, and zero Light-Induced Degradation (LID).
144 Half-Cut Cell Design: Lowers internal resistive losses and hotspot risks, maintaining steady performance during partial shading.
Outstanding Temperature Stability: Minimizes power drop in hot ambient conditions thanks to an optimized low-temperature coefficient.
Heavy-Duty Weather & Load Resistance: Constructed with dual 2.0 mm semi-tempered glass and a 30 mm anodized aluminum frame to withstand severe weather, PID, salt mist, and ammonia.
Long-Term Performance Retention: Engineered for low annual degradation, supported by a 30-year linear performance design.
Technical Specifications
Electrical Characteristics (STC: 1000W/m², AM1.5, 25°C)
Maximum Power (Pmax): 630W
Maximum Power Voltage (Vmp): 45.68V
Maximum Power Current (Imp): 13.79A
Open Circuit Voltage (Voc): 54.50V
Short Circuit Current (Isc): 14.60A
Module Efficiency: Up to 23.3%
Bifaciality Factor: 80% (±5%)
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 30A
Operating Temperature: -40°C to +85°C
Application Class: Class A
Mechanical Specifications
Cell Type: N-Type Monocrystalline (144 Half-Cells)
Dimensions: 2382 mm × 1134 mm × 30 mm
Weight: 33.5 kg
Glass: 2.0 mm / 2.0 mm Dual Semi-Tempered Glass
Frame: 30 mm Anodized Aluminum Alloy
Junction Box: IP68 Weatherproof with 3 Bypass Diodes
Connector Type: MC4 / MC4 Compatible
