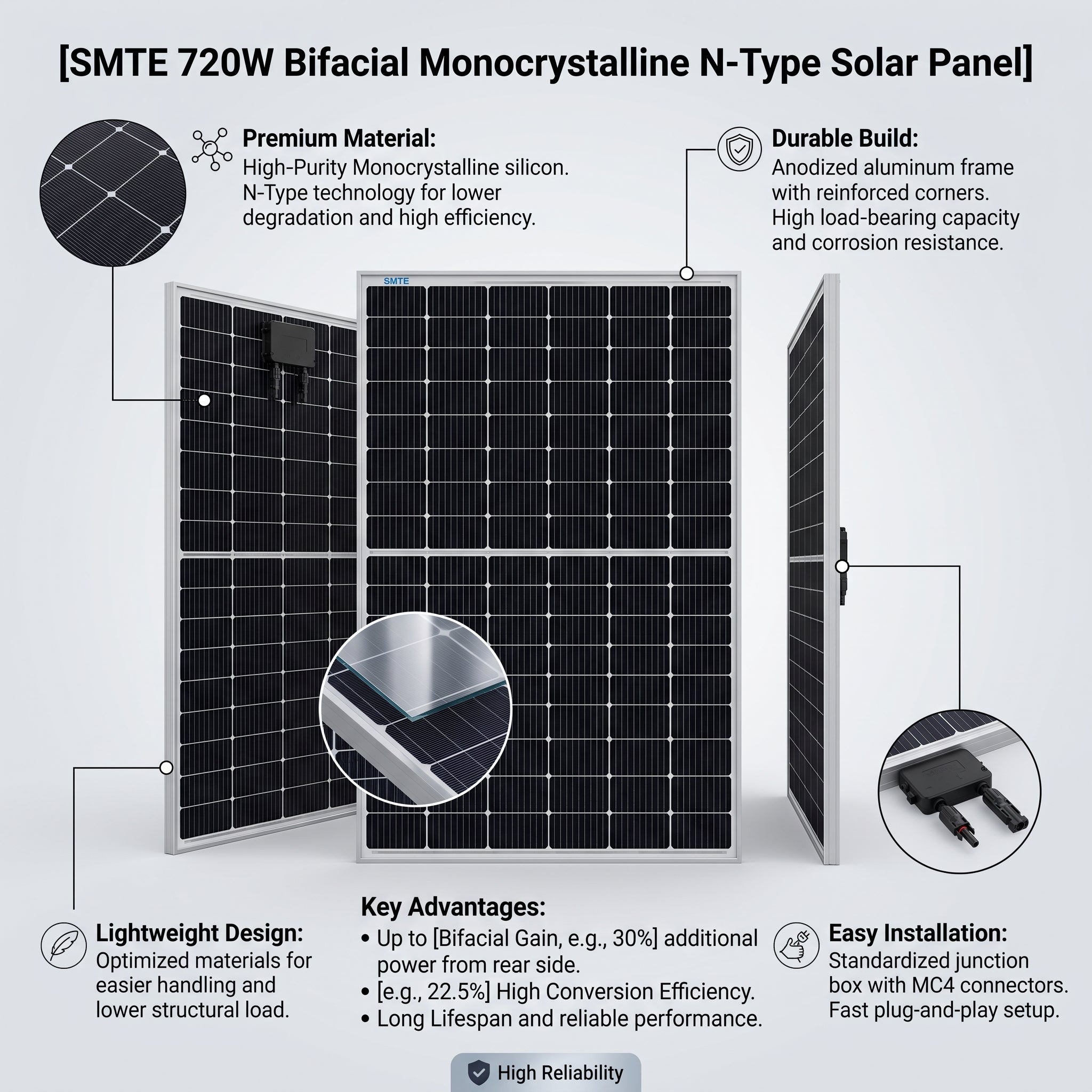

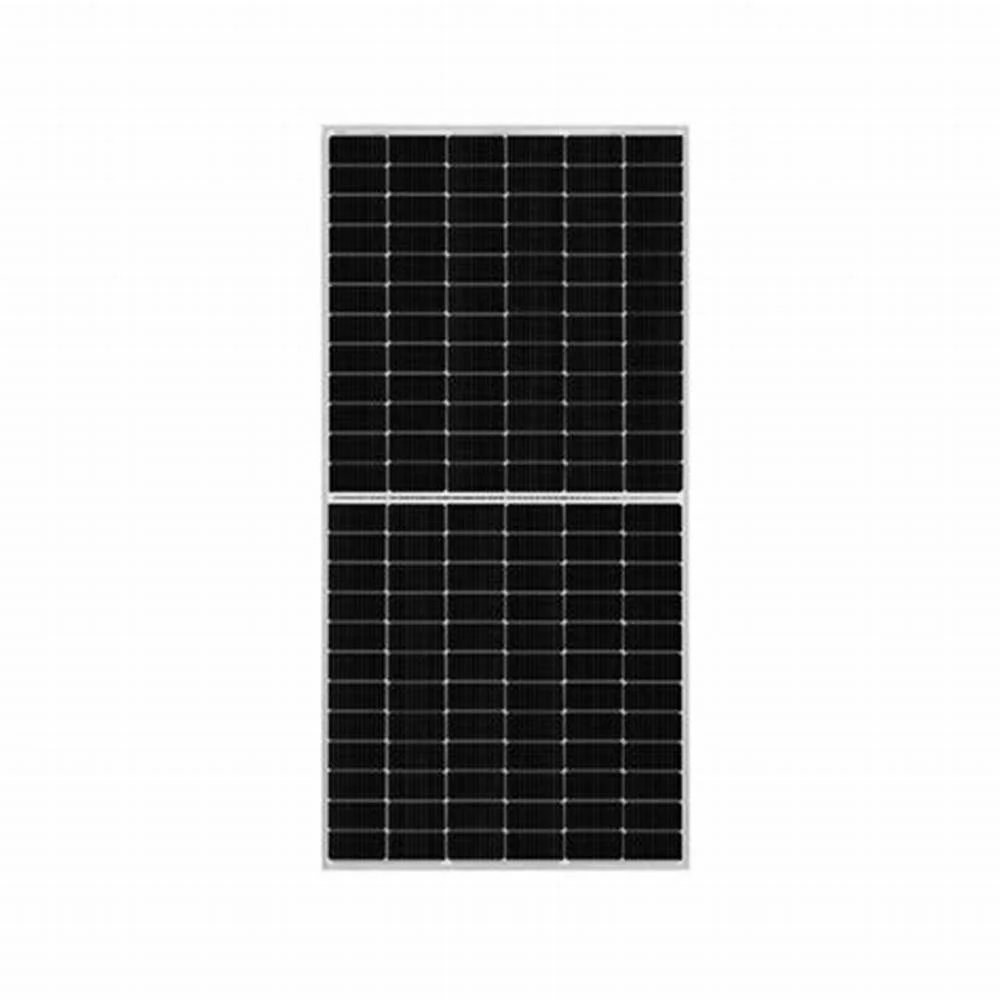

SMTE 720W Bifacial Monocrystalline N-Type Solar Panel
SMTE 720W Bifacial Monocrystalline N-Type Solar Panel
Engineered for ultra-high-yield commercial, agricultural, and utility-scale solar installations, the 720W Bifacial Monocrystalline N-Type Half-Cell Solar Panel delivers massive power density and high-efficiency performance. Built with advanced dual-glass bifacial architecture and large-format N-Type half-cut cells, this module harnesses direct sunlight on the front while capturing ground-reflected light on the back to maximize total kilowatt-hour production.
Key Features & Benefits
Ultra-High 720W Power Rating: Maximum energy generation per panel reduces required racking, wiring, and overall Balance of System (BOS) costs.
Dual-Glass Bifacial Technology: Front and rear energy absorption yields up to 25% additional power from ground albedo reflection.
Advanced N-Type Half-Cut Cells: Delivers high module conversion efficiency, superior performance in low-light and overcast conditions, and eliminates Light-Induced Degradation (LID).
Optimized Low-Temperature Coefficient: Maintains stable, high power output even in hot environments and extreme desert temperatures.
Heavy-Duty Weather & Mechanical Protection: 2.0 mm / 2.0 mm semi-tempered dual glass with a 35 mm anodized aluminum alloy frame ensures resistance against PID, salt mist, sand, ammonia, and high snow/wind loads.
Extended Service Life: Engineered for minimal annual power loss, supported by a 30-year linear performance design.
Technical Specifications
Electrical Characteristics (STC: 1000W/m², AM1.5, 25°C)
Maximum Power (Pmax): 720W
Maximum Power Voltage (Vmp): 39.20V
Maximum Power Current (Imp): 18.37A
Open Circuit Voltage (Voc): 47.10V
Short Circuit Current (Isc): 19.38A
Module Efficiency: Up to 23.2%
Bifaciality Factor: 80% (±5%)
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 35A
Operating Temperature: -40°C to +85°C
Application Class: Class A
Mechanical Specifications
Cell Type: N-Type Monocrystalline (132 / 66-format Large Half-Cells)
Dimensions: 2384 mm × 1303 mm × 35 mm
Weight: ~38.5 kg
Glass: 2.0 mm / 2.0 mm Dual Semi-Tempered Glass
Frame: 35 mm Silver Anodized Aluminum Alloy
Junction Box: IP68 Weatherproof with Bypass Diodes
Connector Type: MC4 / MC4-EVO2 Compatible
