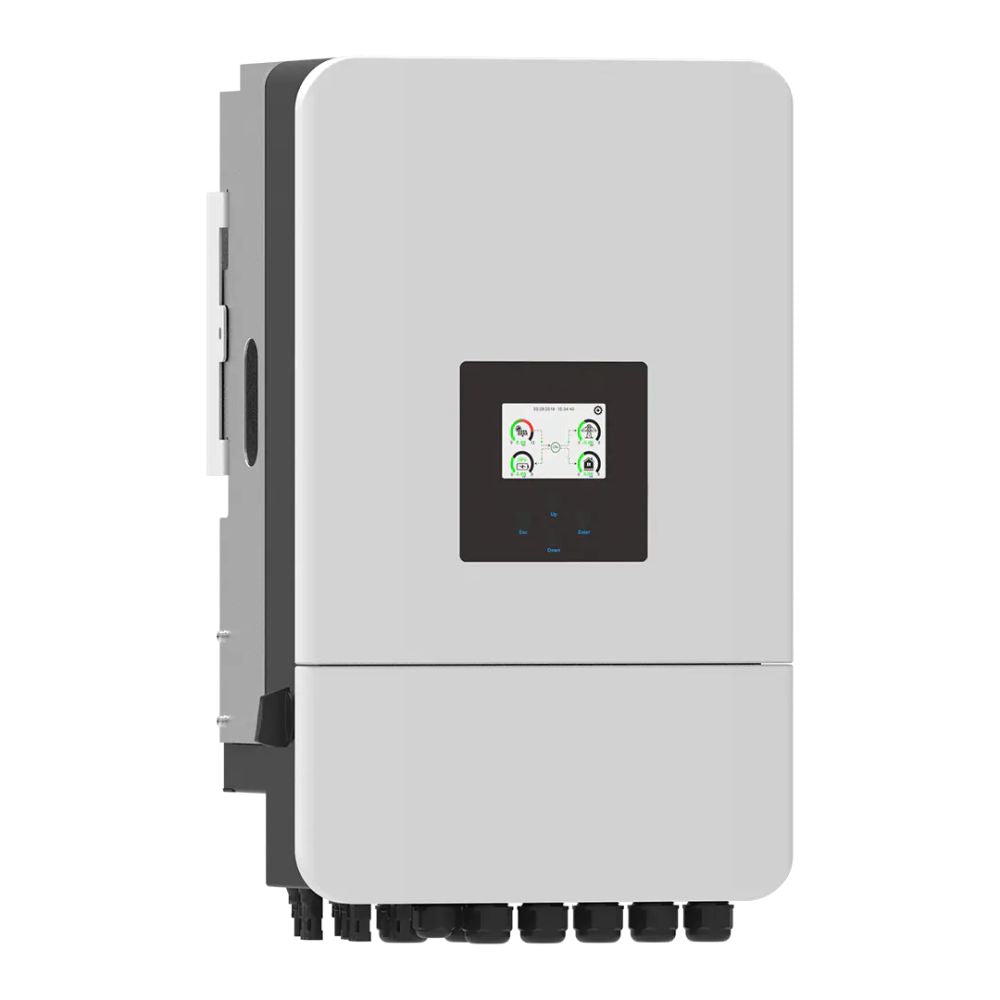

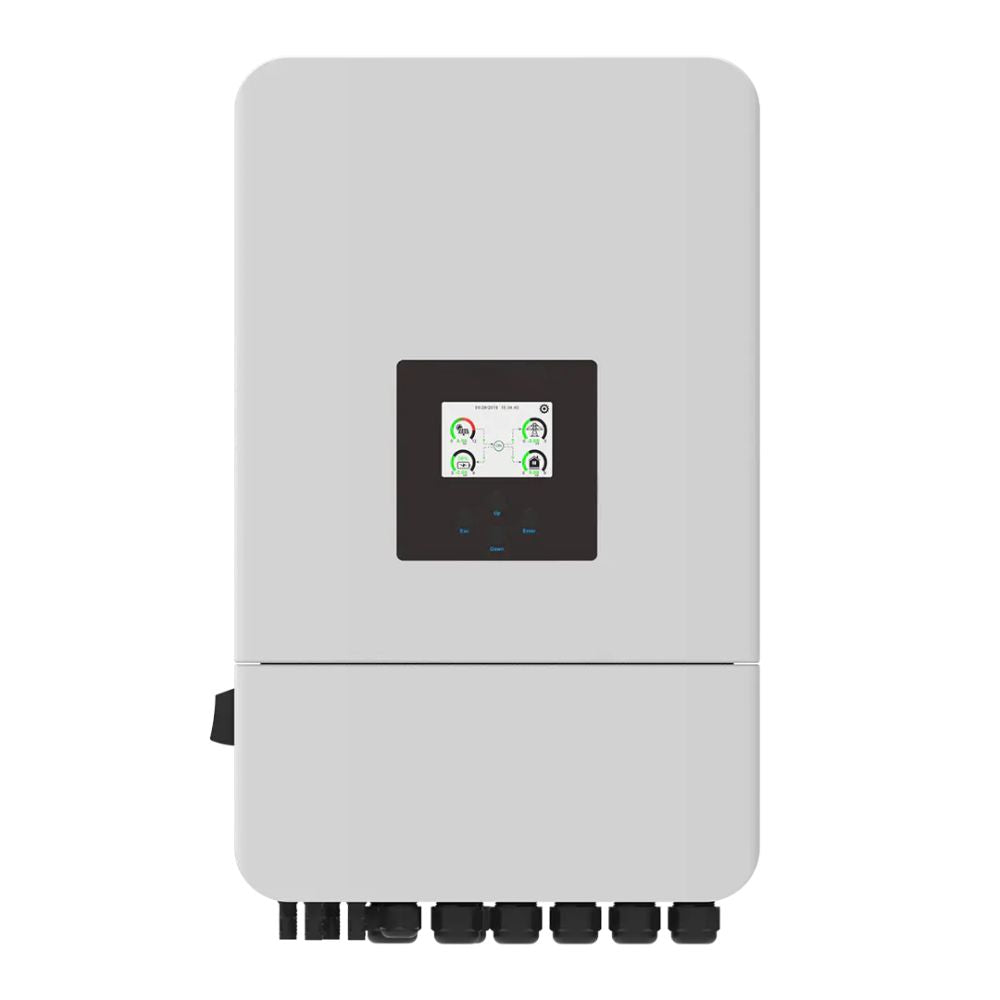

SMTE 8KW Hybrid Solar Inverter – 48V Dual MPPT IP65
SMTE 8KW Hybrid Solar Inverter – 48V Dual MPPT IP65
Gain reliable power independence and protect against outages with the 8KW Hybrid Solar Inverter. Engineered for high-efficiency solar conversion and intelligent energy storage management, this inverter supports up to 16,000W PV input across dual MPPT trackers, rapid 190A battery charging/discharging, and seamless automatic switching for continuous home and business power.
Key Features & Benefits
High PV Input Capacity: Supports up to 16,000W of total solar input with dual MPPT trackers (2+2 strings) to maximize daily solar energy production.
Flexible Battery Compatibility: Fully compatible with both 48V Lithium-ion and Lead-acid battery banks with self-adaptive BMS communication.
Rapid Charge & Discharge: Delivers up to 190A maximum charging and discharging current for rapid battery replenishment and heavy load handling.
Seamless Backup Transition: Provides reliable, uninterrupted power during load-shedding and sudden grid failures to keep critical circuits active.
Weatherproof & Quiet Operation: IP65-rated enclosure with intelligent air cooling ensures robust protection against dust and moisture while maintaining quiet operation under 30 dB.
Smart System Control: Integrated multi-parameter color LCD interface for easy operation, status tracking, and performance optimization.
Technical Specifications
PV String Input Data
Max. PV Input Power: 16,000W
Max. PV Input Voltage: 500V
Start-Up Voltage: 125V
MPPT Voltage Range: 150V – 425V
Rated PV Input Voltage: 370V
Max. Operating PV Input Current: 26A + 26A
Max. Input Short-Circuit Current: 34A + 34A
No. of MPPT Trackers / Strings per Tracker: 2 / (2 + 2)
Battery Input Data
Supported Battery Types: Lithium-ion / Lead-Acid
Battery Voltage Range: 40V – 60V (48V Nominal)
Max. Charging Current: 190A
Max. Discharging Current: 190A
Charging Strategy: Self-adaptation to BMS
Number of Battery Inputs: 1
General & Mechanical Data
Dimensions (W × H × D): 366 mm × 589.5 mm × 237 mm
Net Weight: 26.8 kg
Ingress Protection Rating: IP65
Cooling Method: Intelligent Air Cooling
Noise Level: < 30 dB
