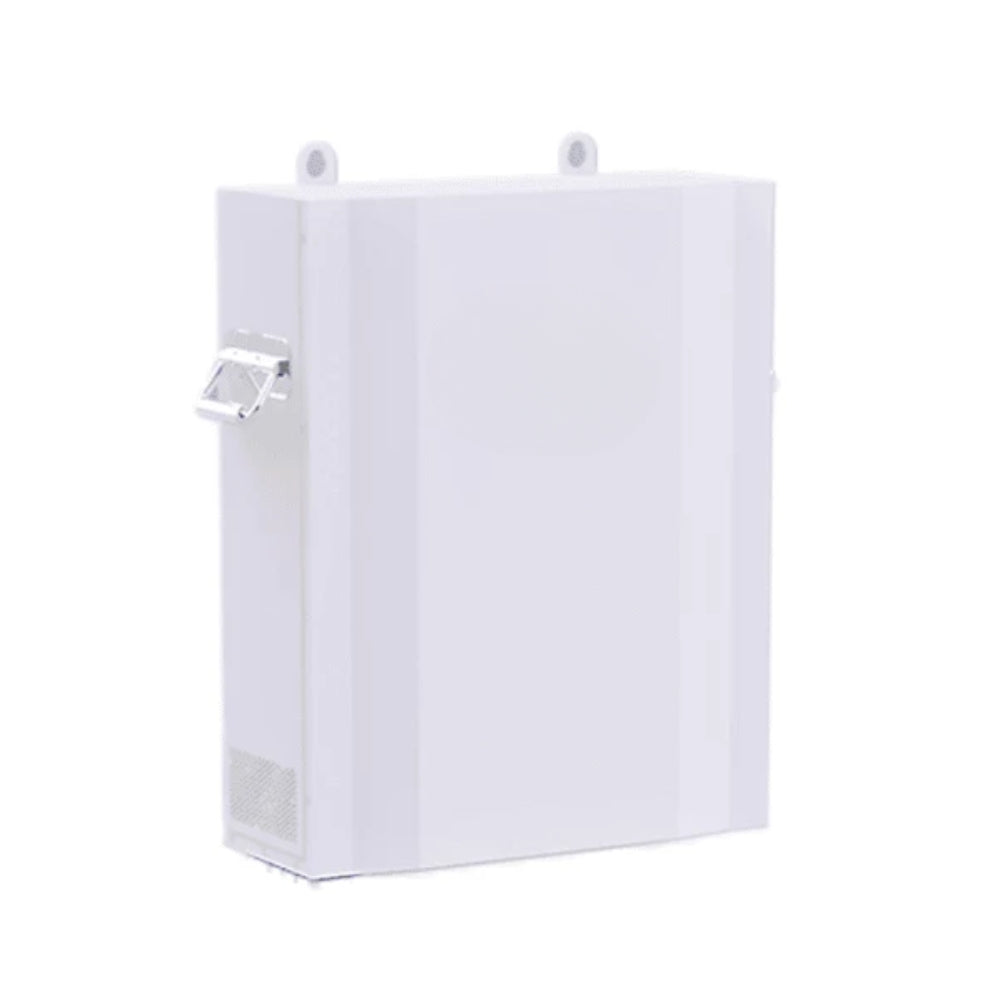

SMTE AM-2 5.5kWh 51V 110Ah LiFePO4 Lithium Battery – Wall-Mount Solar Energy Storage (100A Continuous Discharge)

Power your residential property, home office, or light commercial setup with the AM-2 5.5kWh 51V 110Ah LiFePO4 Lithium Battery. Engineered with high-density lithium cell technology and an intelligent Battery Management System (BMS), this low-voltage unit delivers 5.5kWh of dependable energy storage to protect against outages and maximize solar self-consumption. Featuring a high continuous charge and discharge rating of 100A, heavy-duty side lifting handles, top mounting eyelets, and broad low-voltage hybrid inverter compatibility, it provides long-lasting power independence against load shedding.

Key Features & Benefits

• High-Density 5.5kWh / 110Ah Capacity: Delivers 51V nominal voltage to reliably run household appliances, lighting circuits, entertainment systems, and critical backup power.

• 100A Continuous Charge & Discharge: Handles sustained 100A continuous current to power heavy loads and ensure fast replenishment during solar charging windows.

• Intelligent Multi-Layer BMS: Integrated battery management system actively guards against over-voltage, under-voltage, overcurrent, and thermal risks.

• Precise Voltage Parameters: Configured with an equalized charge voltage of 53.6V and a discharge cut-off voltage of 42.0V to ensure optimal cell balance and longevity.

• Space-Saving Wall-Mount Profile: Compact vertical cabinet equipped with top mounting eyelets and robust side-folding metal handles for easy lifting, alignment, and installation.

• Broad Hybrid Inverter Compatibility: Engineered for seamless integration with leading 48V/51V hybrid and off-grid inverter brands (including Sunsynk, Deye, Victron, and Growatt).

Technical Specifications

Battery Performance & Capacity

• Model: AM-2

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4 / Lithium-Ion)

• Nominal Energy: 5.5 kWh (5500 Wh)

• Rated Capacity (5HR): 110 Ah

• Nominal Voltage: 51.0 V

• System Operating Voltage: Low Voltage (48V / 51V System)

Charging & Discharging Parameters

• Equalized Charge Voltage: 53.6 V

• Discharge Cut-Off Voltage: 42.0 V

• Max. Continuous Charging Current: 100 A

• Max. Continuous Discharging Current: 100 A

Physical & Mechanical Data

• Form Factor: Vertical Wall-Mounted Enclosure

• Net Weight: Approx. 42 kg

• Handling: Heavy-Duty Fold-Down Side Metal Grips

• Mounting: Dual Top Wall-Mounting Bracket Loops

• Color / Finish: Pure White Powder-Coated Steel
