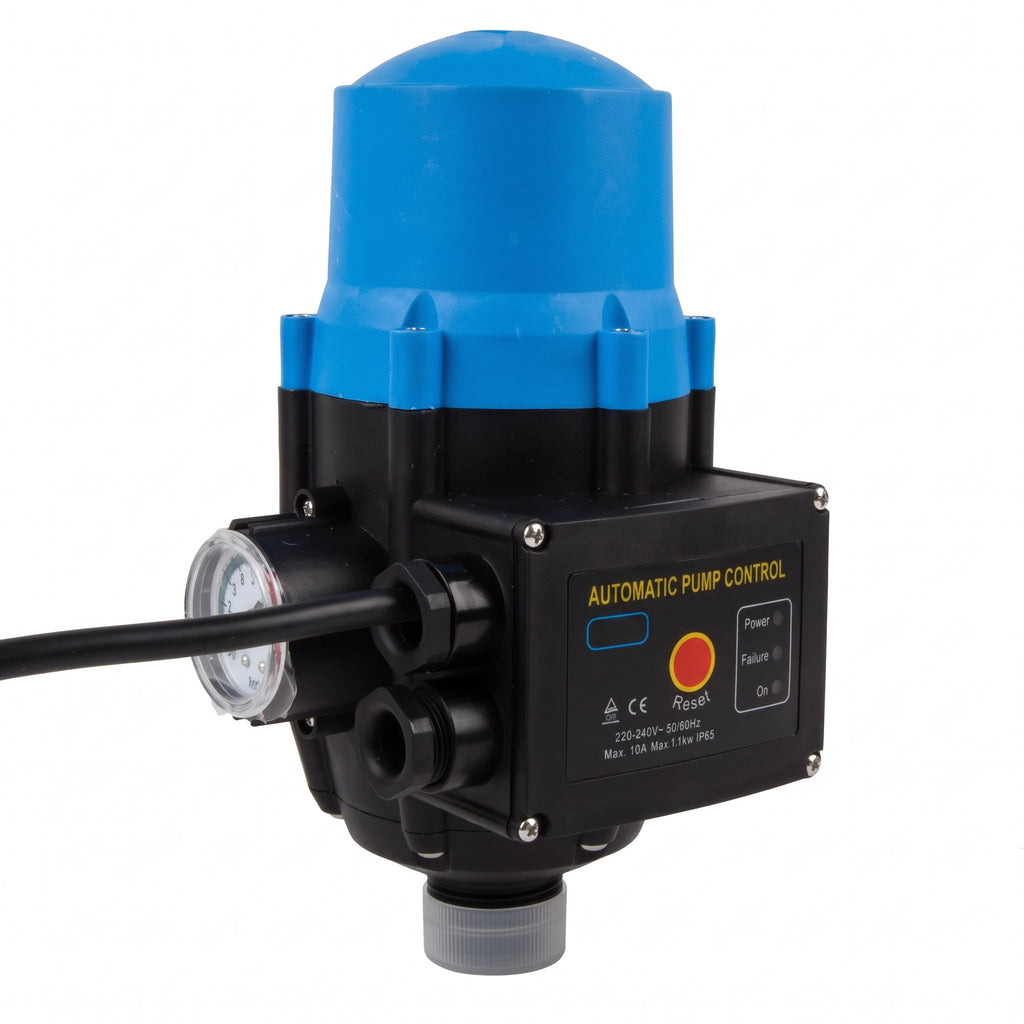

Smte Automatic Water Pump Pressure Controller Unit (230V, 1.1KW, 10Bar, IP65)
Smte Automatic Water Pump Pressure Controller Unit (230V, 1.1KW, 10Bar, IP65)
Upgrade your water delivery system with the Smte Automatic Pump Pressure Control Unit. Engineered to replace traditional pressure switch and expansion tank setups, this electronic controller automates pump operations based on system demand. When a tap, faucet, or irrigation line is turned on, the controller immediately activates the pump; once turned off, it shuts the pump down with zero manual intervention.
Engineered with comprehensive system safety in mind, it features automatic dry-run protection that senses water shortages and stops the motor instantly to prevent overheating. With standard 25mm (1″) BSP male threaded connections, an analog pressure gauge, and an IP65 ingress rating, it offers plug-and-play reliability for surface booster pumps, transfer pumps, and garden pressure systems.
Key Features
Smart Auto Start & Stop: Senses demand when taps open or close, eliminating the need for bulky manual switches or tanks.
Built-in Dry Run Safety: Protects your pump motor by shutting off automatically when the water source is exhausted.
Wide Pump Compatibility: Suitable for single-phase pumps up to 1.1 kW (1.5 HP) running on 230V / 50Hz power supplies.
Heavy-Duty Pressure Rating: Handles working pressures up to 10 Bar (1 MPa) and water temperatures up to 60°C.
Standard 25mm (1″) Fittings: Universal 25mm BSP male threaded inlet and outlet ports for straightforward pipe installation.
Clear Diagnostic Panel: Includes LED indicator lights (Power, Failure, On), a manual reset button, and an integrated dial pressure gauge.
Specifications
Brand: Smte
Product Type: Automatic Pump Pressure Controller
Input Voltage: 220V–240V AC (50/60 Hz)
Maximum Motor Power: 1.1 kW (1.5 HP)
Maximum Current: 10 A
Maximum Operating Pressure: 10 Bar
Inlet / Outlet Thread Size: 25 mm (1 Inch) BSP Male
Ingress Protection Rating: IP65
Maximum Liquid Temperature: 60°C
Functions: Auto Start/Stop, Dry-Run Cut-Off, Manual Reset
What’s Included
1 × Smte Automatic Water Pump Controller Unit (25mm)
1 × Instruction & Installation Manual
