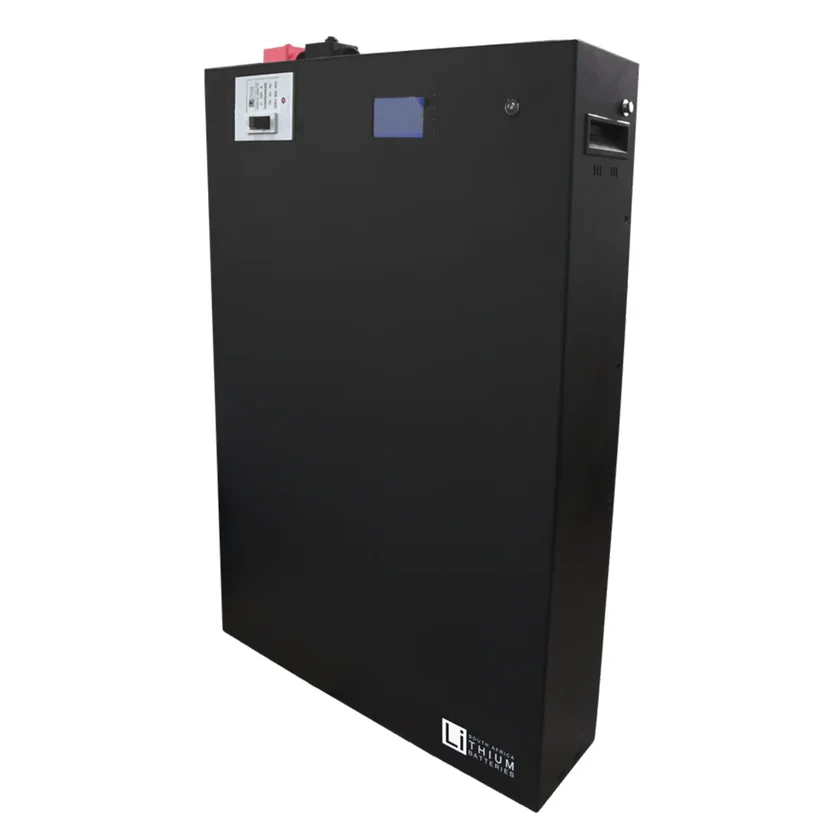

SMTE LBSA 10kWh (10.6kWh) 51.2V 200Ah LiFePO4 Lithium Battery – Wall-Mounted Solar Energy Storage (Black Finish, Built-in DC Breaker & Smart LCD)

Power your home, apartment, or commercial facility with the LBSA 10kWh 51.2V 200Ah LiFePO4 Lithium Battery. Engineered with premium Lithium Iron Phosphate ($\text{LiFePO}_4$) chemistry and an intelligent Battery Management System (BMS), this low-voltage DC energy storage pack operates at 51.2V nominal to deliver dependable backup power in conjunction with leading low-voltage hybrid inverters. Featuring an integrated front-access DC circuit breaker, smart digital LCD status display, high continuous discharge capability, and a heavy-duty wall-mounting design in a matte black finish, it provides reliable energy independence against load shedding.

Key Features & Benefits

• High-Density 10kWh Energy Storage: Supplies 51.2V low-voltage DC power to reliably run heavy household appliances, entertainment circuits, office electronics, and backup loads.

• Premium LiFePO4 Cell Chemistry: High-grade Lithium Iron Phosphate cells deliver exceptional thermal stability, safety, and an extended operational lifespan.

• Integrated Front DC Circuit Breaker: Features a built-in safety circuit breaker on the top-left panel for quick overload protection and easy manual disconnection.

• Interactive Digital LCD Interface: High-contrast backlit display with status LEDs and push-button controls provides instant real-time data on voltage, capacity, and system health.

• Multi-Brand Low-Voltage Inverter Compatibility: Engineered to communicate seamlessly with 48V/51.2V hybrid and off-grid inverters (Deye, Sunsynk, Growatt, Victron, etc.).

• Space-Saving Wall-Mounted Form Factor: Slim vertical profile equipped with recessed side grab handles and top-mounted quick-connect DC terminals for clean, low-profile wall installation.

• Intelligent BMS Safety Protections: Actively monitors and protects against overvoltage, undervoltage, overcurrent, short circuits, and extreme temperature conditions.

Technical Specifications

Battery Performance & Capacity

• Model: LBSA 51.2V 10kWh Series

• Battery Chemistry: Lithium Iron Phosphate ($\text{LiFePO}_4$)

• Nominal Energy Capacity: 10 kWh (10.6 kWh max nominal capacity)

• Nominal Voltage: 51.2 V (48V Low-Voltage System)

• Rated Capacity: 200 Ah (~208 Ah)

• System Type: Low-Voltage DC Energy Storage System

BMS, Safety & Display

• Safety Breaker: Integrated Front-Panel DC Circuit Breaker

• Display Interface: Blue Backlit Digital LCD Screen + Indicator LEDs + Power/Control Button

• Protection Safeguards: Overcharge, Over-Discharge, Over-Current, Short Circuit, and Thermal Protection

• Inverter Compatibility: Compatible with all standard 48V / 51.2V Hybrid & Off-Grid Inverters

Physical & Mechanical Data

• Form Factor: Vertical Wall-Mounted Slim Cabinet

• Color / Finish: Matte Black Powder-Coated Steel Chassis

• Handling: Built-in Recessed Side Lifting Grips

• DC Terminals: Top-Mounted Positive (Red) & Negative (Black) Heavy-Duty Connectors

• Application: Household Solar Energy Storage, UPS Backup, Off-Grid & Hybrid Setups
