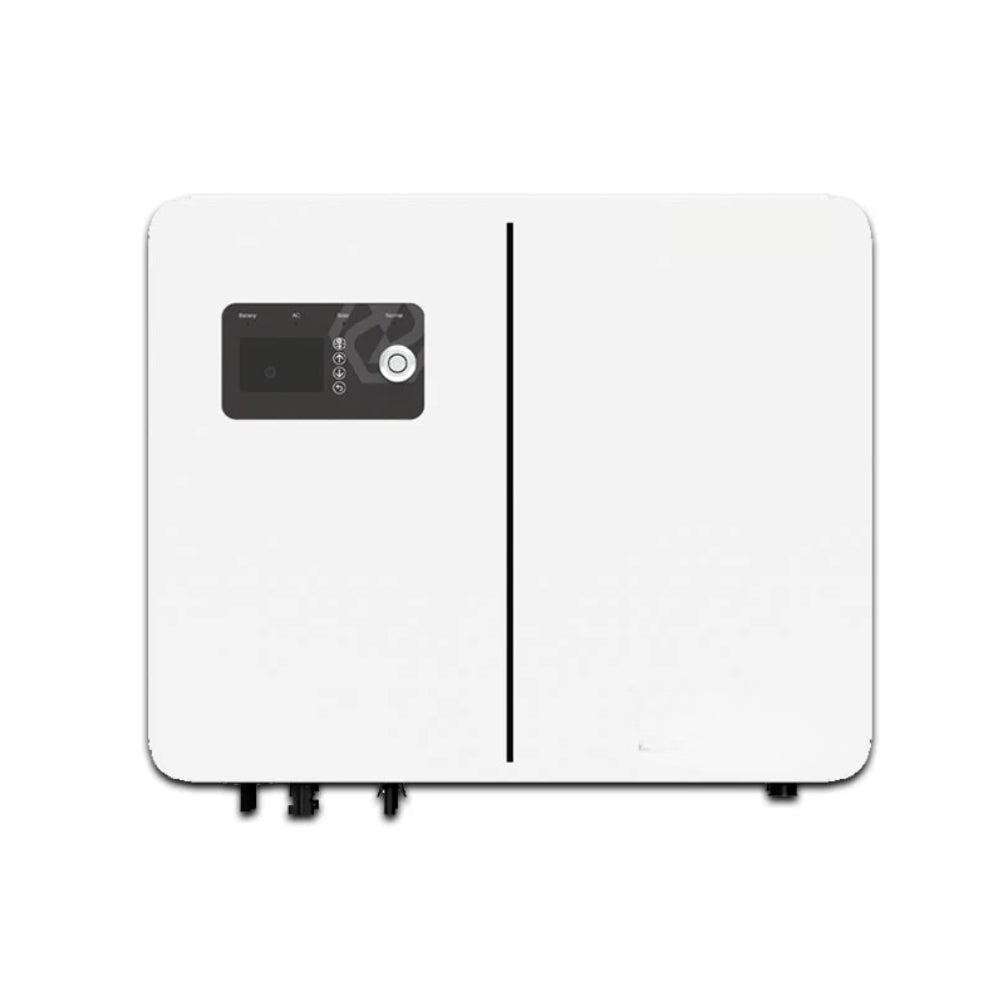

SMTE Lynks 6kW 48V Single Phase Hybrid Inverter – 8kWp Dual MPPT

SMTE Lynks 6kW 48V Single Phase Hybrid Inverter – Pure Sine Wave Solar Inverter (8kWp PV Input, Dual MPPT)

Power your home, small business, or off-grid installation with the Lynks 6kW 48V Single Phase Hybrid Inverter. Built with a modern, compact horizontal form factor, this high-efficiency pure sine wave inverter adapts seamlessly to solar PV arrays, wind turbines, and micro-inverter setups. Featuring up to 8kWp DC input across dual MPPT trackers, compatibility with 48V lithium-ion and lead-acid battery banks, and an included CT clamp for precise consumption tracking and grid-tie control, it provides reliable backup power and optimizes self-consumption.

Key Features & Benefits

• High 8kWp PV Array Input: Supports up to 8000Wp DC solar capacity with dual MPPT controllers (15A per tracker) for efficient power harvesting across multiple panel orientations.

• Continuous 6000W AC Output: Delivers a stable 6000W pure sine wave single-phase output ($230\text{V} \pm 5\%$) to keep critical appliances and equipment running during outages.

• Flexible 48V Battery Compatibility: Works smoothly with 48V Lithium-ion and Lead-Acid battery banks with a wide 40V–60V DC operating range.

• Included CT Clamp & Zero-Export Control: Comes with an external CT clamp for real-time household consumption monitoring, self-consumption optimization, and precise grid-export management.

• Multi-Source Hybrid Adaptability: Compatible with solar PV panels, wind turbine DC inputs, and micro-inverters for grid-tied, hybrid, or off-grid configurations.

• Integrated Wi-Fi Monitoring: Included plug-and-play Wi-Fi dongle allows remote system diagnostics and live performance tracking via mobile app and web platforms.

• Smart Fan-Cooled Indoor Design: Compact wall-mounted chassis with IP41 ingress protection and intelligent fan cooling for quiet, reliable indoor operation.

Technical Specifications

PV String Input Data

• Inverter Topology: Single-Phase Hybrid Pure Sine Wave

• Max. DC Input Power: 8000Wp (8kWp)

• Number of MPPT Trackers: 2 MPPTs

• Max. Input Current per MPPT: 15A

• MPPT Tracking Efficiency: > 99%

Battery & Charging Parameters

• Nominal Battery Voltage: 48VDC

• Battery Voltage Range: 40V – 60V DC

• Supported Battery Types: Lithium-ion / LiFePO4 / Lead-Acid

• Communication Interface: RS485 / CAN / Wi-Fi

AC Output & Performance

• Rated AC Output Power: 6000W (6kW) Single-Phase

• AC Output Voltage Range: $230\text{V} \pm 5\%$

• Overall Efficiency: > 97%

• Application Types: Off-Grid, Grid-Tied, Hybrid Energy Storage

General & Mechanical Data

• Ingress Protection Rating: IP41 (Indoor Wall-Mounted)

• Cooling Method: Smart Fan Cooling

• Included Accessories: Integrated Wi-Fi Dongle, CT Clamp, Mounting Hardware

• Warranty: 5-Year Warranty
