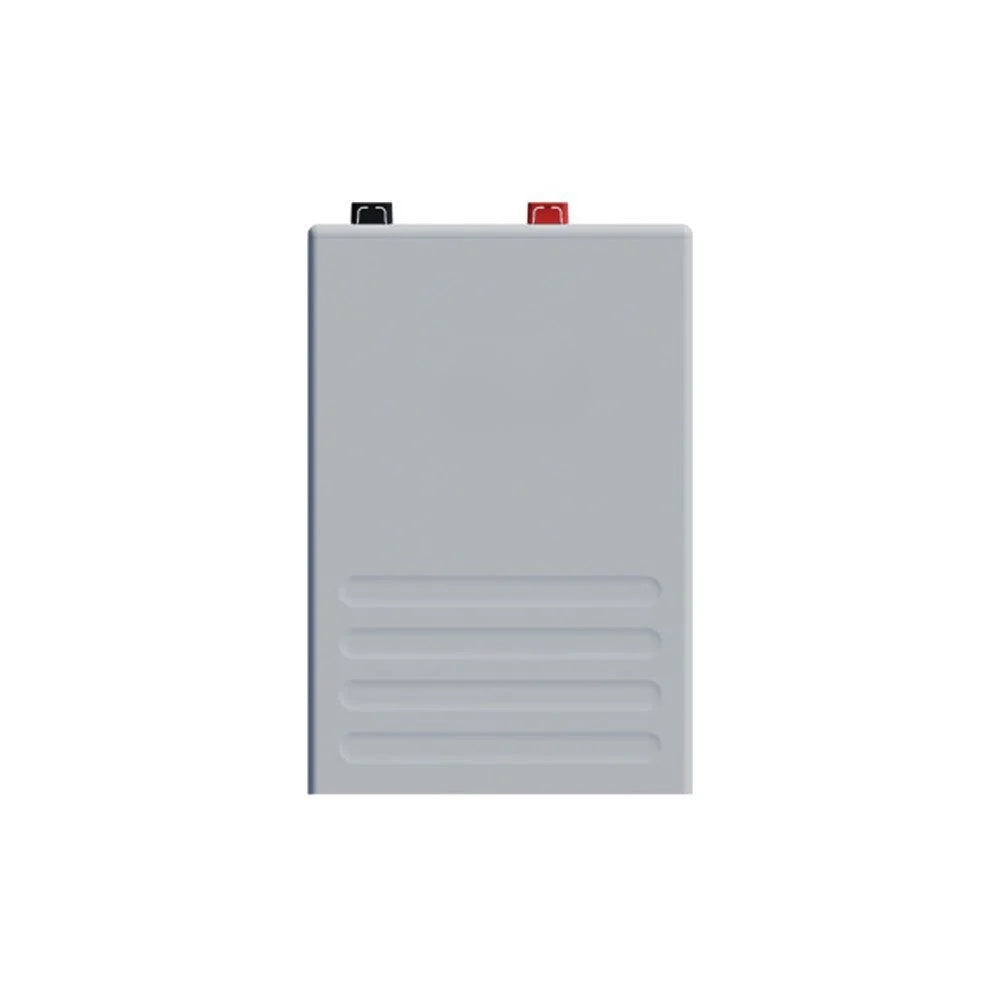

SMTE SE-F5 5.12kWh 51.2V LiFePO4 Lithium Battery – Wall Mount

Protect your home or business against load shedding with the SE-F5 5.12kWh 51.2V
LiFePO4 Lithium Battery.
Engineered with high-efficiency Lithium Iron Phosphate chemistry, GaN MOSFET technology, and an advanced Battery Management System (BMS) with active fuse protection, this 51.2V energy storage unit delivers dependable backup power with minimal energy loss. Featuring 1C charge and 1.2C discharge rates, smart Bluetooth app integration, massive parallel scalability up to 32 units, and a versatile 3-in-1 wall, floor, or stack mounting design, it integrates seamlessly with leading hybrid inverters.

Key Features & Benefits

• High-Density 5.12kWh Storage: Delivers 51.2V 100Ah nominal energy to reliably power essential household circuits, office equipment, and backup systems.

• Advanced GaN MOSFET Technology: Features Gallium Nitride (GaN) switching to cut internal energy loss by 50% and enhance high-temperature performance.

• High-Rate 1C Charge & 1.2C Discharge: Delivers fast replenishment and robust burst power capability for handling heavy load demands.

• Massive Parallel Scalability: Supports daisy-chaining and parallel connection of up to 32 units in parallel, allowing capacity expansion up to 163.84kWh for commercial setups.

• Comprehensive BMS with Active Fuse: Integrated intelligent BMS with active hardware fuse safeguards against overcharge, overdischarge, overcurrent, and thermal extremes.

• Smart Bluetooth & App Monitoring: Built-in Bluetooth allows effortless local status tracking, parameter configuration, and remote ESS cloud diagnostics.

• Optimized PACK Design: Internal layout minimizes line resistance and maximizes energy output density with quiet, maintenance-free natural cooling.

• Versatile 3-in-1 Mounting: Flexible installation options allow wall-mounted, floor-mounted, or stack-mounted configurations, complete with top quick-connect DC terminals.

Technical Specifications

Battery Performance & Capacity

• Model: SE-F5

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

• Nominal Energy: 5.12 kWh

• Nominal Voltage: 51.2 V

• Nominal Capacity: 100 Ah

• Charge / Discharge Capability: Supports up to 1C Charge / 1.2C Discharge

• Scalability: Max. 32 Units in Parallel

Safety & System Features

• BMS Protection: Intelligent BMS with Integrated Active Fuse Protection

• Cooling: Natural Convection Cooling (Zero Noise)

• Operating Temperature Range: -20°C to +55°C

• Monitoring & Communication: Bluetooth + Mobile App Integration, CAN / RS485 Supported

Mechanical & Installation Data

• Mounting Options: Wall-Mounted, Floor-Mounted, or Stack-Mounted

• DC Terminals: Top-Mounted High-Current Quick-Connect Positive (+) & Negative (-) Terminals

• Chassis Design: Compact White Vertical Enclosure with Base Rib Reinforcement
