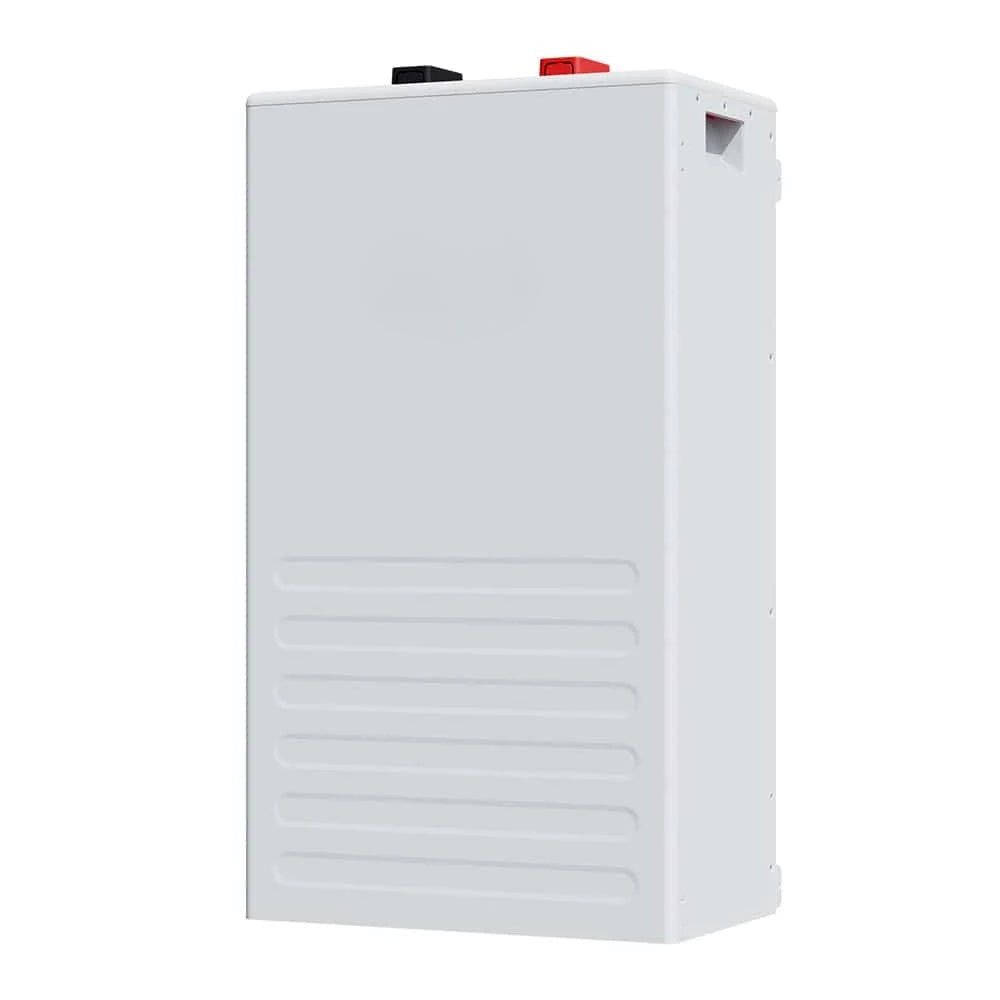

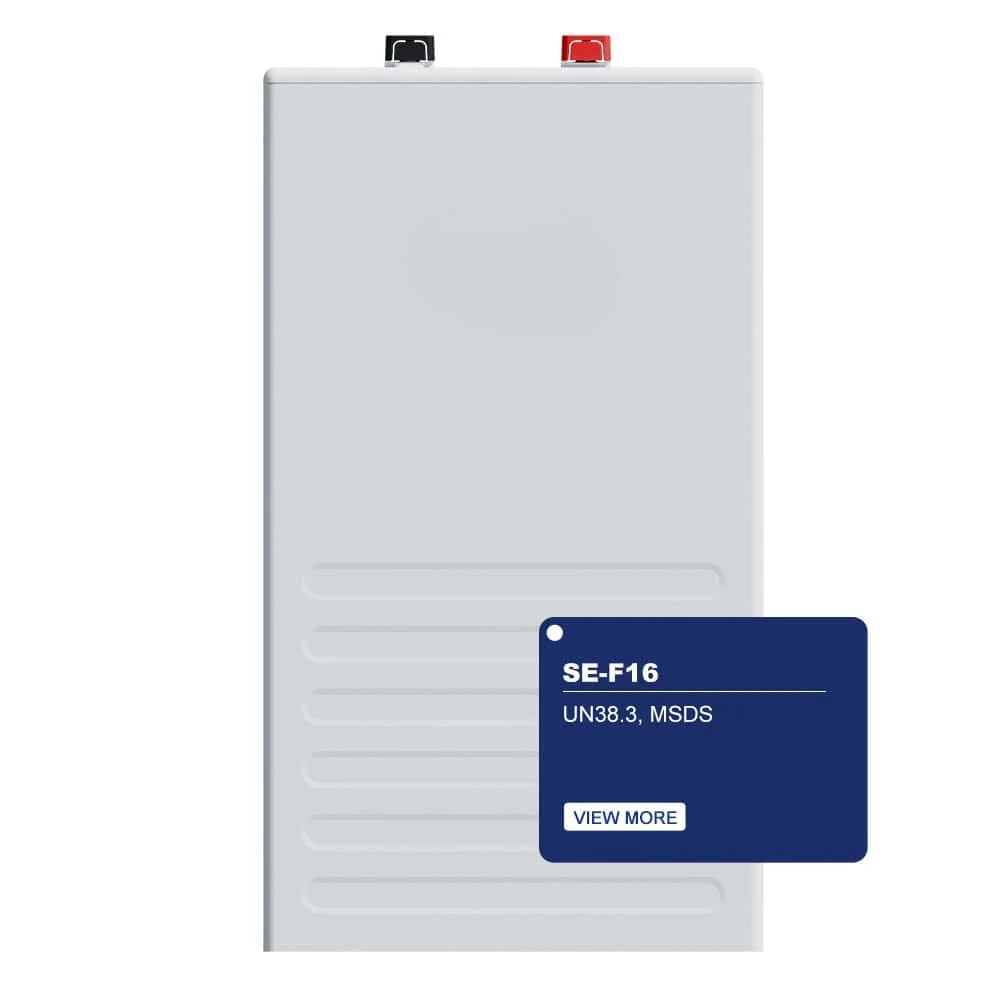

SMTE 16kWh 51.2V 314Ah LiFePO4 Lithium Battery – SE-F16 Storage

SMTE 16kWh 51.2V 314Ah LiFePO4 Lithium Battery – High-Capacity Solar Energy Storage (SE-F16, Max 32 Parallel)

Power large residential estates, multi-appliance properties, or commercial facilities with the 16kWh 51.2V 314Ah LiFePO4 Lithium Battery (SE-F16). Engineered with high-density Lithium Iron Phosphate chemistry, GaN MOSFET technology, and an integrated smart BMS with an active fuse, this powerhouse battery delivers 16kWh of reliable, long-lasting energy storage. Featuring a durable cycle life of over 6,000 cycles, massive parallel scalability up to 32 units, high-current discharge capabilities up to 230A (280A peak), and versatile wall, floor, or stack mounting options, it guarantees continuous power security against load shedding.

Key Features & Benefits

• Massive 16kWh / 314Ah Storage: High-density capacity designed to support heavy household appliances, commercial loads, and long-duration backup systems.

• Superior Durability & >6000 Cycles: Premium LiFePO4 chemistry with 90% recommended Depth of Discharge (DoD) delivers over 6,000 cycles for a decade of dependable service.

• High-Current 230A Discharge & 280A Peak: Delivers up to 230A continuous discharge and 280A peak surge (10s) to comfortably run heavy inductive loads and motor-driven appliances.

• Advanced GaN MOSFET Technology: Advanced Gallium Nitride switches reduce internal energy loss by 50% and enhance high-temperature resilience for optimal efficiency.

• Massive Parallel Scalability: Supports daisy-chaining and parallel connection of up to 32 units in parallel to expand storage capacity into multi-hundred-kilowatt-hour commercial arrays.

• Multi-Protocol & Wireless Monitoring: Features CAN 2.0, RS485, and built-in Bluetooth with mobile App tracking for local and remote ESS system diagnostics.

• Comprehensive BMS with Active Fuse: Integrated intelligent BMS with active hardware fuse safeguards against overcharging, deep discharging, short circuits, and thermal extremes.

• Versatile 3-in-1 Mounting: Adaptable chassis supports wall-mounted, floor-standing, or stack-mounted configurations, complete with top quick-connect terminal blocks and recessed lifting handles.

Technical Specifications

Battery Performance & Capacity

• Model: SE-F16

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4)

• Nominal Energy: 16 kWh

• Nominal Capacity: 314 Ah

• Nominal Voltage: 51.2 V

• Operating Voltage Range: 44.8 V – 57.6 V

• Recommended Depth of Discharge (DoD): 90%

• Cycle Life: > 6000 Cycles (25°C ± 2°C, 70% EOL)

• Scalability: Max. 32 Units in Parallel

Current & Charging Parameters

• Max. Continuous Charge Current: 160 A (Up to 1C Support)

• Max. Continuous Discharge Current: 230 A (Up to 1.2C Support)

• Peak Discharge Current: 280 A (10 Seconds)

• Cooling: Natural Convection Cooling

Communication & Installation Data

• Communication Interface: CAN 2.0, RS485, Bluetooth + Mobile App

• Operating Temperature: Charge: 0°C to +55°C | Discharge: -20°C to +55°C

• Dimensions (W × H × D): 400 mm × 708 mm × 233 mm (Without hanging board)

• Net Weight: ~109 kg

• Ingress Protection Rating: IP21

• Installation Style: Wall-Mounted, Floor-Mounted, or Stack-Mounted

• Certifications: UN38.3, MSDS

• Warranty: 5 Years / 10 Years Extended
