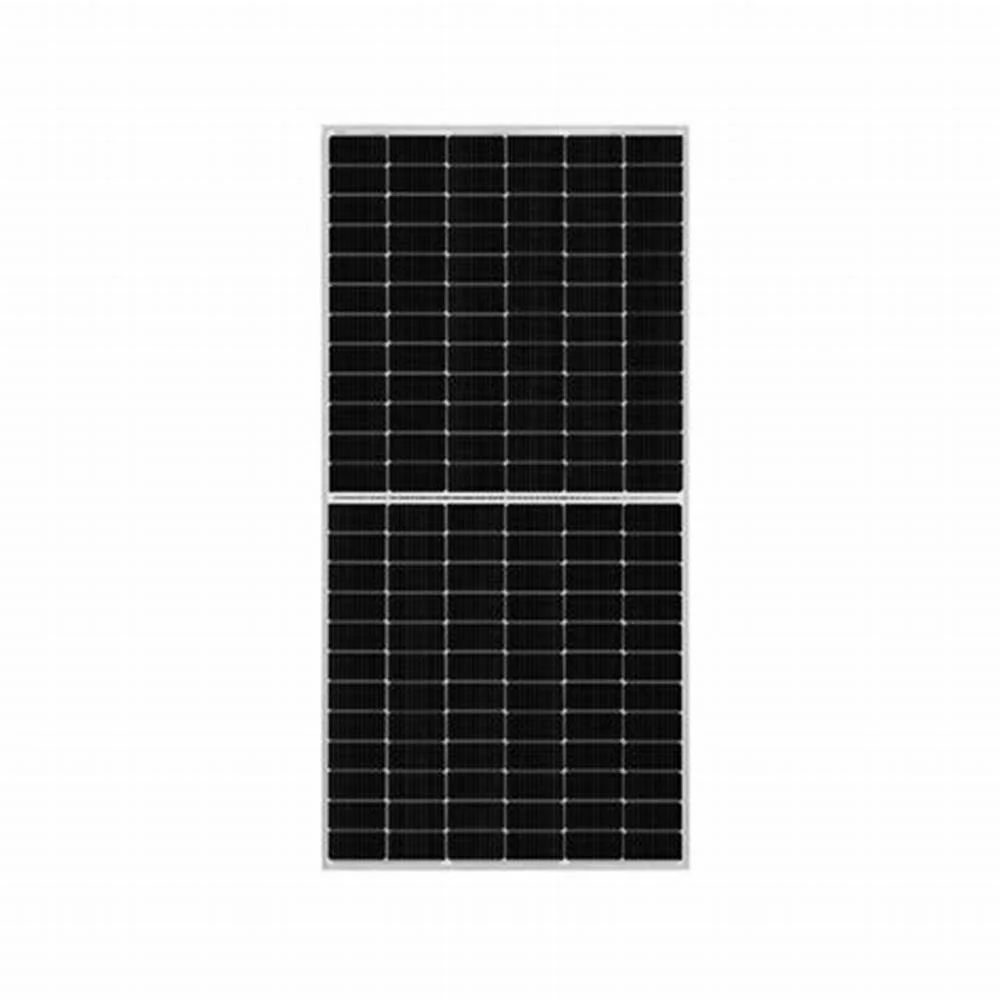

SMTE 460W Monocrystalline N-Type Half-Cell Solar Panel
SMTE 460W Monocrystalline N-Type Half-Cell Solar Panel
Maximize your energy generation for residential, commercial, or industrial applications with our 460W Monocrystalline N-Type Half-Cell Solar Panel. Engineered with advanced N-Type cell technology and a durable 144 half-cell layout, this module delivers higher energy conversion efficiency, superior low-light performance, and long-term durability in challenging environments.

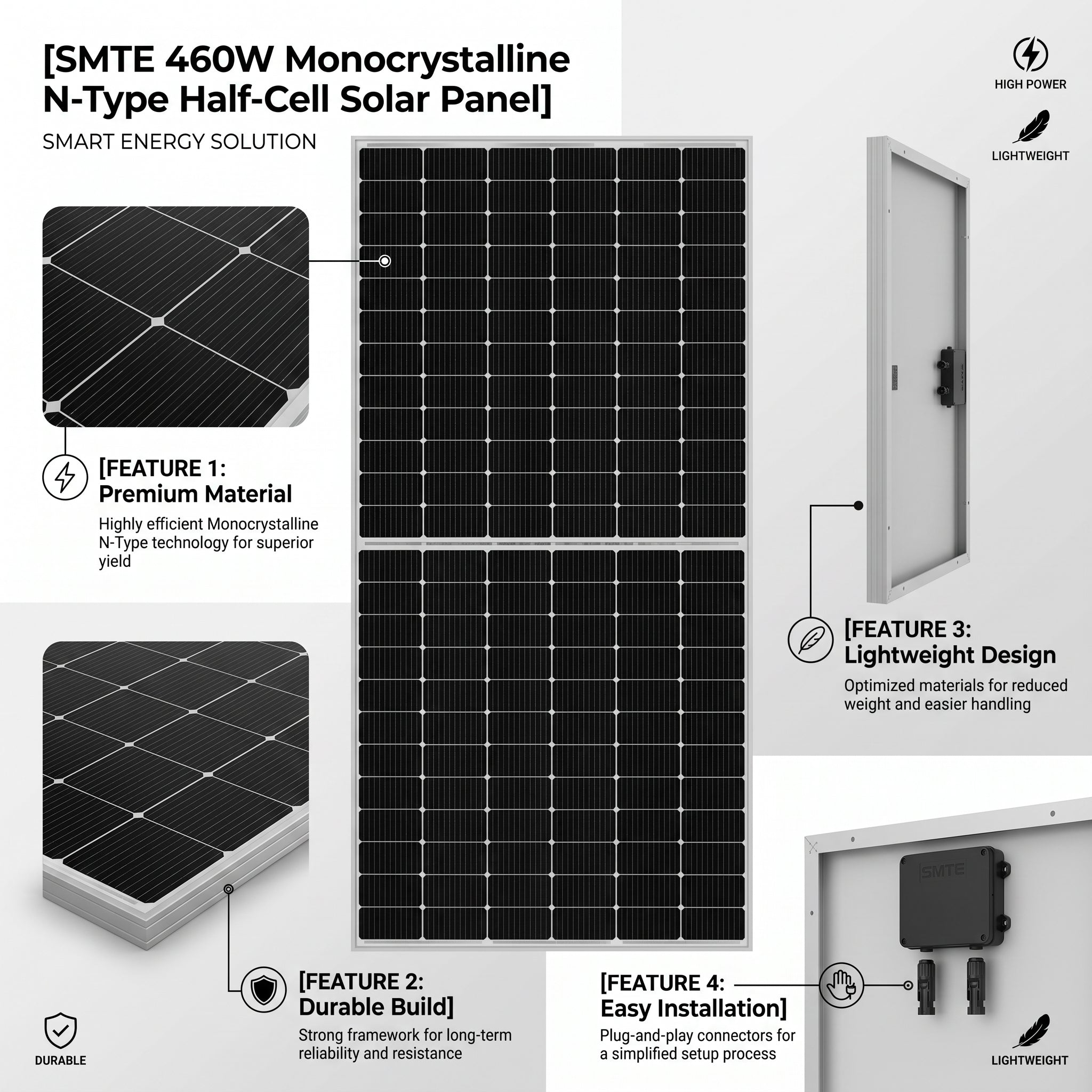

Key Features & Benefits
Next-Generation N-Type Technology: Offers superior conversion efficiency for more power output per panel.
Optimized Low-Light Output: Delivers reliable power generation during early mornings, late afternoons, and overcast days.
144 Half-Cell Design: Minimizes internal resistive losses and mitigates power drops caused by partial shading or dirt.
Extended Service Life & Low Degradation: Designed for reliable, long-term power retention with >90% performance at 10 years and >80% performance after 20 years.
Enhanced Temperature Stability: Maintains optimal efficiency and output even in high-temperature operating conditions.
Built for Tough Conditions: Features a sturdy 30mm anodized aluminum frame and tempered anti-reflective glass. Resistant to PID, salt mist, and ammonia.

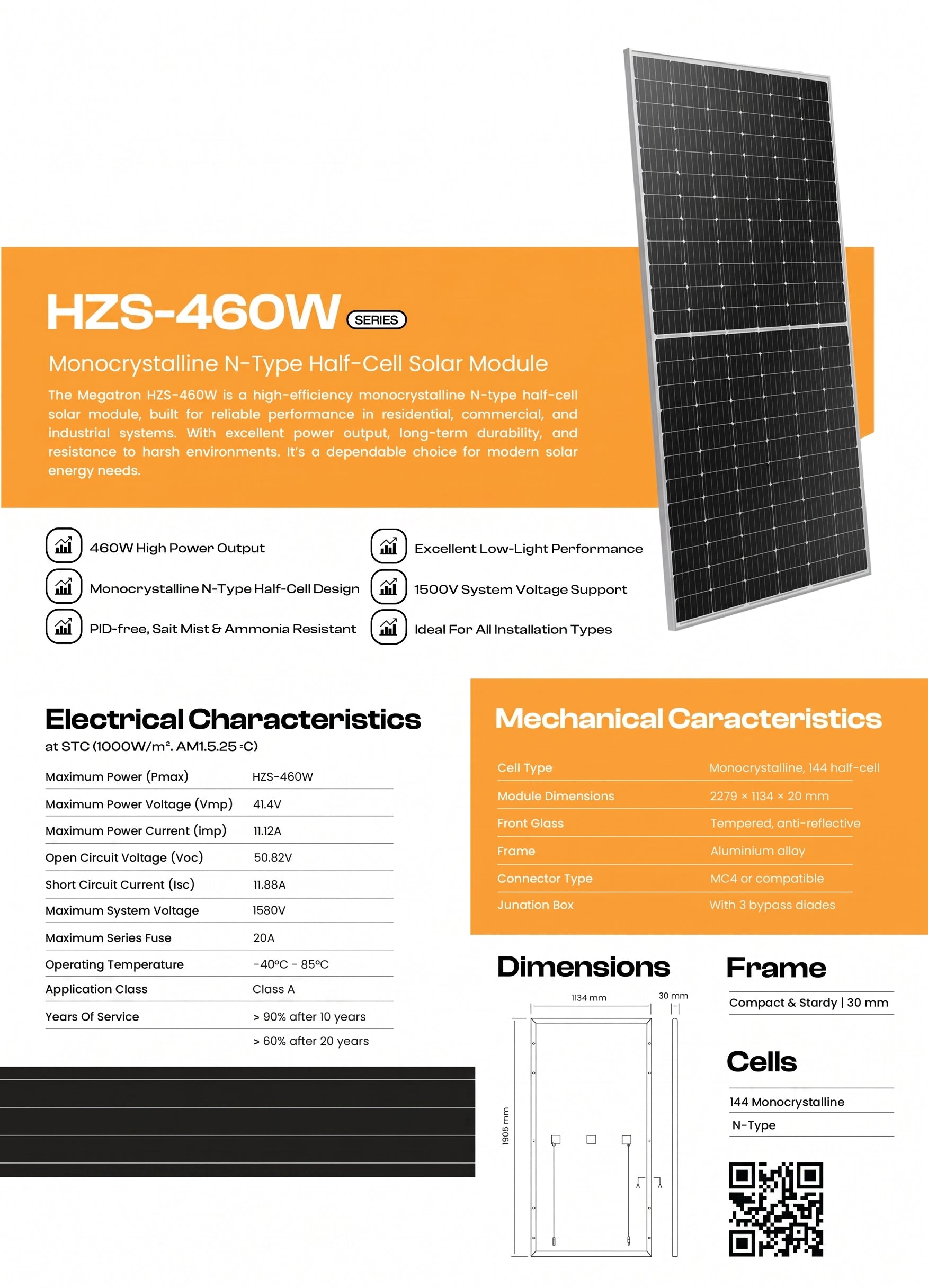

Technical Specifications
Electrical Characteristics (STC: 1000W/m², AM1.5, 25°C)
Maximum Power (Pmax): 460W
Maximum Power Voltage (Vmp): 41.4V
Maximum Power Current (Imp): 11.12A
Open Circuit Voltage (Voc): 50.92V
Short Circuit Current (Isc): 11.89A
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 20A
Operating Temperature: -40°C to +85°C
Application Class: Class A
Mechanical Specifications
Cell Type: N-Type Monocrystalline (144 Half-Cells)
Dimensions: 1909 mm × 1134 mm × 30 mm
Front Glass: Tempered, anti-reflective coated glass
Frame: Anodized aluminum alloy (30mm)
Junction Box: Weatherproof with 3 bypass diodes
Connector Type: MC4 / MC4 Compatible
