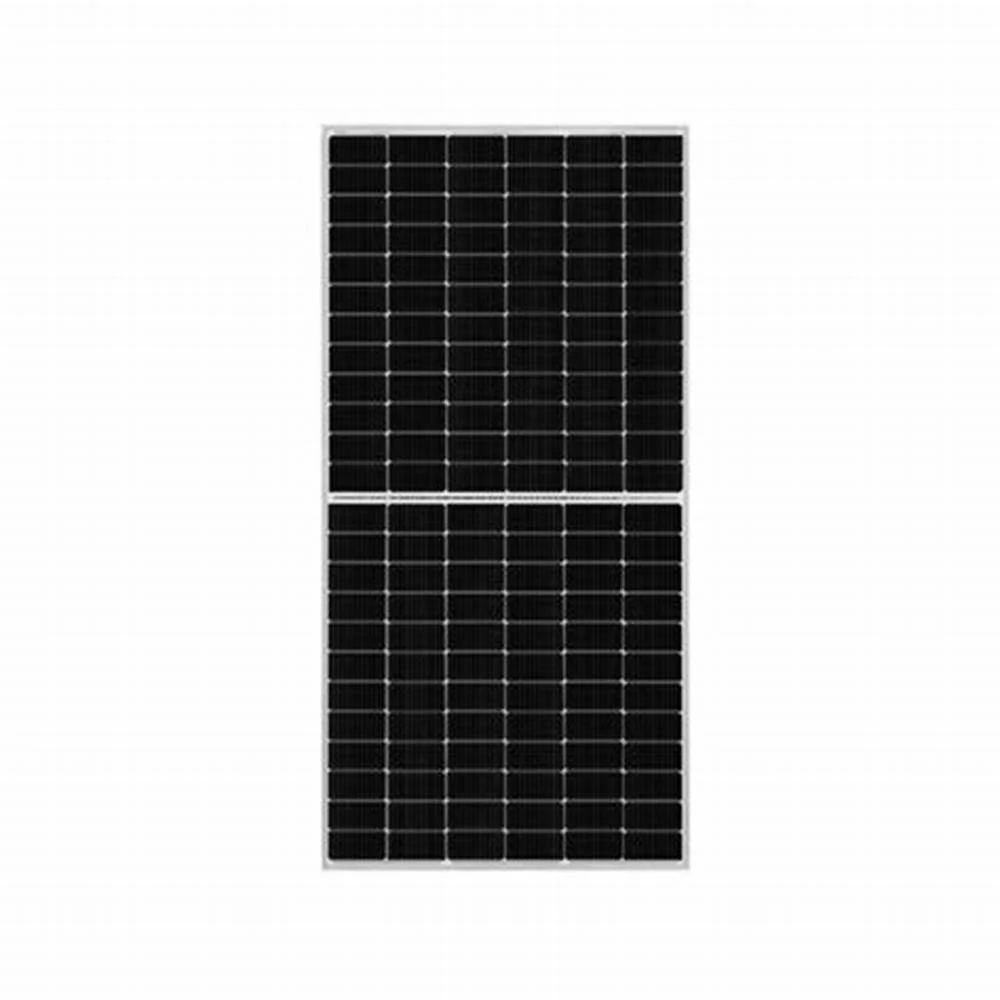

SMTE 550W Monocrystalline N-Type Half-Cell Solar Panel
SMTE 550W Monocrystalline N-Type Half-Cell Solar Panel
Power your home, business, or industrial facility with our 550W Monocrystalline N-Type Half-Cell Solar Panel. Engineered with 144 Grade-A monocrystalline half-cells and cutting-edge N-Type technology, this high-performance module delivers exceptional power density, minimized internal resistance, and maximum energy generation—even in low-light and harsh weather conditions.
Key Features & Benefits
550W High-Density Power Output: Delivers maximum energy yield per square meter for residential, commercial, and utility installations.
Next-Gen N-Type Cell Technology: Significantly reduces Light-Induced Degradation (LID) and LeTID attenuation to ensure long-term energy retention.
Outstanding Low-Light Performance: Captures and converts sunlight efficiently during overcast days, early mornings, and late afternoons.
144 Half-Cell Layout: Lowers internal resistive losses and mitigates power drops caused by partial shading or debris.
High System Voltage Compatible: Certified for up to 1500V DC systems, enabling longer string designs and lower balance-of-system (BOS) costs.
Heavy-Duty Weatherproof Build: Features a 30 mm silver anodized aluminum frame, Grade-A black cells, and a durable white backsheet built to handle extreme temperatures (-40°C to +85°C).

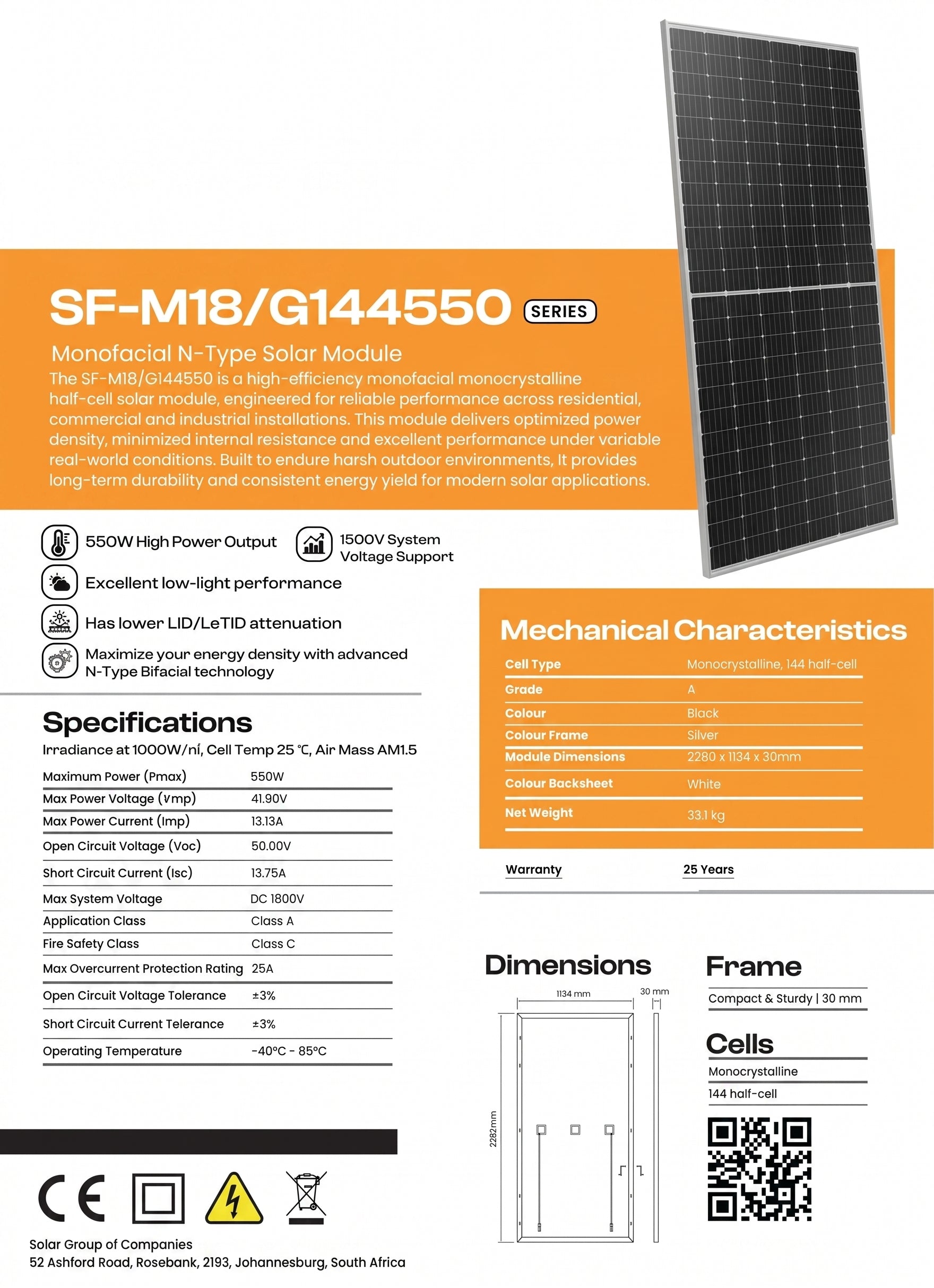

Technical Specifications
Electrical Characteristics (STC: 1000W/m², AM1.5, 25°C)
Maximum Power (Pmax): 550W
Maximum Power Voltage (Vmp): 41.90V
Maximum Power Current (Imp): 13.13A
Open Circuit Voltage (Voc): 50.00V
Short Circuit Current (Isc): 13.75A
Maximum System Voltage: 1500V DC (Tested up to 1800V DC)
Maximum Overcurrent Protection Rating: 25A
Operating Temperature: -40°C to +85°C
Application / Fire Safety Class: Class A / Class C
Tolerance (Voc / Isc): ±3%
Mechanical Specifications
Cell Type: Grade-A Monocrystalline N-Type (144 Half-Cells)
Cell Color: Black
Backsheet Color: White
Dimensions: 2280 mm × 1134 mm × 30 mm
Net Weight: 33.1 kg
Frame: 30 mm Silver Anodized Aluminum Alloy
Warranty: 25-Year Manufacturer Warranty
