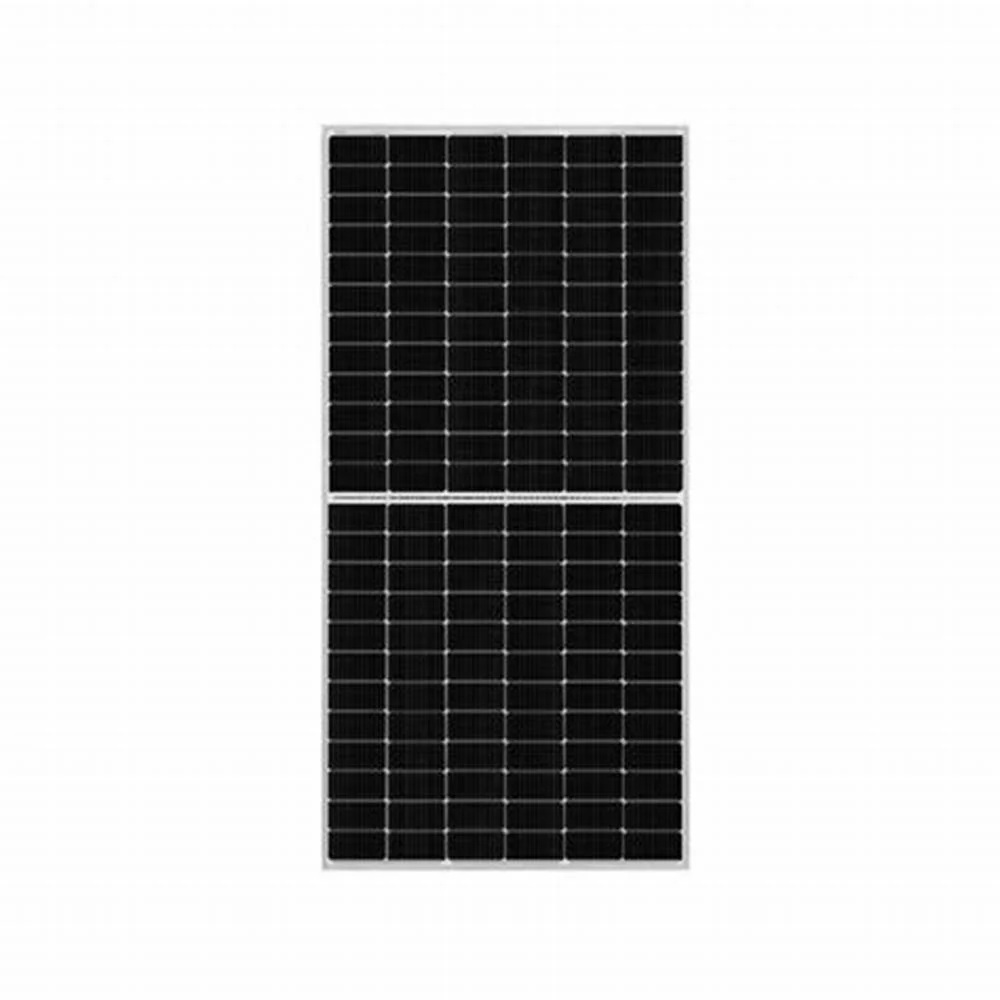

SMTE 625W Bifacial Monocrystalline N-Type Solar Panel
SMTE 625W Bifacial Monocrystalline N-Type Solar Panel

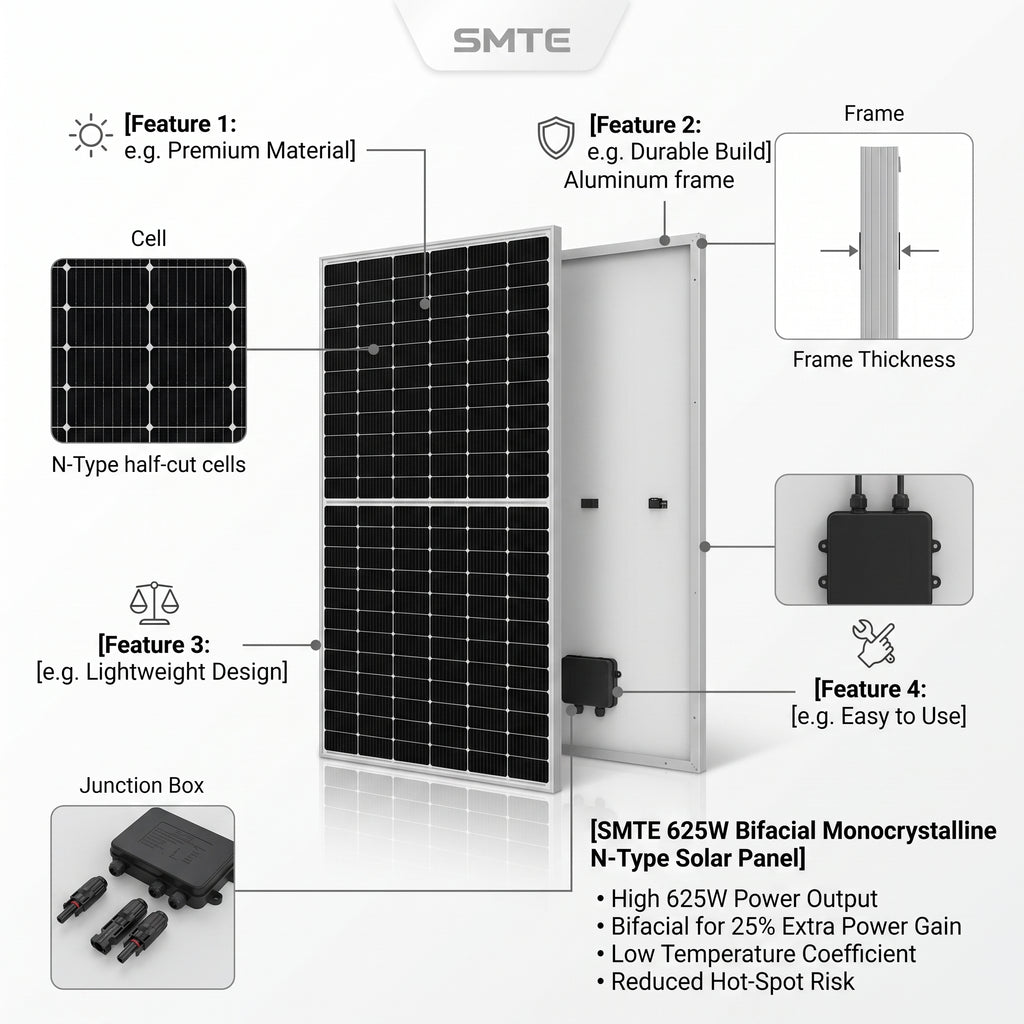

Designed for high-performance residential, commercial, and utility installations, the 625W Bifacial Monocrystalline N-Type Half-Cell Solar Panel delivers exceptional power yield. Utilizing dual-glass bifacial architecture and premium N-Type half-cut cells, this module absorbs direct sunlight from the front while capturing ground-reflected albedo light from the rear to maximize overall energy production.
Key Features & Benefits
Dual-Glass Bifacial Generation: Produces energy from both sides, capturing ground-reflected light to deliver up to 25% additional power yield.
N-Type Half-Cut Cells: Offers higher conversion efficiency, eliminates Light-Induced Degradation (LID), and enhances low-light energy capture.
144 Half-Cell Layout: Lowers internal resistance, reduces hotspot risk, and minimizes power loss during partial shading.
Optimized Temperature Performance: Maintains stable energy output even in extreme heat and demanding outdoor conditions.
Heavy-Duty Weather & PID Resistance: Equipped with dual semi-tempered glass and an anodized aluminum frame to withstand severe environmental stress, salt mist, ammonia, and high wind/snow loads.
Long-Term Reliability: Engineered for low annual degradation to ensure consistent performance over a 30-year operational design life.
Technical Specifications
Electrical Characteristics (STC: 1000W/m², AM1.5, 25°C)
Maximum Power (Pmax): 625W
Maximum Power Voltage (Vmp): 45.45V
Maximum Power Current (Imp): 13.76A
Open Circuit Voltage (Voc): 54.30V
Short Circuit Current (Isc): 14.55A
Module Efficiency: Up to 23.1%
Bifaciality Factor: 80% (±5%)
Maximum System Voltage: 1500V DC
Maximum Series Fuse Rating: 30A
Operating Temperature: -40°C to +85°C
Application Class: Class A
Mechanical Specifications
Cell Type: N-Type Monocrystalline (144 Half-Cells)
Dimensions: 2382 mm × 1134 mm × 30 mm
Weight: ~33.5 kg
Glass: 2.0 mm / 2.0 mm Dual Semi-Tempered Glass
Frame: 30 mm Silver Anodized Aluminum Alloy
Junction Box: IP68 Weatherproof with 3 Bypass Diodes
Connector Type: MC4 / MC4-EVO2 Compatible
